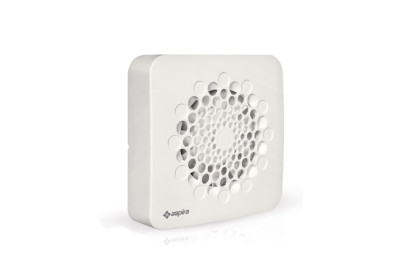

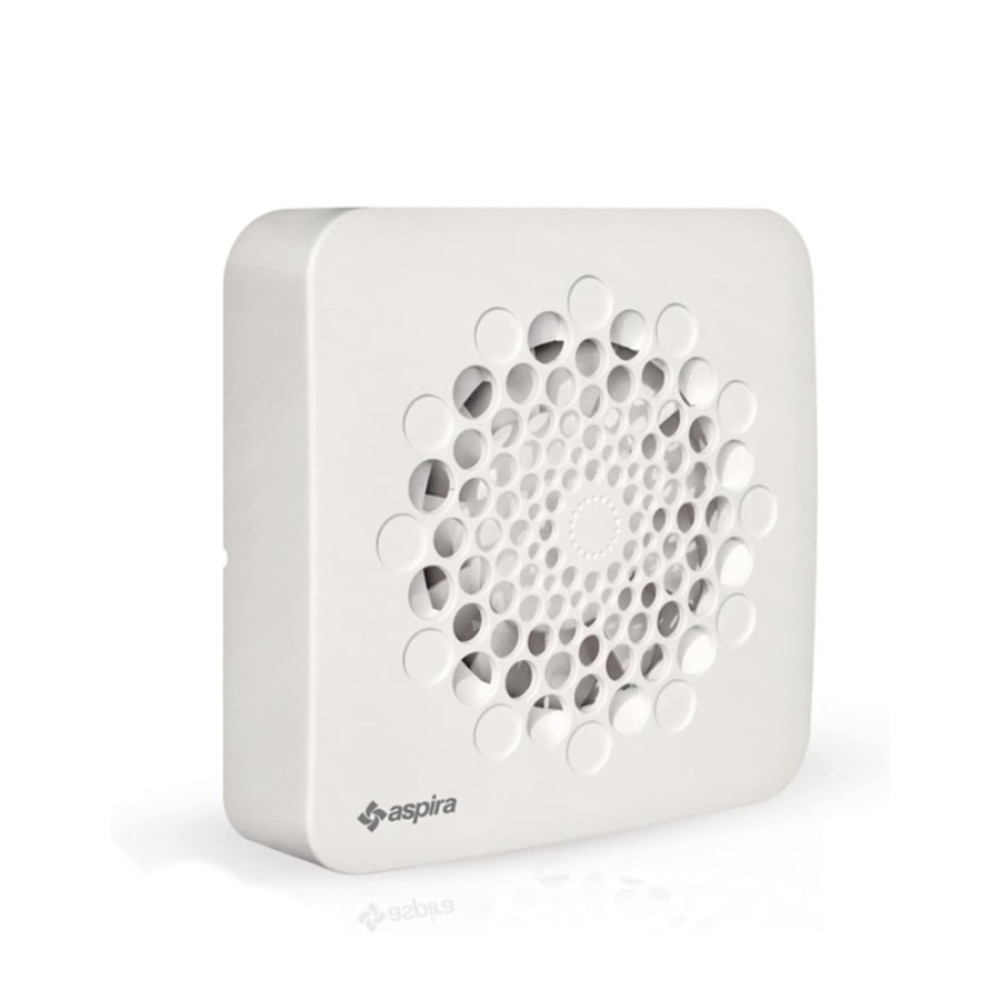

Helical Aspirator with Humidistat and Timer - Fantini Cosmi Aspirante 3104 for hole Ø 80 100 120 (mm)
Fantini Cosmi helical extractors are the ideal solution for air exchange in bathrooms, kitchens, laundries and offices. Thanks to their modern design, they can be easily integrated into any residential and commercial context.
This
3104 extractor version is equipped with a humidistat and timer, for automatic, efficient and silent ventilation.
Main features - 3104 helical aspirator
- Automatic humidity control : activates when the set humidity level is exceeded (adjustable from 40% to 80% RH);
- Built-in timer : After turning off, it continues to work for 45 seconds up to 20 minutes (adjustable);
- Manual operation available with timer only;
- Versatile mounting : can be installed on walls, ceilings or glass (with dedicated kit);
- Compatible with holes Ø 80, 100, 120 mm (adapter included);
- Small footprint at the rear , ideal for close bends in the duct;
- Silent induction motor , protected by thermal fuse;
- Body in anti-UV and anti-static ABS;
- Max. ambient temperature: 45°C.

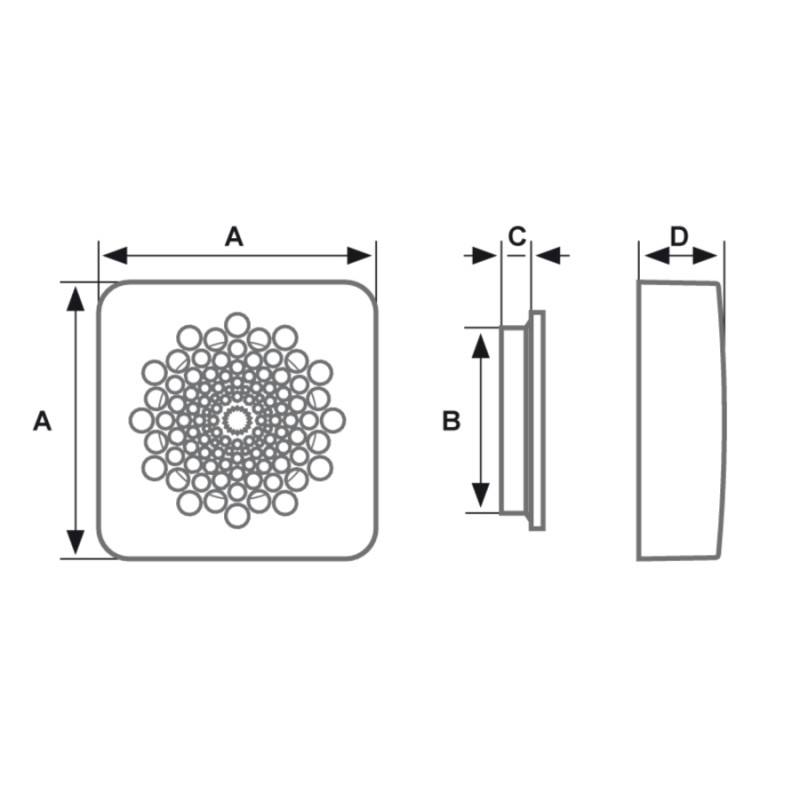

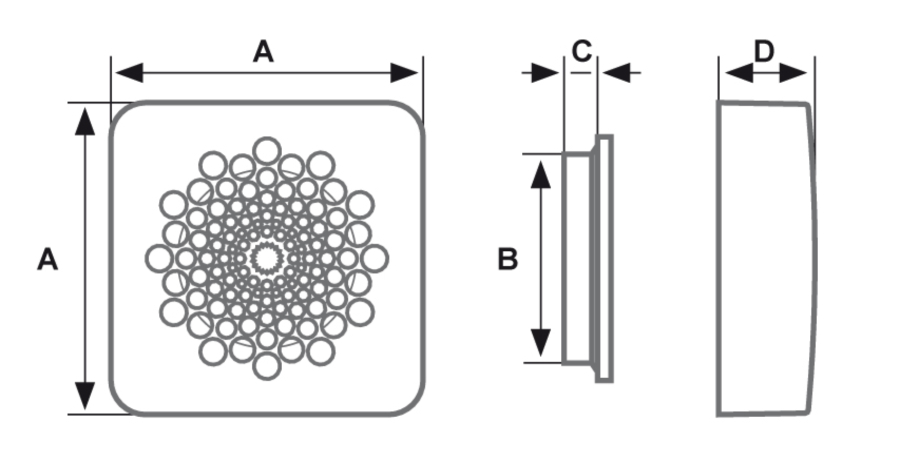

Aspirator dimensions (in mm)
- A (width/height): 180
- B (installation hole): Ø80, Ø100, Ø120
- C (recess depth): 19
- D (total depth): 57
Package Contents
- Helical aspirator 3104;

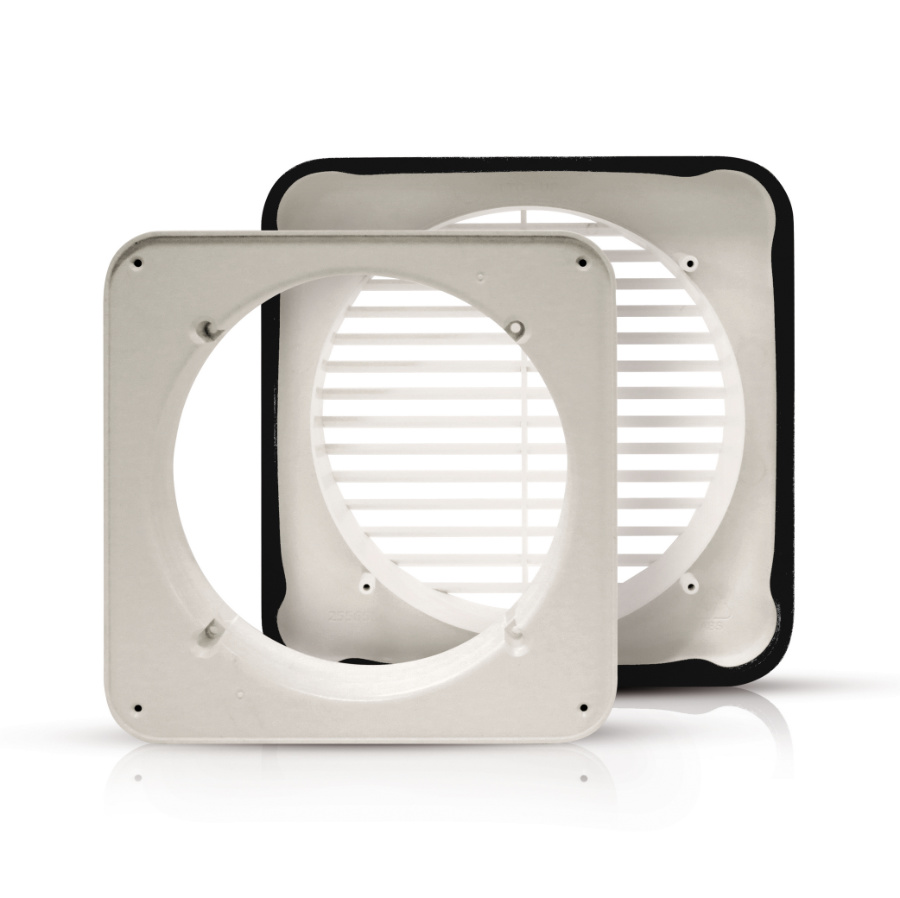

- 80/100/120 mm diameter adapter kit;
- User and installation manual.
Recommended Applications
- Blind bathrooms;
- Kitchens and laundries;
- Offices or internal rooms with high humidity.
