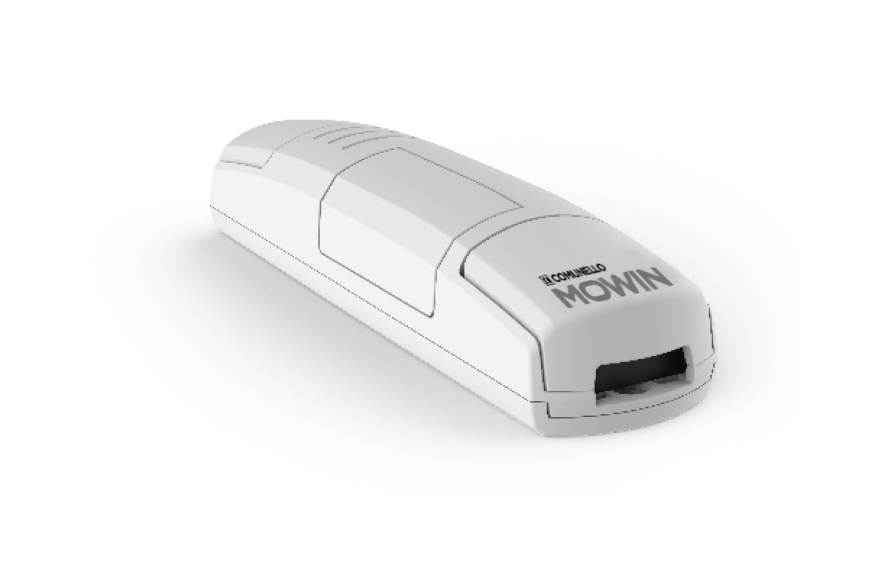

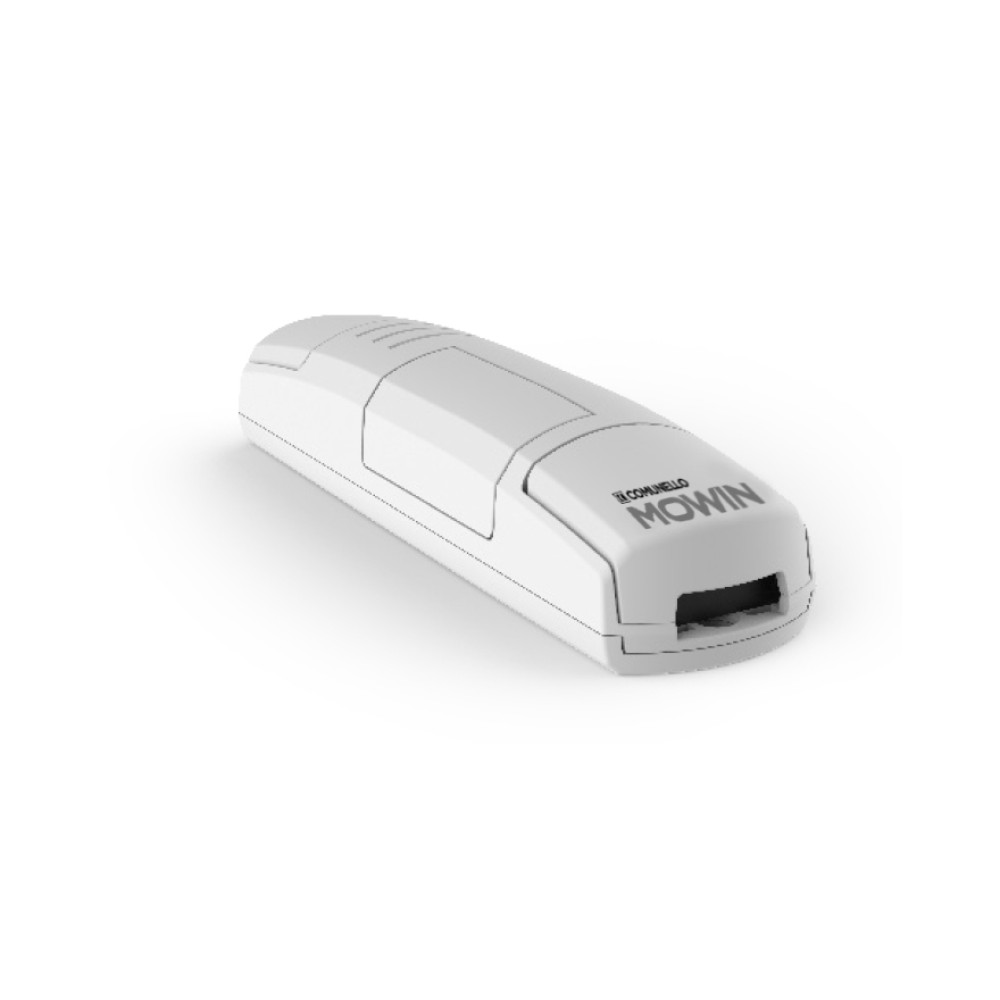

Comunello AF 850 Control Unit 110-240 V Wi-Fi
The
Comunello AF 850 is an
advanced control unit with integrated Wi-Fi, designed to control 230 Vac actuators and motors via the OneSMART App, radio control, wired button or voice command.
It is the ideal solution for the automation of windows, skylights and motorized doors, both in residential and professional settings, with local and remote management.
Thanks to the
integrated 2.4 GHz Wi-Fi module, the control unit allows control from smartphones and tablets and integration with voice assistants such as Google Home and Amazon Alexa.
Main features of the Comunello AF 850
The AF 850 control unit
allows the control of up to 4 230 Vac actuators , each with a maximum power of 500 W, and is compatible with 3-wire motors with limit switches.
It has
3 programmable wired inputs , configurable as step-by-step control, deadman, or for connecting weather sensors. The management of the Open / Stop / Close functions is completely customizable.
The
integrated 433.92 MHz radio receiver allows you to store up to 30 transmitters, while remote control is via the OneSMART App, even when you're away from home.
The control unit is
designed to connect wired weather sensors (wind, rain, sun). In the event of multiple simultaneous events, the system applies a priority logic to ensure maximum actuator safety.
The Comunello AF 850 is
Made in Italy and complies with current European Directives , with CE certification and compliance with the RED Directive 2014/53/EU.

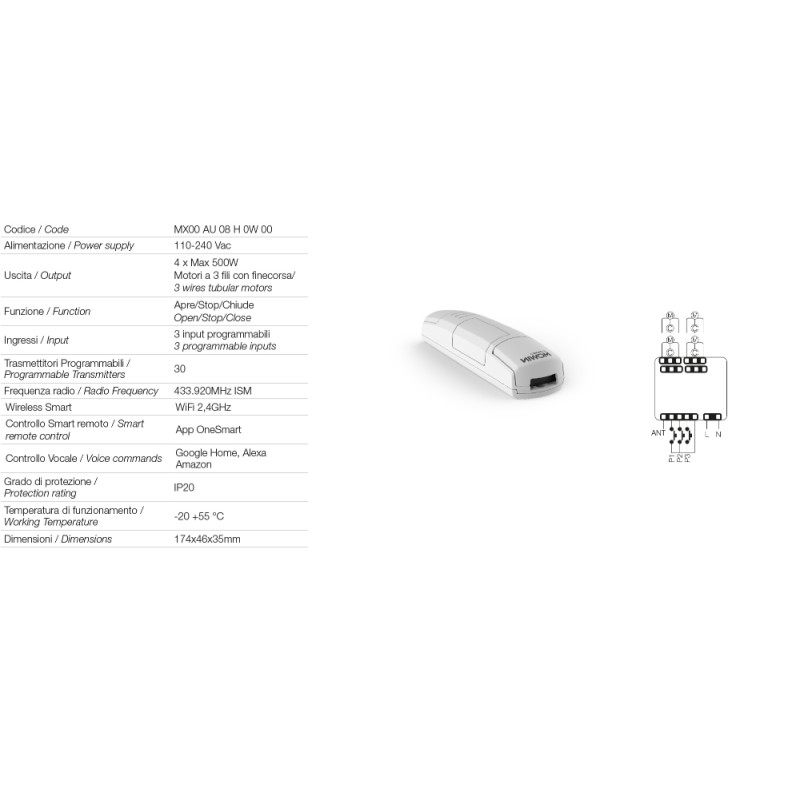

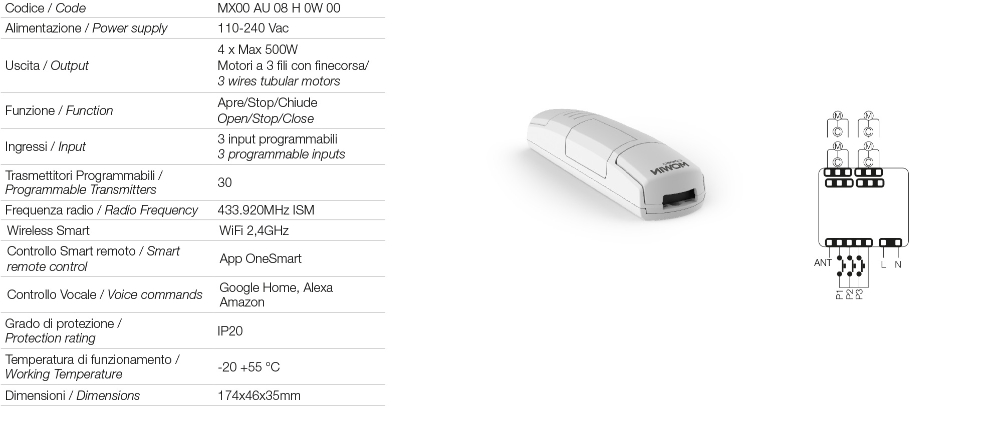

Technical data of the Comunello AF 850 control unit
- Power supply: 110–240 Vac;
- Outputs: 4 × max 500 W for 230 Vac actuators;
- Motor type: 3-wire motors with limit switches;
- Functions: Open / Stop / Close;
- Wired inputs: 3 programmable;
- Memorable transmitters: up to 30;
- Radio frequency: 433.92 MHz ISM;
- Wireless connection: Wi-Fi 2.4 GHz;
- Degree of protection: IP20;
- Operating temperature: –20 °C / +55 °C;
- Dimensions: 174 × 46 × 35 mm.
