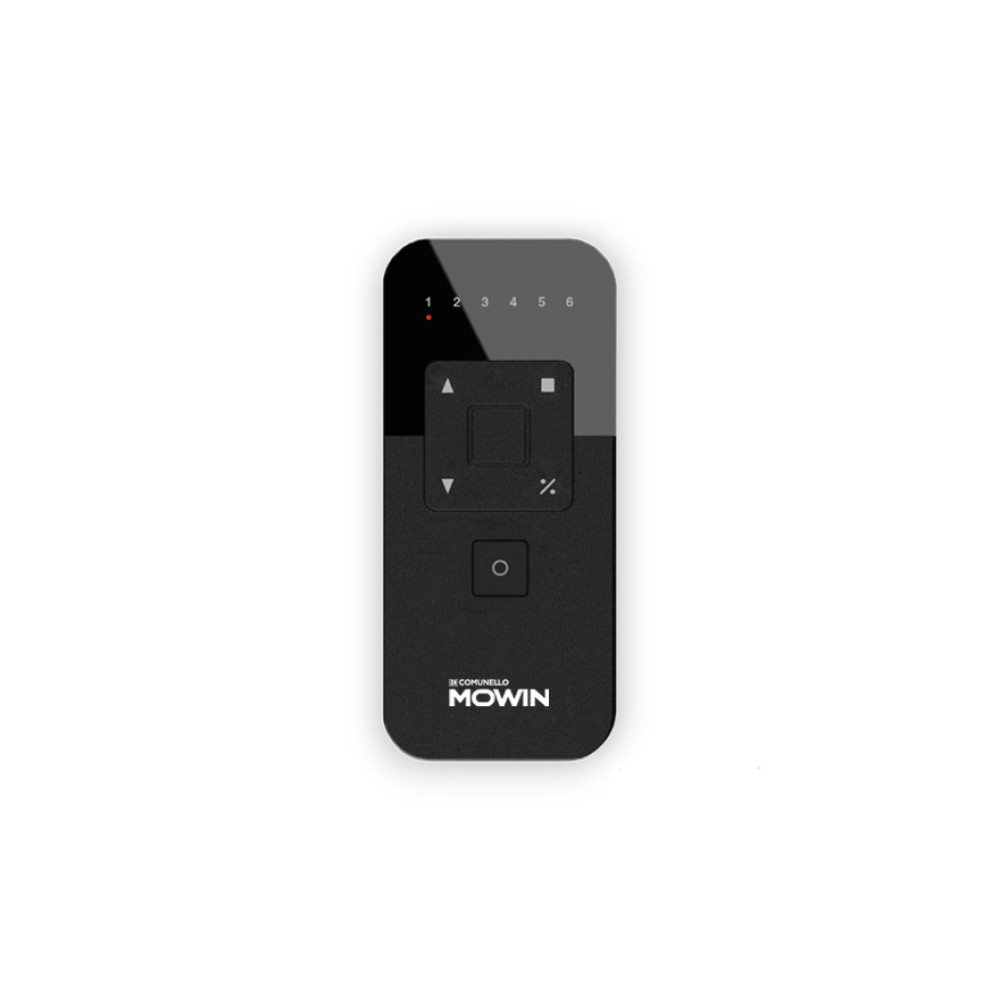

Comunello AF 890 Radio Control with 6 Channels for Electric Actuators
6-channel radio remote control designed for the control of
Comunello actuators and automation systems.
Secure transmission with
433.92 MHz rolling code technology and quick channel selection via dedicated button.
Command sequence:
open → stop → close → partial opening
Compact, intuitive design and complete with wall bracket for a tidy installation.

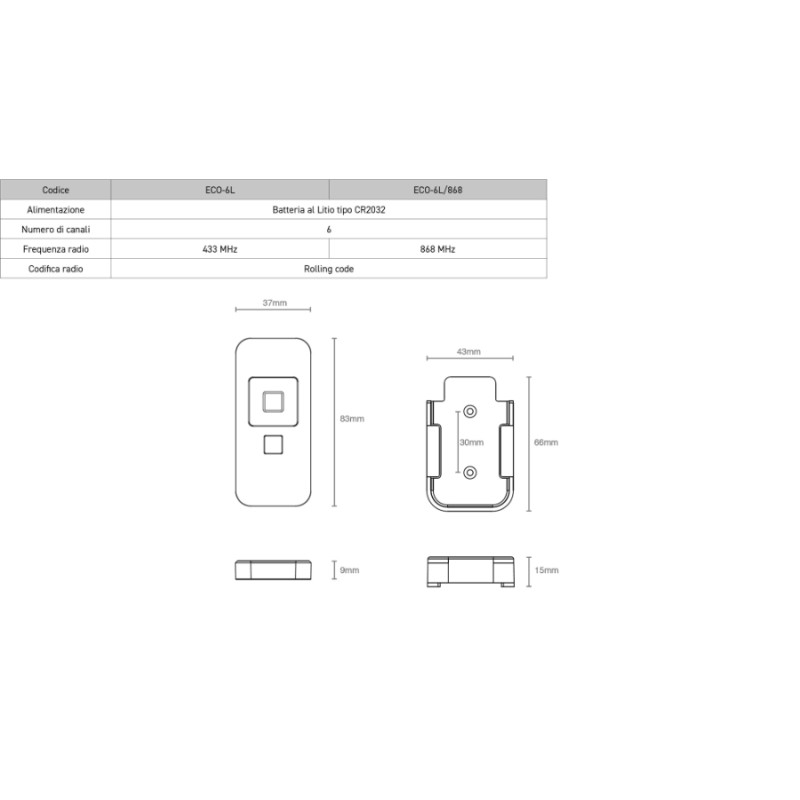

Technical features of the Comunello AF 890 radio control
- Power supply: CR2032 battery;
- radio frequency: 433.92 MHz;
- coding: rolling code;
- nominal range: up to 100 m;
- channels: 6;
- functions: open / stop / close / partial opening;
- channel selection via dedicated button;
- wall mount included.

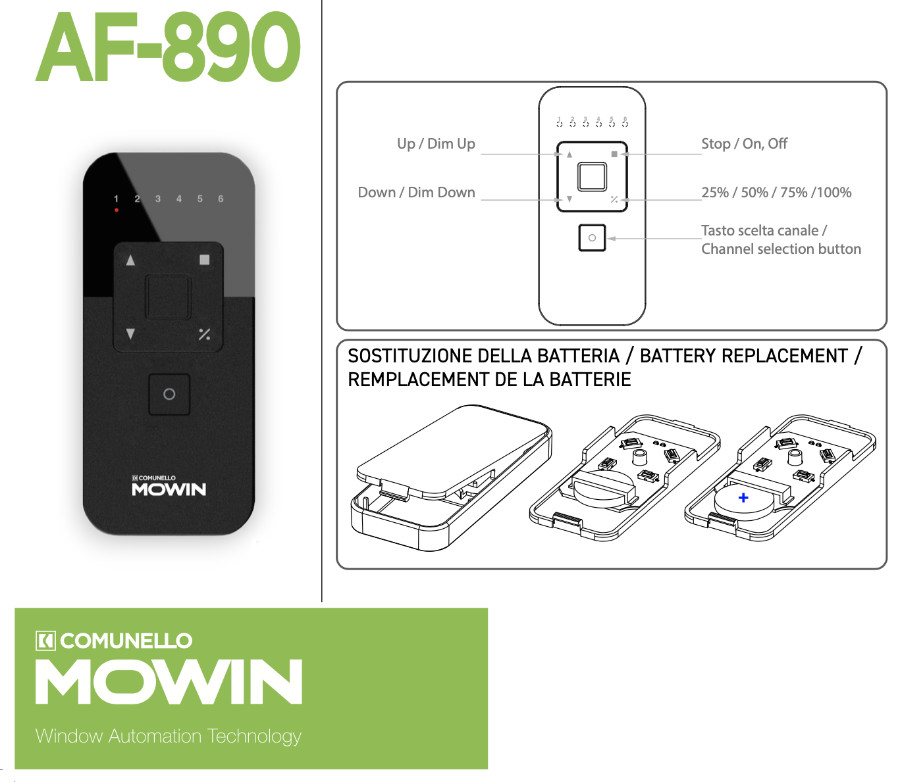

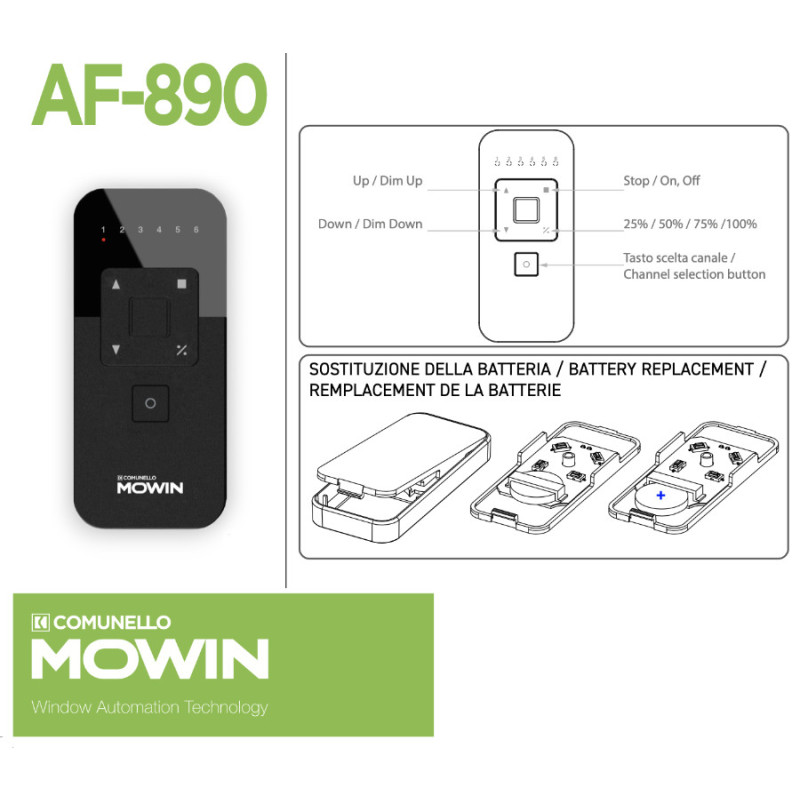

Transmitter programming
Requirement: Access to the receiver programming buttons.
- activate the receiver on which you want to program the transmitter (see the receiver manual);
- use the “circle” button to select the channel to be associated;
- send a command, for example with the “square” key.
