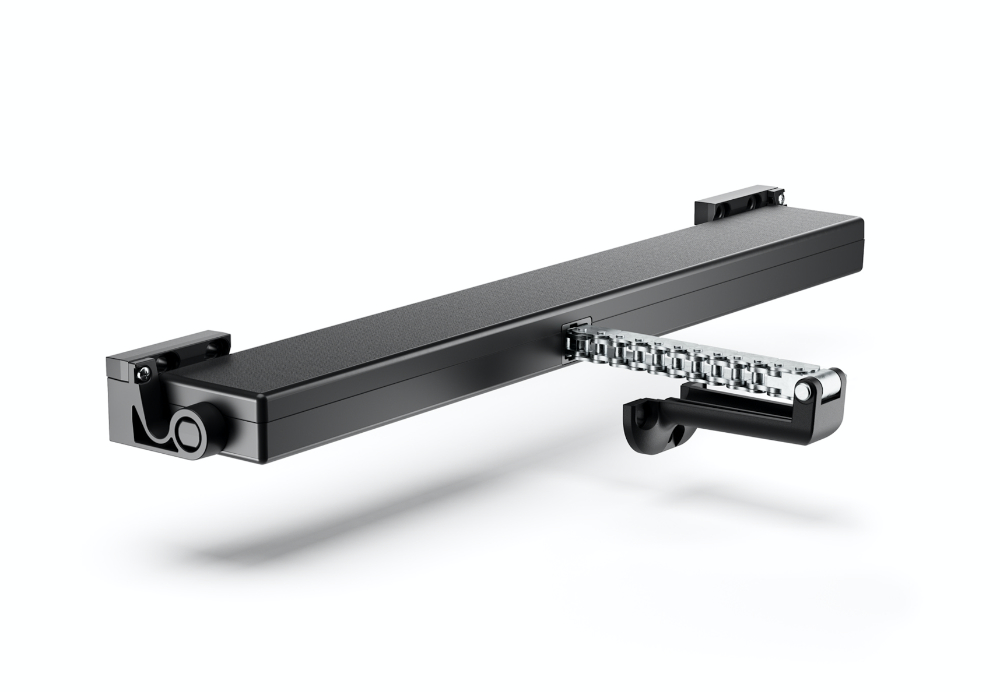

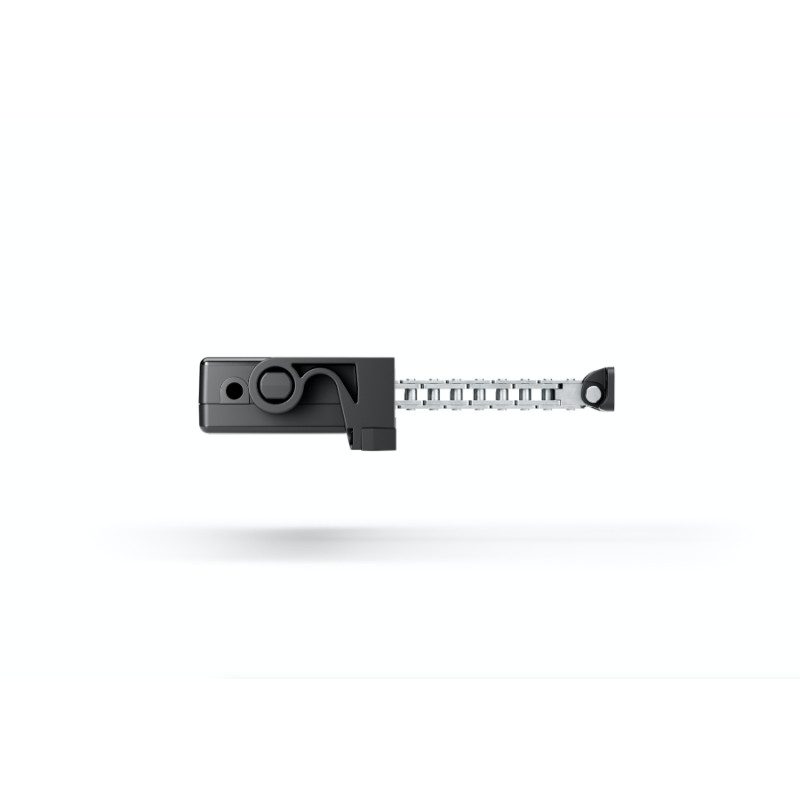

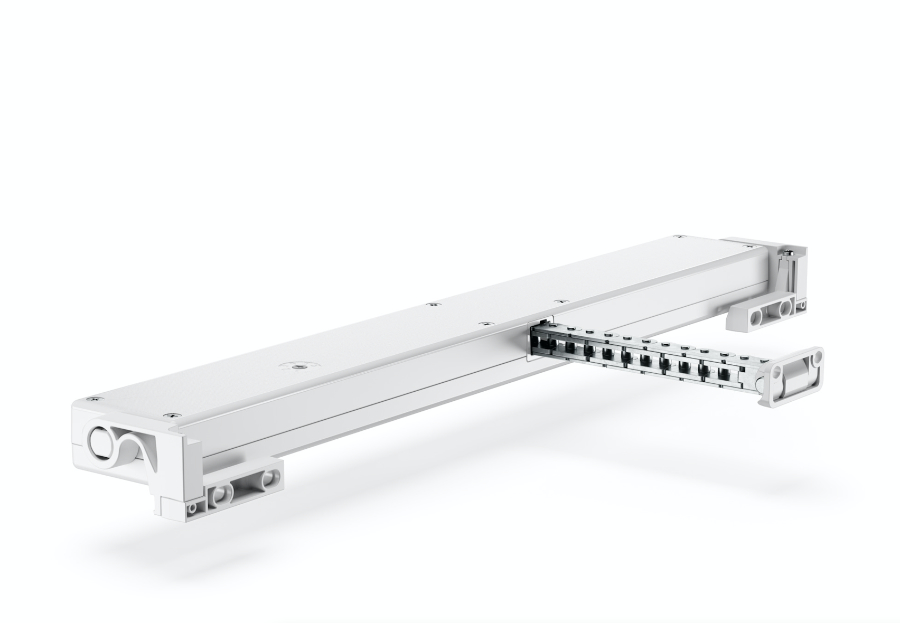

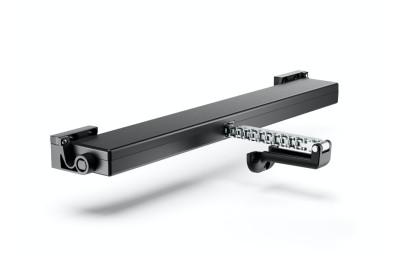

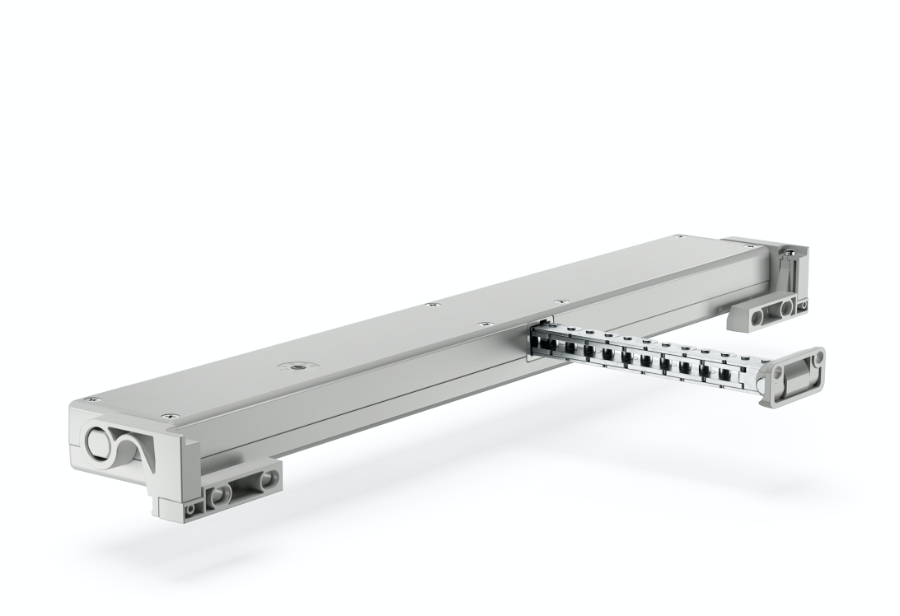

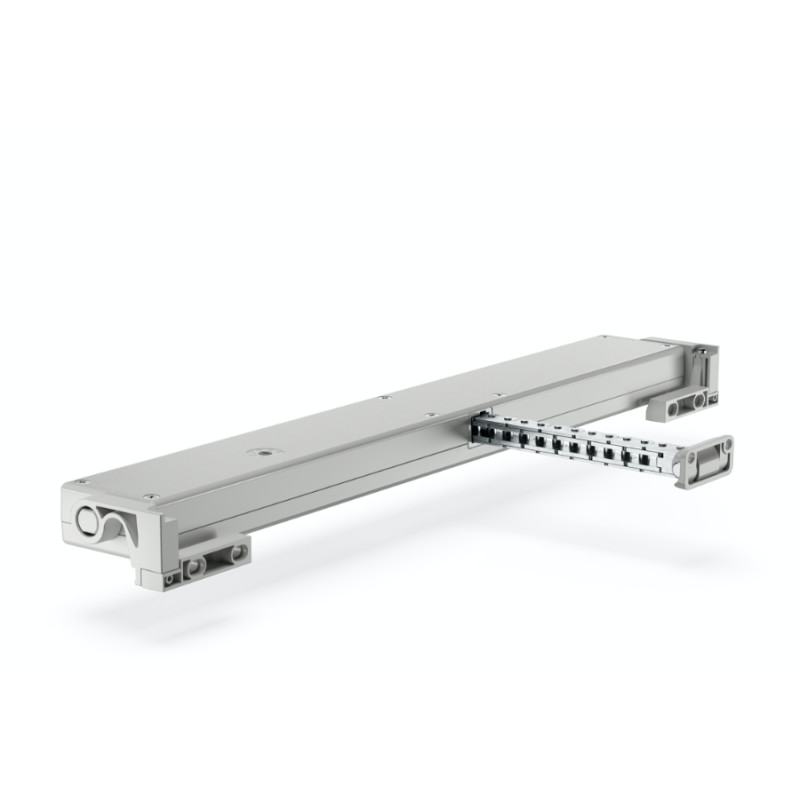

Comunello LIWIN L35 Slim or LIWIN L35 Slim Wi-Fi actuator

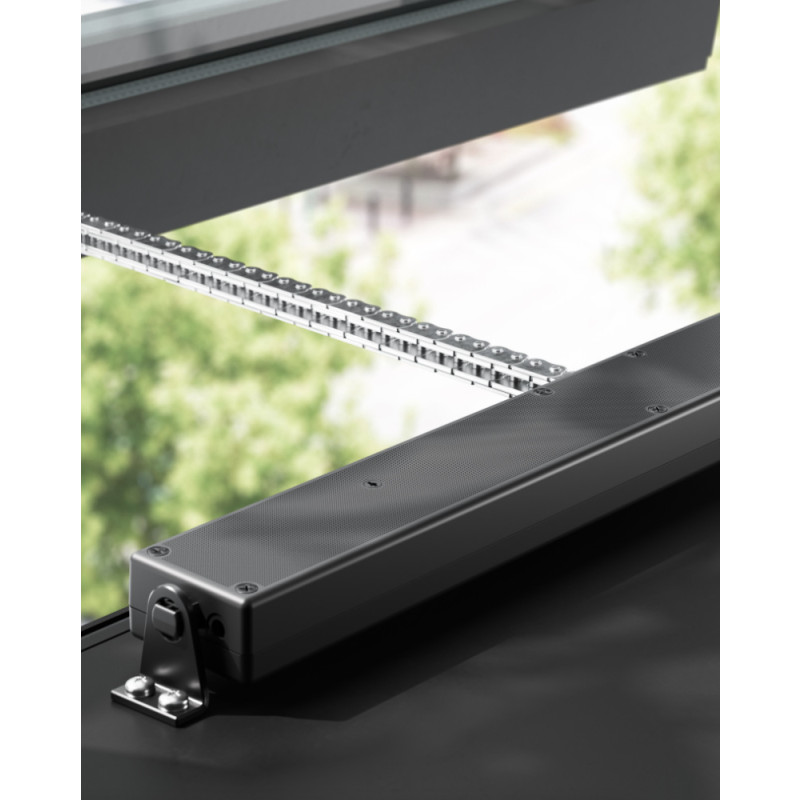

COMUNELLO LIWIN L35 Slim is an
electromechanical chain actuator designed for the automation of windows and doors even in very limited spaces, thanks to its reduced thickness of just 27 mm.
The

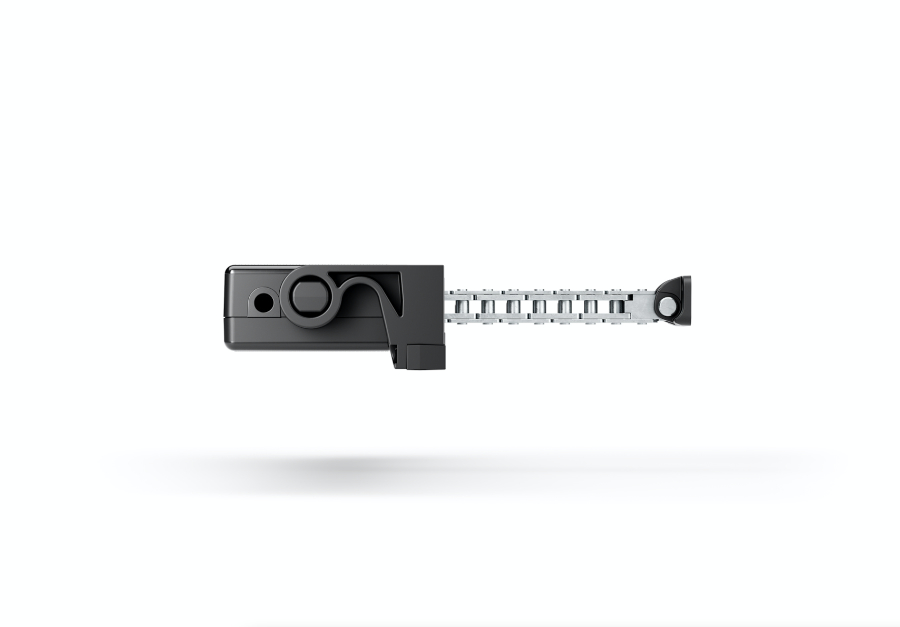

double-link chain with increased thickness guarantees high resistance and optimal transmission of force both in push and pull.
The
LIWIN L35 Slim Wi-Fi version integrates the new intelligent interconnection technology that allows advanced parameter adjustment, synchronization of multiple actuators and real-time diagnostics via the dedicated Mowin App.
Comunello LIWIN L35 Slim actuator applications
Chain actuator for opening and closing windows in:
- wood;
- PVC;
- aluminum;
- steel.
Compatible with:
- vasistas;
- to protrude;
- knocker;
- parallel opening;
- shed;
- skylights;
- domes.
Wi-Fi Technology and Mowin App
The
Wi-Fi version allows you to:
- adjust chain speed and stroke with millimetre precision up to 400 mm;

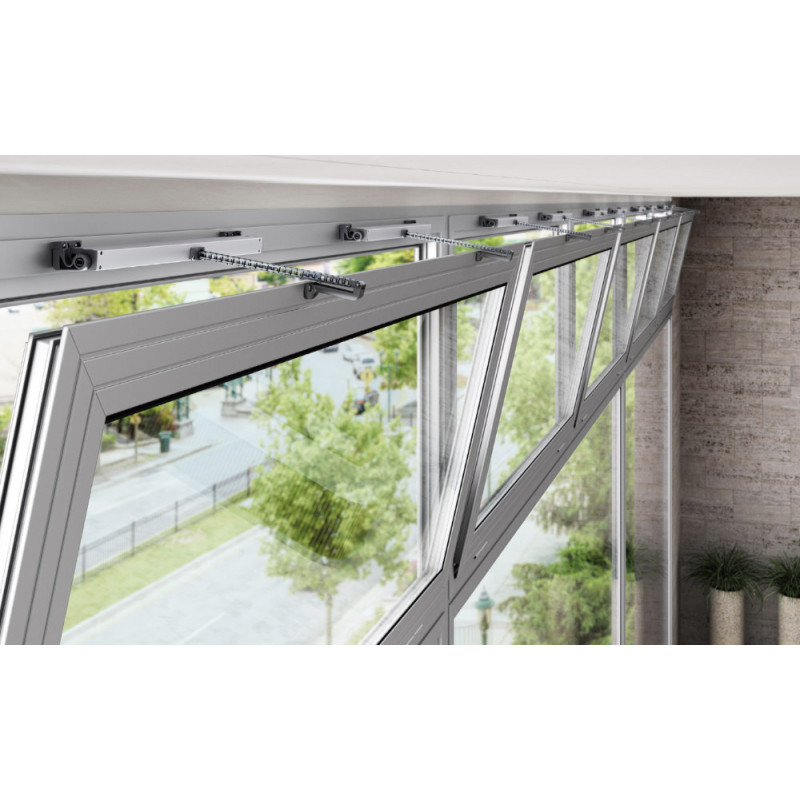

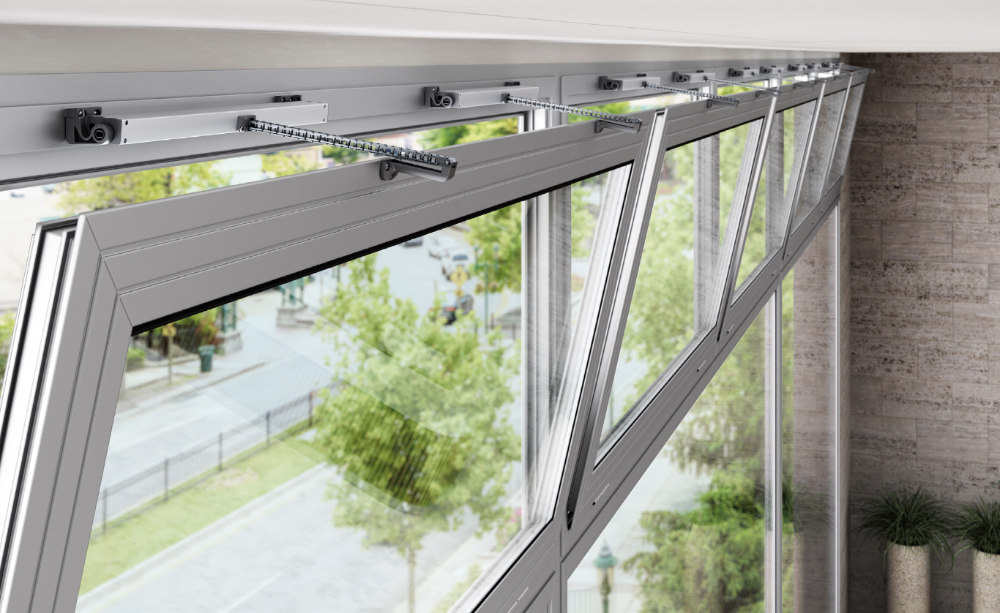

- synchronize up to 8 actuators on the same window or on systems requiring high force;
- perform real-time diagnostics and consult the history of maneuvers;
- quickly identify any anomalies.
Synchronization occurs via QR Code , without the need for interface cards or wired connections between the actuators.

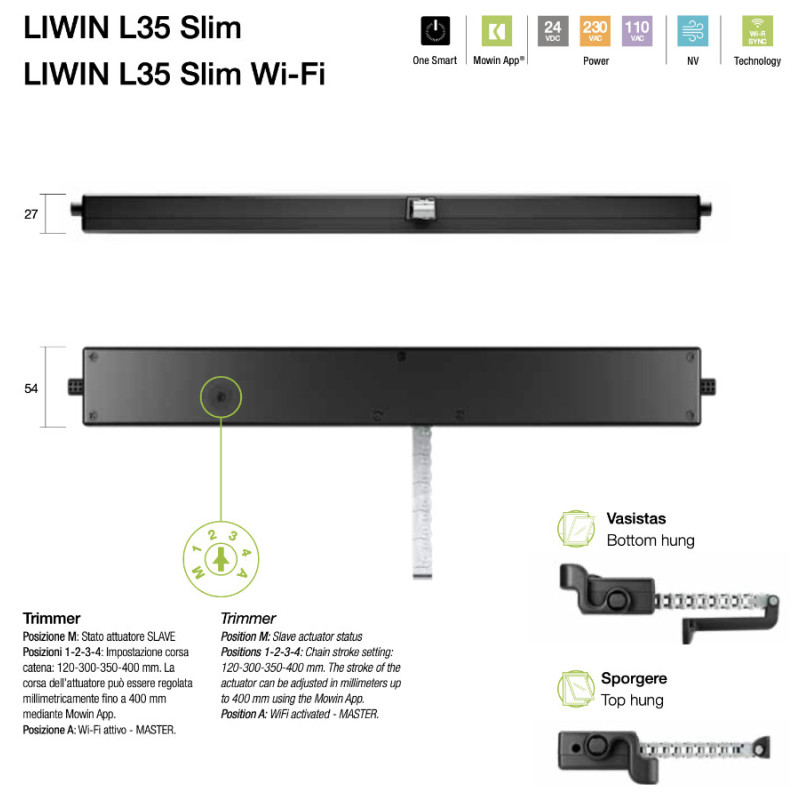

Configuration trimmer
- Position M: actuator in SLAVE state;
- Positions 1-2-3-4: default chain stroke setting 120 / 300 / 350 / 400 mm;
- fine adjustment of the stroke possible via Mowin App;
- Position A: Wi-Fi active – MASTER actuator.
Features of the COMUNELLO LIWIN L35 Slim window motor
- Push and pull force: 350 N for single actuator;
- Total synchronized force: up to 1960 N;
- QRCode Sync: synchronization, adjustments, recording and diagnostics via QR scanning;

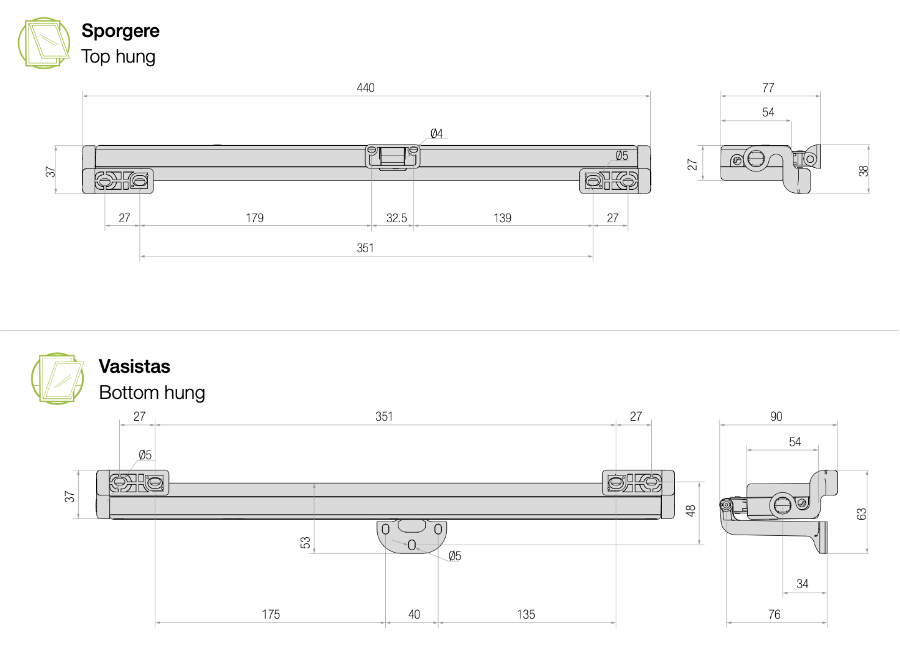

- Easy installation: reduced thickness and dedicated brackets for limited spaces;
- Double link chain: sturdy and durable;
- Wi-Fi Interconnectivity: complete configuration and synchronization of up to 8 actuators;
- Advanced diagnostics: via app and integrated fault signalling LED.

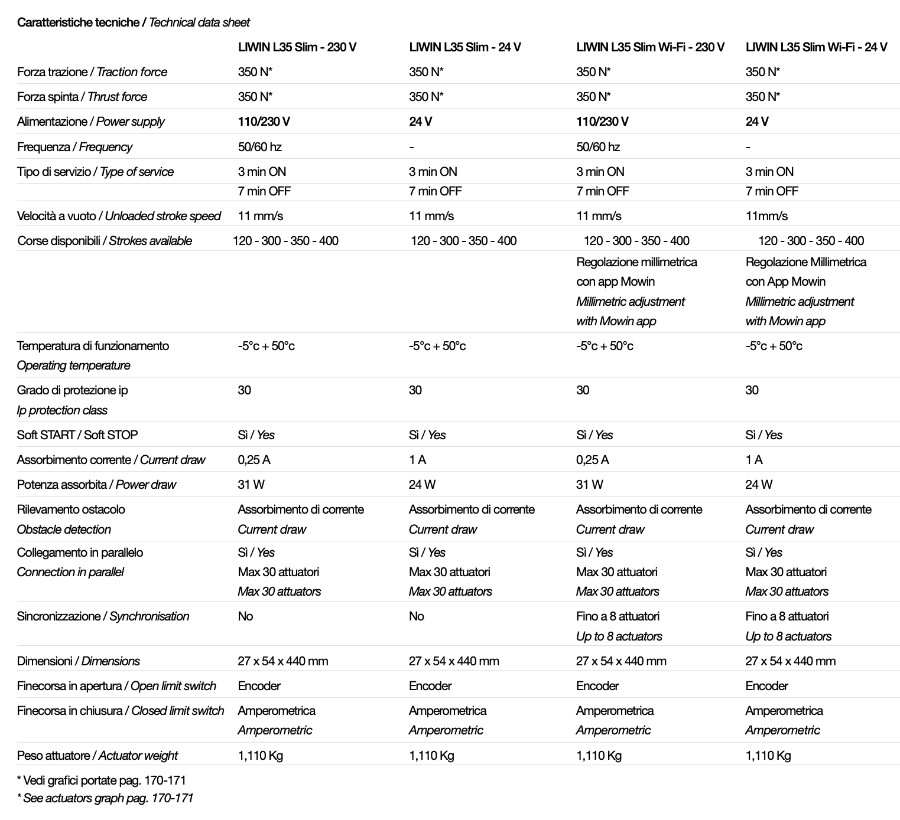

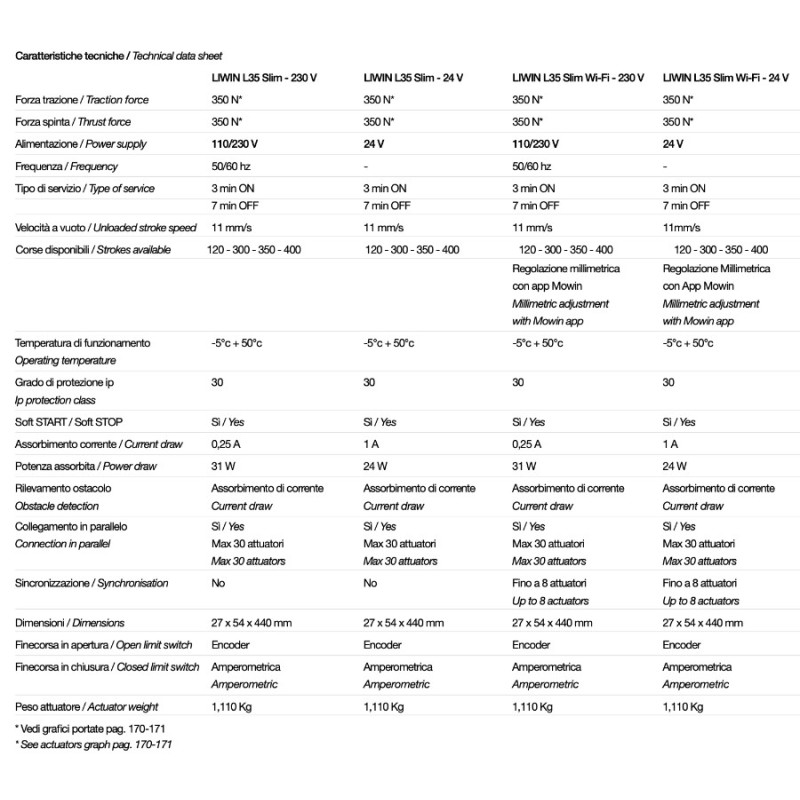

Technical data of the LIWIN L35 Slim actuator
- Thickness: 27 mm;
- Force: 350 N (push/pull);
- Available strokes: 120 – 300 – 350 – 400 mm;
- Stroke adjustment: millimetric with Mowin App;
- No-load speed: 12.7 mm/s;
- Operating temperature: -5°C to +50°C;
- Degree of protection: IP30;
- Soft Start / Soft Stop: yes;
- Actuator weight: about 1.2 kg;
- Service: 3 min ON / 7 min OFF.
Package Contents
- LIWIN L35 Slim actuator;

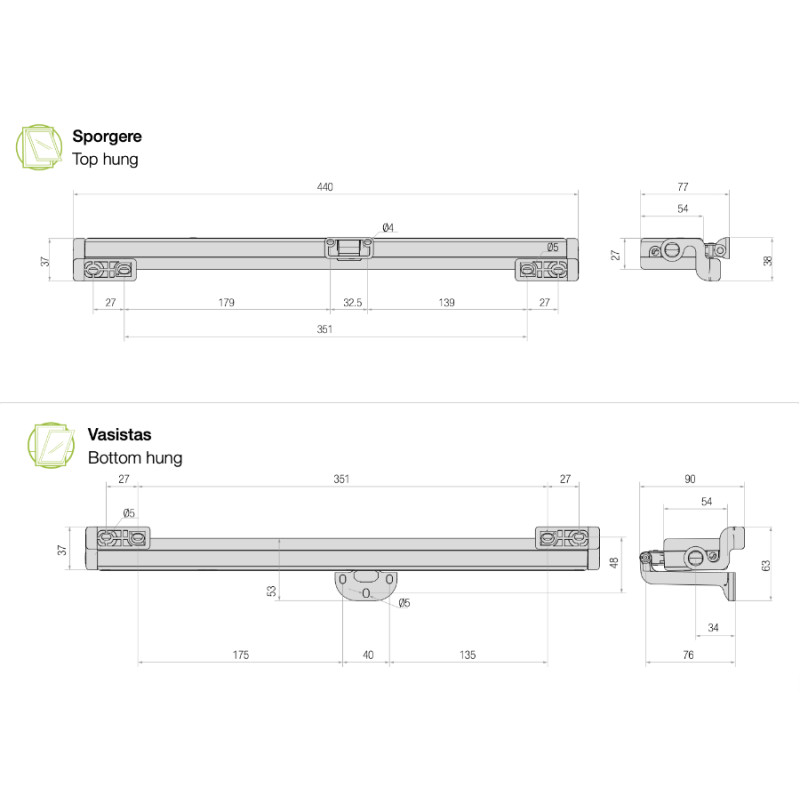

- brackets for installing vasistas;
- bracket for protruding installation;
- support brackets;
- installation template;
- user manual.
Select the variants you want
During the purchase you can select:
- color : black, gray, white, ivory;
- power supply : 24V; 230V;
- version : standard; Wi-Fi.
