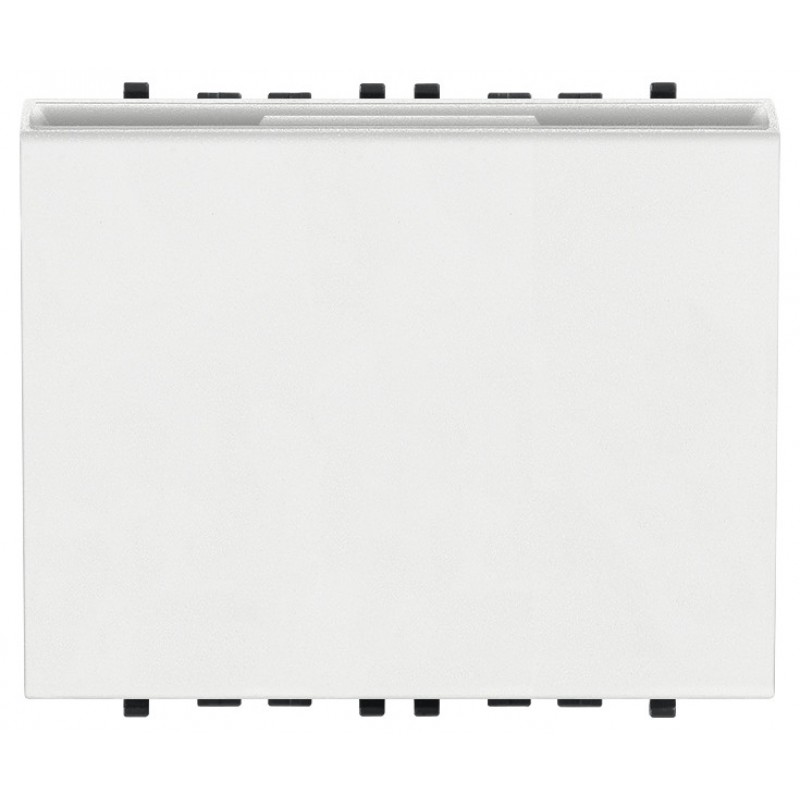

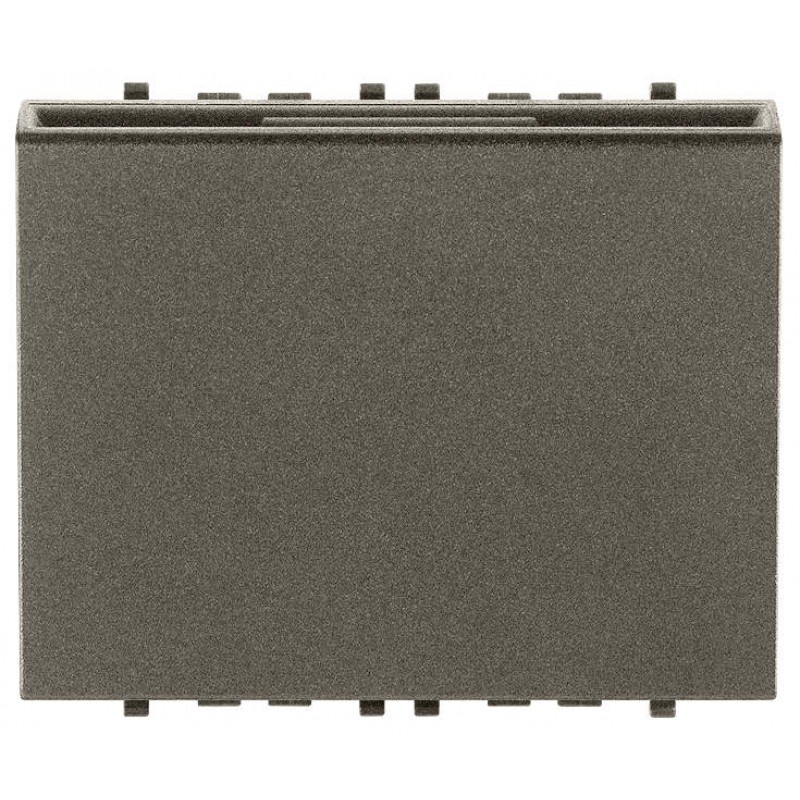

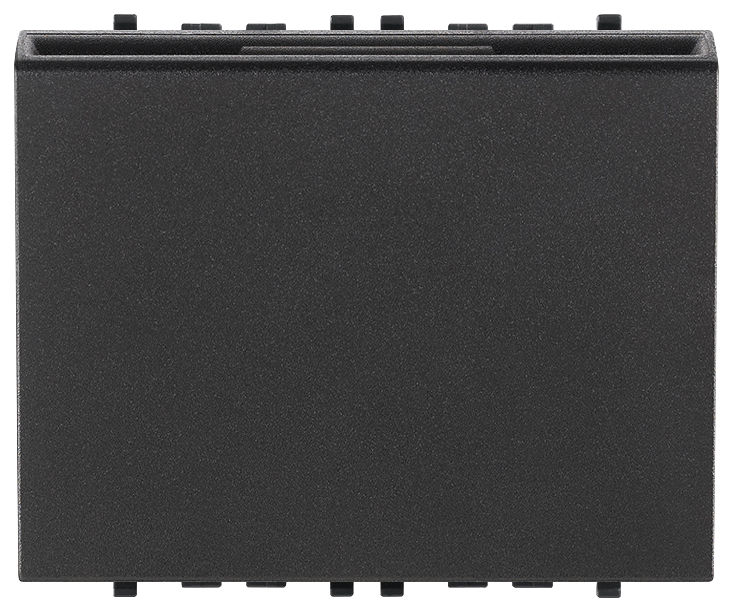

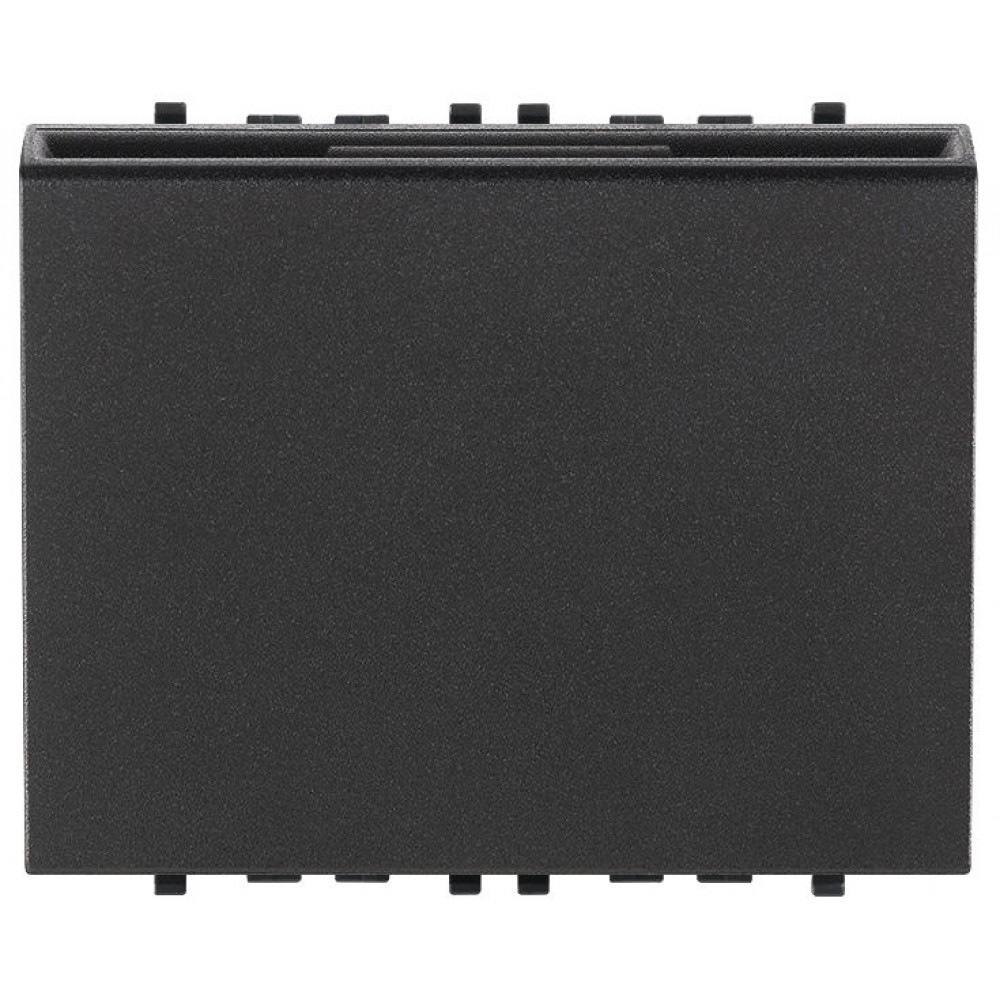

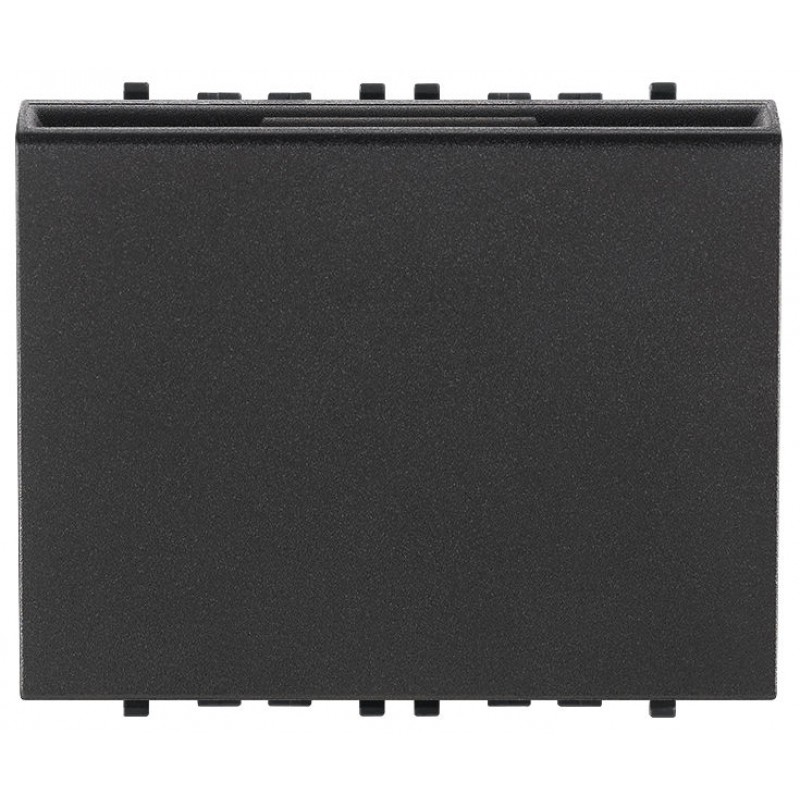

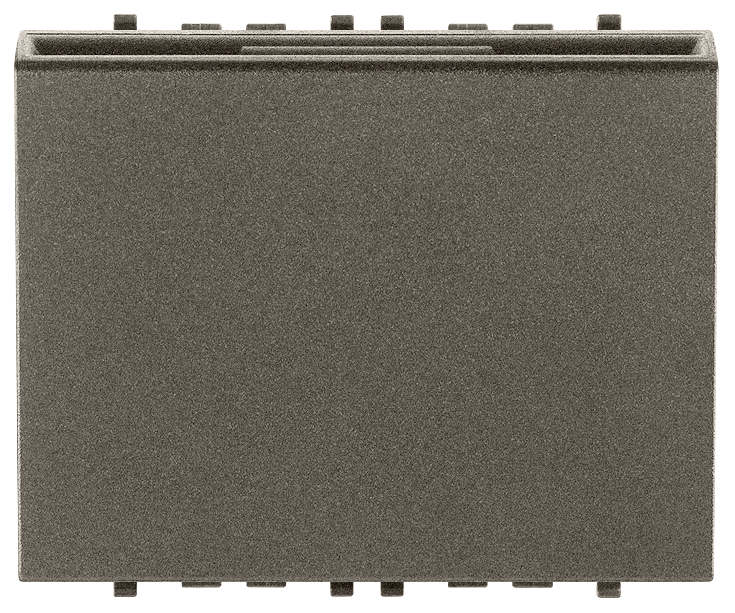

NFC / RFID smart card reader pocket - IoT connected - 19467 Arké Vimar
Discover the best solutions for accommodation and connected access control
Connected NFC/RFID Switch 19467 Arké Vimar for installation inside the room, IoT technology on Bluetooth technology 5.0 standard for creating the View Wireless mesh system.
NFC/RFID pocket 19467 Arké Vimar has
1 relay output NO 16 A 100-240 V ~ 50/60 Hz, 1 configurable input, detection in the dark with LED with intensity adjustment, power supply 100-240 V ~ 50/60 Hz, gray - 2 modules.
The connected device must be installed in a location (for example a hotel room, an office, etc.) and allows the activation of the utilities only if the wireless smart is read and recognized
card associated with it.
Using a smartphone or tablet, the pocket can be configured with
Bluetooth technology using the
View Wireless app and can be remotely supervised by installing the gateway 20597-19597-16497-14597.
It is able to communicate with the landing reader 20462-19462-14462 (if associated during the configuration phase) to manage access to the same room and ensure greater security
through the “Relay crossing” option.
Features Pocket 19467 Arké Vimar
- Power supply voltage: 100-240 V ~, 50/60 Hz;
- Max power absorbed by the network: 1.1 W;
- White led for illumination of the pocket for identification in the dark;
- RFID technology @ 13.56 MHz, Mifare ISO14443A standard;
- Frequency range: 13.553-13.567MHz;
- Transmitted RF power: <60 dBμA / m.
Clamps:
- L and N for power;
- Relay output 16 A 240 V ~ C-NO (NO SELV);
- IN input (not used);
- 1 configuration button.
- Operating temperature: -10 ° C - +45 ° C (indoor use);
- Degree of protection: IP20;
- Configuration from App View Wireless for Bluetooth technology system .;
- Frequency range: 2400-2483.5 MHz;
- Transmitted RF power: <100mW (20dBm).
Technical data 19467 Arké Vimar
- Group: alarm, emergency call and signaling systems;
- Class: access control system;
- Stand-alone: Yes;
- Networkable: No;
- PC connection: No;
- Interface Type: others;
- Max number of people: 200;
- Reading method: code;
- Signal output: light signal;
- Mounting Type: Recessed;
- Operating voltage for AC 50 Hz: 120.00 - 230.00 v;
- Operating voltage for AC 60 Hz: 120.00 - 230.00 v;
- Operating voltage for DC: 0.00v;
- Operating temperature: 0 - 40 ° C;
- Degree of protection (IP): IP20;
- Color: gray, white or metal;
- Execution: reader;
- Material: plastic;
- Power over Ethernet: others;

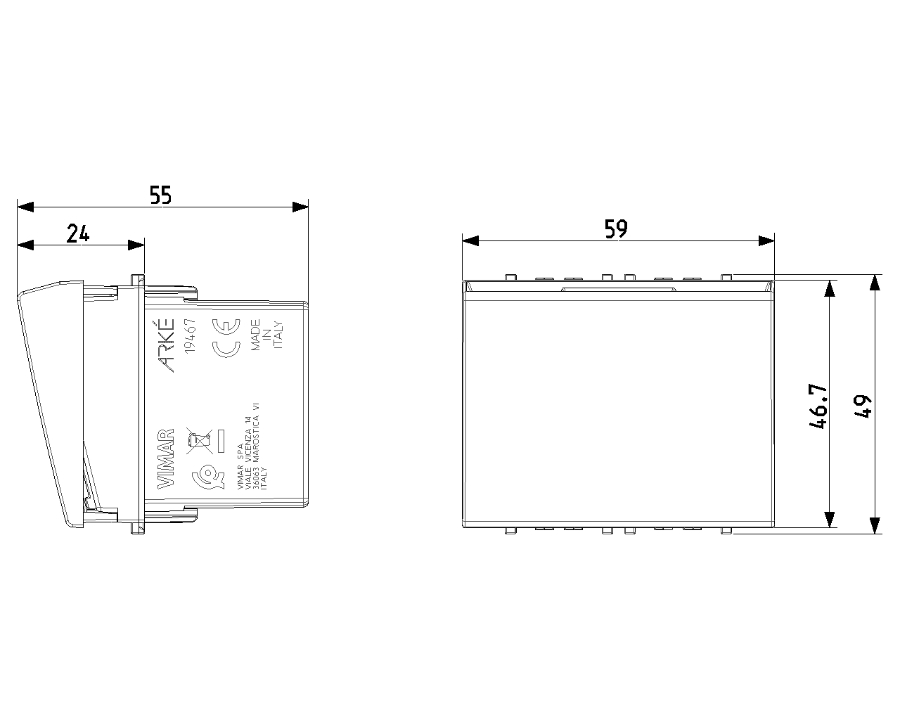

- Width 67.30 mm;
- Height 49.00 mm;
- Depth 50.30 mm.
