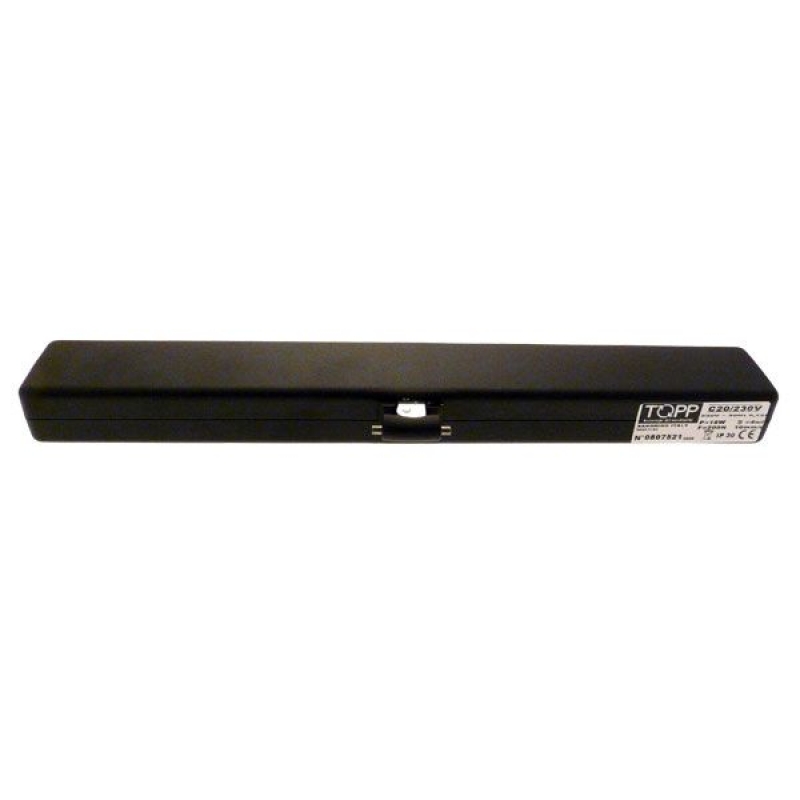

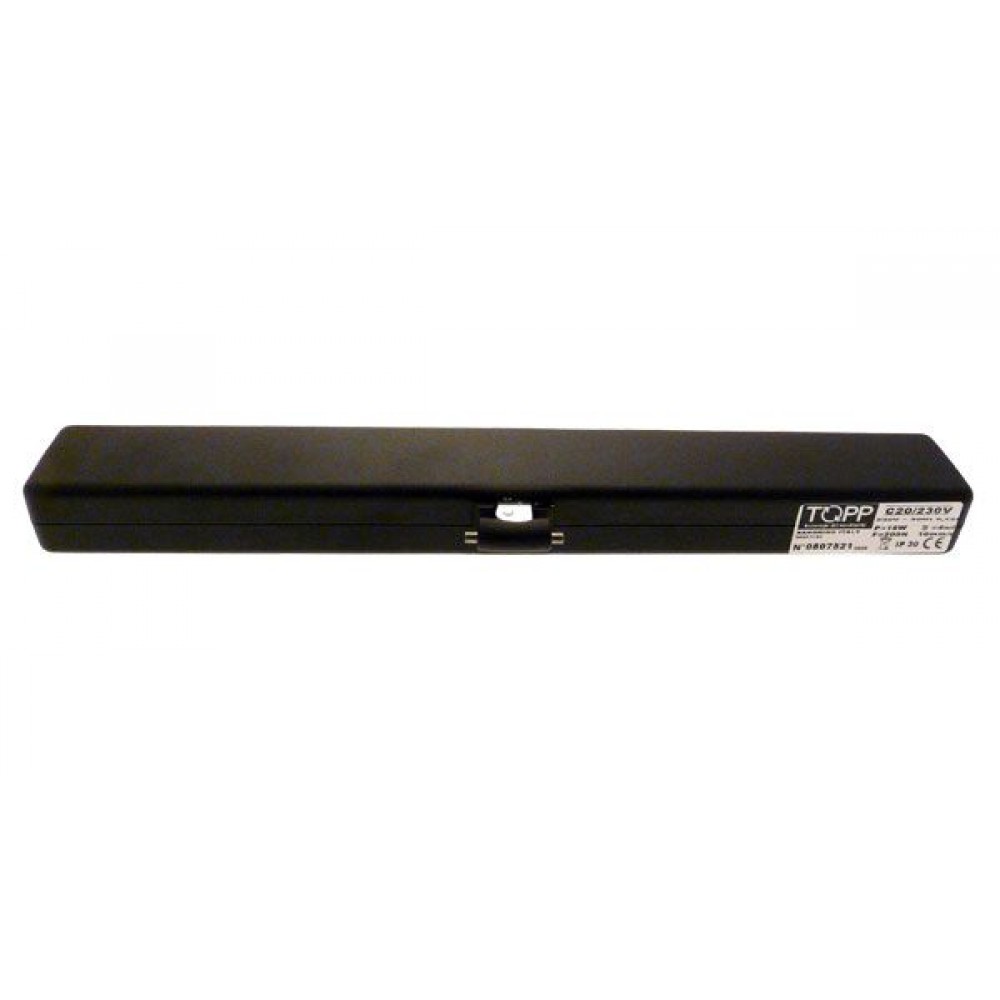

C20 Topp Chain Actuator 230V 50Hz 1 Push Point Black Grey or White

Topp
Brands: Topp
Code: C20 230V
-44%
£ 61,72 £ 110,21
Prices excluding VAT
Electric actuator Topp C20 230V with double link articulated chain, contained in a suitable casing, complete with support and fitting accessories for top and bottom hung windows.
You have chosen:
Are you looking for an actuator from the Topp catalog that is not on our site? Contact us and ask for a quote.
Availability: available in stock

- +

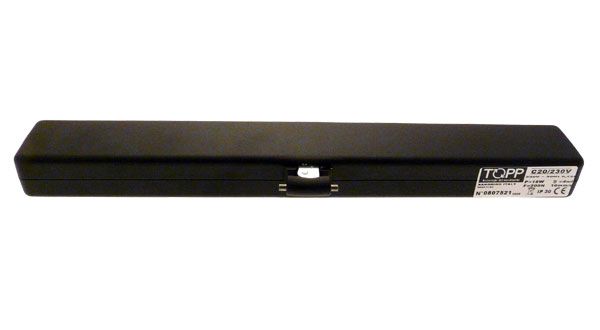

C20 Topp Chain Actuator - 230V 50Hz 1 Push Point - Black Grey or White

C20 Topp actuator with double link articulated chain with very high resistance

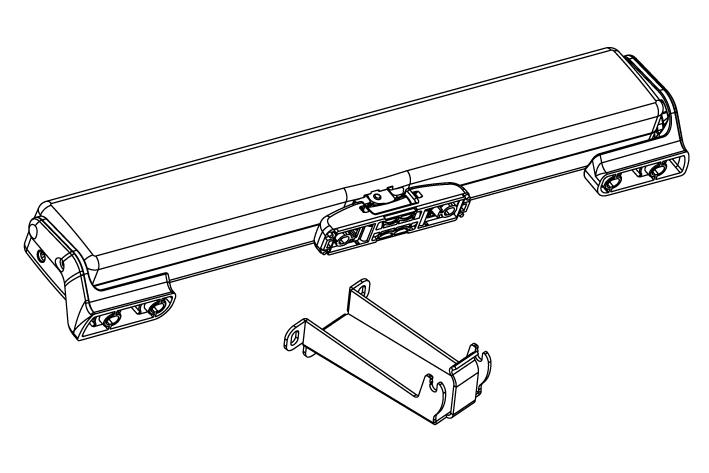

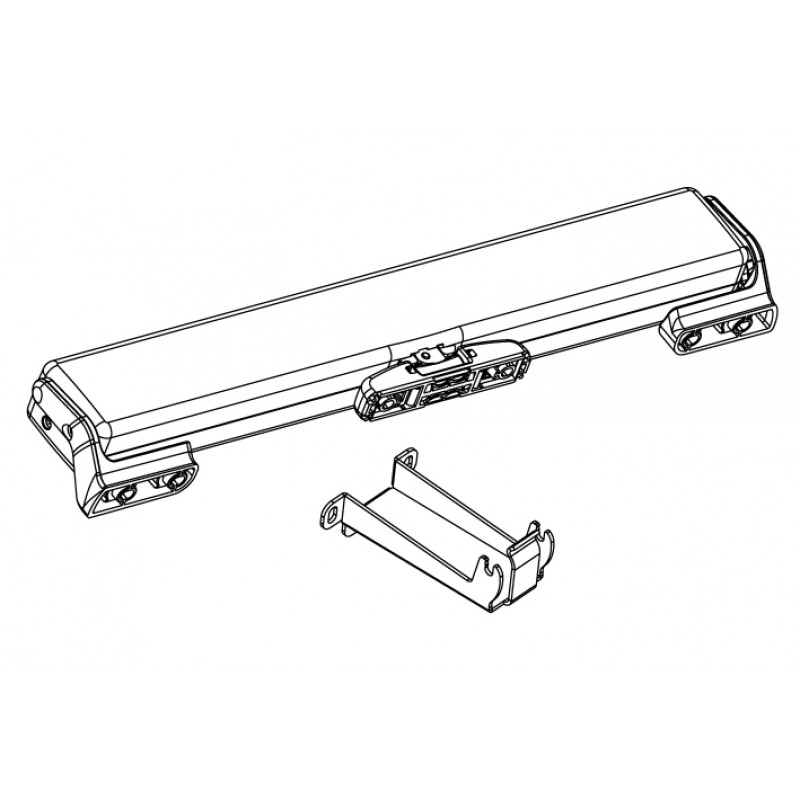

Electric actuator Topp, model C20 230V with double link articulated chain, contained in a suitable casing, complete with support and fitting accessories for top and bottom hung windows.

  • Operation at 230V 50Hz;
  • Maximum applicable load 300N;
  • Rapid hooking system for the adjustment to the frame;
  • Stroke adjustable at 240 or 360 mm by an external selector;
  • CE marked device.


Topp C20 Chain Actuator - Technical Characteristics

  • Power supply voltage: 230V 50Hz;
  • Max recommended load in thrust: 300N;
  • Max recommended load in traction: 200N;
  • Stroke: 240 and 360mm;
  • Absorbed current: 0,12A;
  • Idle translation speed: 8mm/s;
  • Duration of the idle stroke: 46s;
  • Double electrical insulation: yes;
  • Service type: S2 of 4min;
  • Operating temperature: - 5 / + 50 °C;
  • Protection degree of electric devices: IP30;
  • Stroke end regulation in closing: not necessary;
  • Parallel connection of two or more C20: yes;
  • Stroke end: electronic in opening, by amperometric absorption in closing;
  • Dimensions: 362x48x34 mm;
  • Weight: 0,970Kg.

Applications: bottom and top hung windows, domes, skylights.

Topp c20

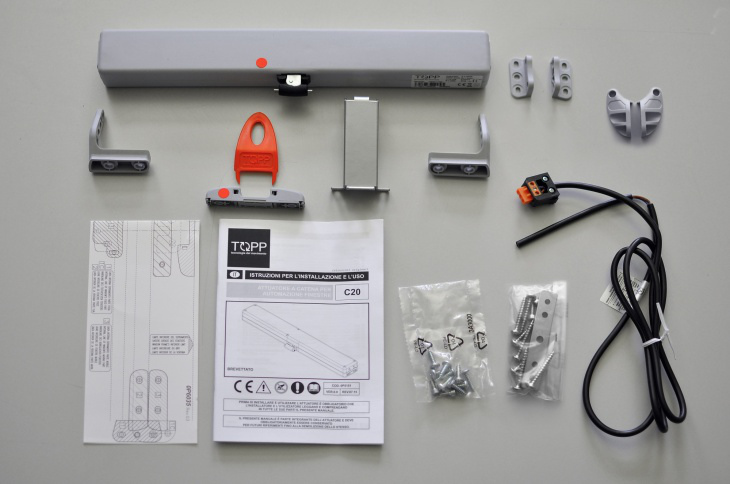

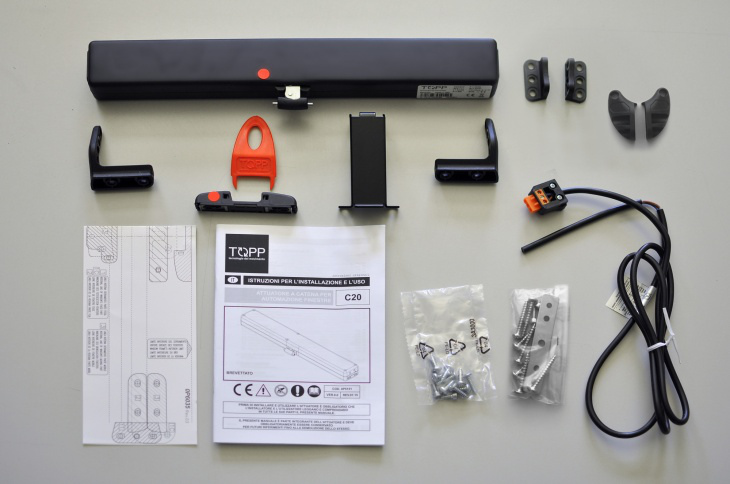

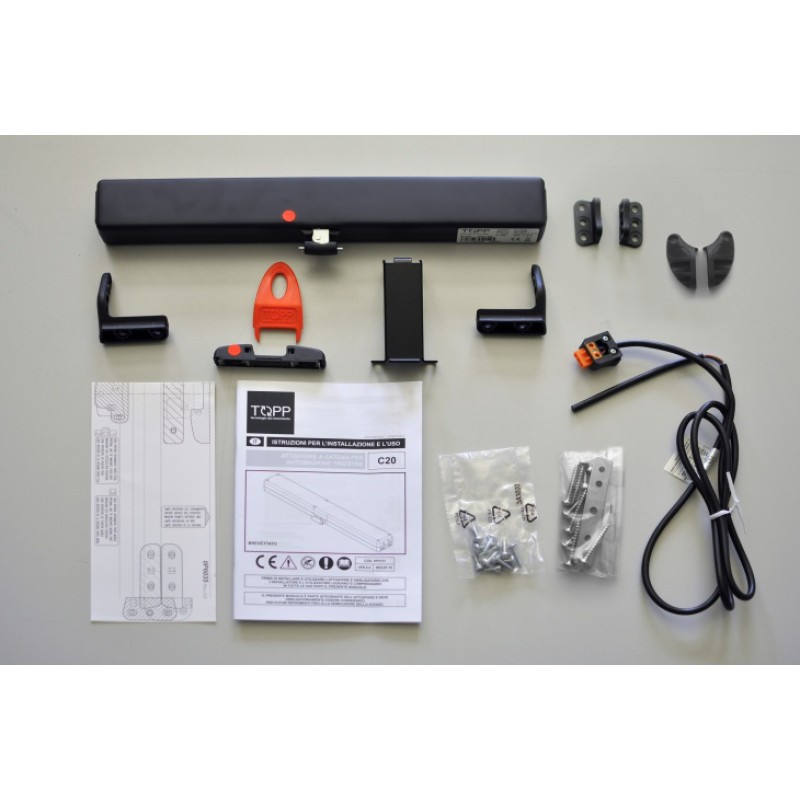

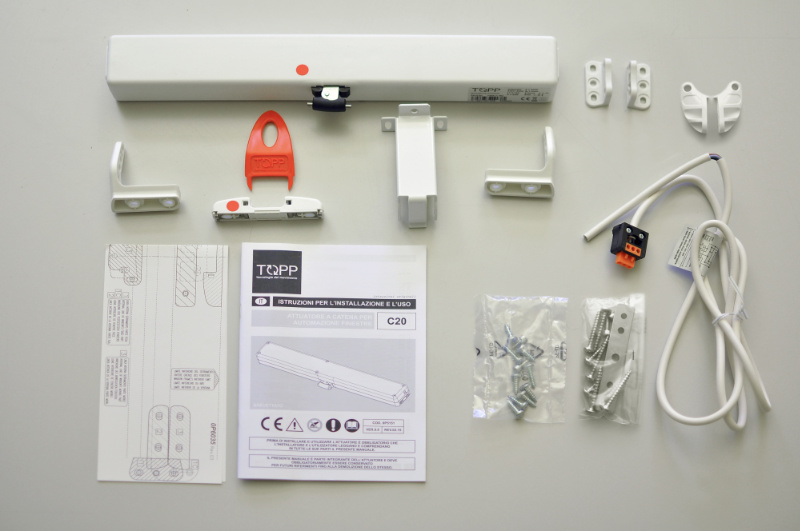

What is included? Chain actuator, frontal swivel brackets set for top/bottom hung windows, upper bracket for bottom hung windows, ARS rapid hooking device to the frame, spare parts.


Why choose a C20 Topp actuator?

  1. Double link chain with very high resistance on top loads;
  2. High Stroke, together with a reduced size of the actuator, to allow applications that require minimum size (international patent on the chain path);
  3. End of stroke during closing action with current absorption, to avoid adjustments during closing action and avoid possible positioning errors of the actuator;
  4. Fast hooking and unhooking system to the window (international patent).

C20 Topp
