Electrically Operated Handle Black for Metal Glass Fire Doors 40610N Opera

Opera
Brands: Opera
Code: 40610N
-20%
£ 248,95 £ 311,18
Prices excluding VAT
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

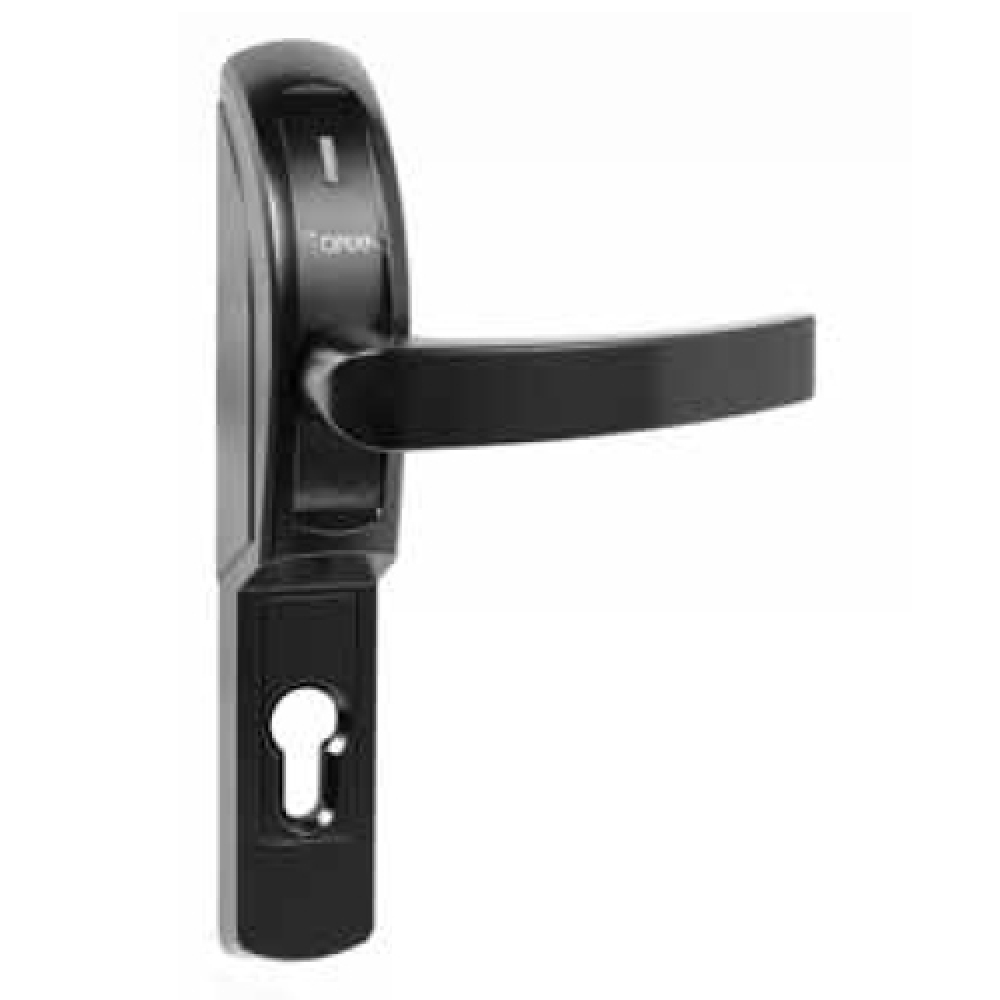

Electrically Operated Black for Locks for Full Metal and Glass Fire Proof Doors 40610N Opera

Use
For locks for full metal and glass fire proof doors.
Not suitable for outdoor installation.

Variant timer:
Without timer

With timer: it allows to change the closing time

Variant with no power:
Fail safe - enabled
: green LED
Fail secure - disabled: red LED

Technical info
Black painted (Ral 9005).
Brushed metal body and handle.
Case-hardened steel internal mechanisms.
Dimensions: mm 234 x 48,5 x 38, handle height mm 84.
Distance between cylinder and handle mm 72, 92.
Handle panel mm 9 (on request mm 8).
Mounting on the door, no additional holes required.
Selectable handle panel rotation 45° or 60°.
Power supply 12/24 V AC/DC.
Absorbed current: at 12V - 700 mA peak/ 500 mA holding at 24V - 300 mA peak/200 mA holding.
Electronic opening holder.

Version without timer
Use: replacement of traditional mechanical handle mounted outside door.
The handle, normally free turning, can be enabled by:
- De-energizing (fail safe - enabled version).
- Or renergizing (fail secure - disabled version) through a button contact or access control system. Action is limited to the duration of the impulse.

Versione senza temporizzatore

Version with timer
Use: replacement of traditional mechanical handle mounted outside door.
The handle, normally free turning, can be enabled by:
- Closing a NO button contact or access control system. In this version power supply is always on.
Additional features over the previous version:
Internal timer adjustable from 0-60 s (optional).
Open collector output can be coupled with a micro external relay to report handle enabled (art. 05258 available on Windowo).
Two colours red/green LED signalling the handle status enabled or disabled.
Blue LED to light the bottom of door.

Versione con temporizzatore

IMPORTANT EMERGENCY EXIT
For use as emergency exit you need to add the accessory item art. 00408 Opera.
On the site you will also find the panic ready to use.
The use of split frames is required when fitting the electric handle to a panic bar through the mortice lock.

Ouverture Series Opera
Electronic handle for fire doors and emergency exits.
To be matched with all fire doors locks.
Can be mounted on narrow metal frames.
Electronics control unit with internal microprocessor.
Optic and acoustic integraded signalling.

Serie Ouverture Opera

Blue/White LED for floor lighting

Blue/White LED for floor lighting
