Giesse Window Handle Cremonese Euro for Door

Giesse
Brands: Giesse
Code: 01000U
£ 12,60
Prices excluding VAT
Giesse window handle Euro cremone bolt version without key. Cremone bolt for operating the door mechanisms, with 90° rotation and click.
You have chosen:
Availability: available in stock

- +

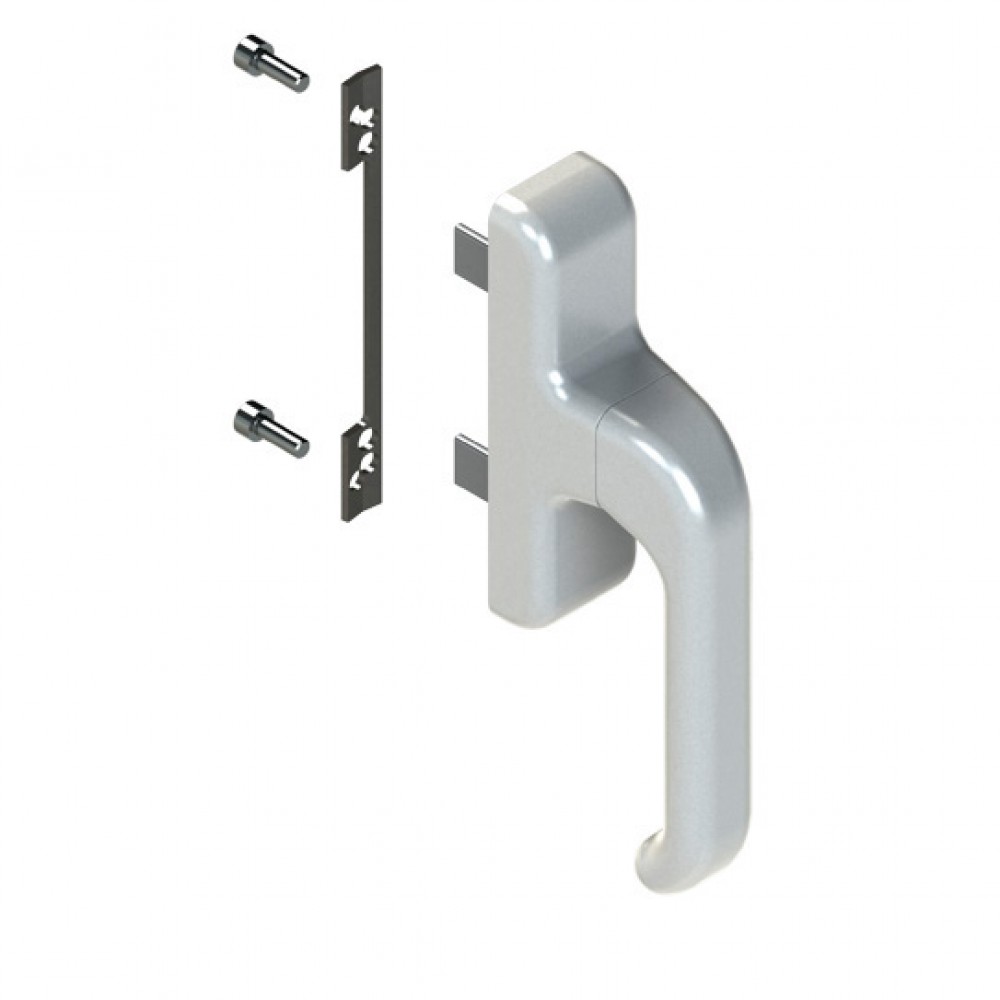

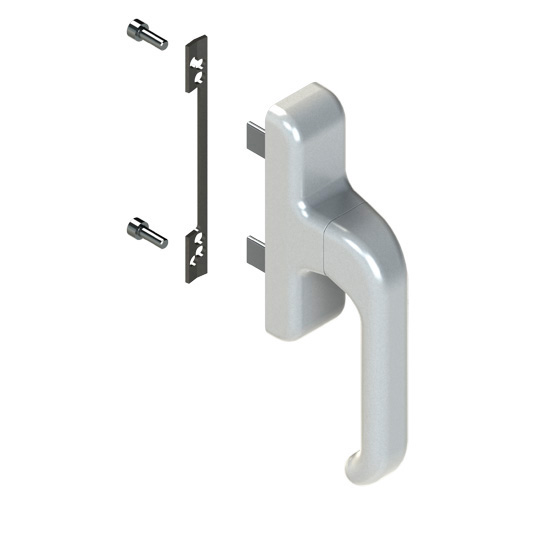

Window Handle Cremone Bolt Giesse Euro Ambidextrous Bidirectional Wing Opening

Giesse window handle Euro version without key (no key) suitable for nodes of the type C001, C002, C003, C004, C005, C006, C007, C008, C009, C010, C012, C013, C014, C015, C016, C017, P001, P002, P004, P005, P006, P007, P008, P009, P010. We recommend reading the PDF "Nodes Type Battente C", which describes the nodes and the series/systems to which this article is adapted (it can be found in the "Documents" section of the product sheet).


Giesse Euro cremone handle functions:

Giesse ambidextrous cremone bolt, for open joint systems for operating sash mechanisms, with 90° rotation and positioning click on opening and closing.


Giesse cremonese handle finishes:

Window handle in the finish to choose from: Silver, Bronze, White Ral 9010, Ivory Ral 1013, Black Ral 9005.

Maniglia per Finestra - Cremonese - Giesse Euro


Technical characteristics of Giesse cremone window handle:

The use of quality die-cast materials and the adoption of the Giesse painting system guarantee high mechanical qualities as well as uniformity of colors and strong resistance to abrasion.

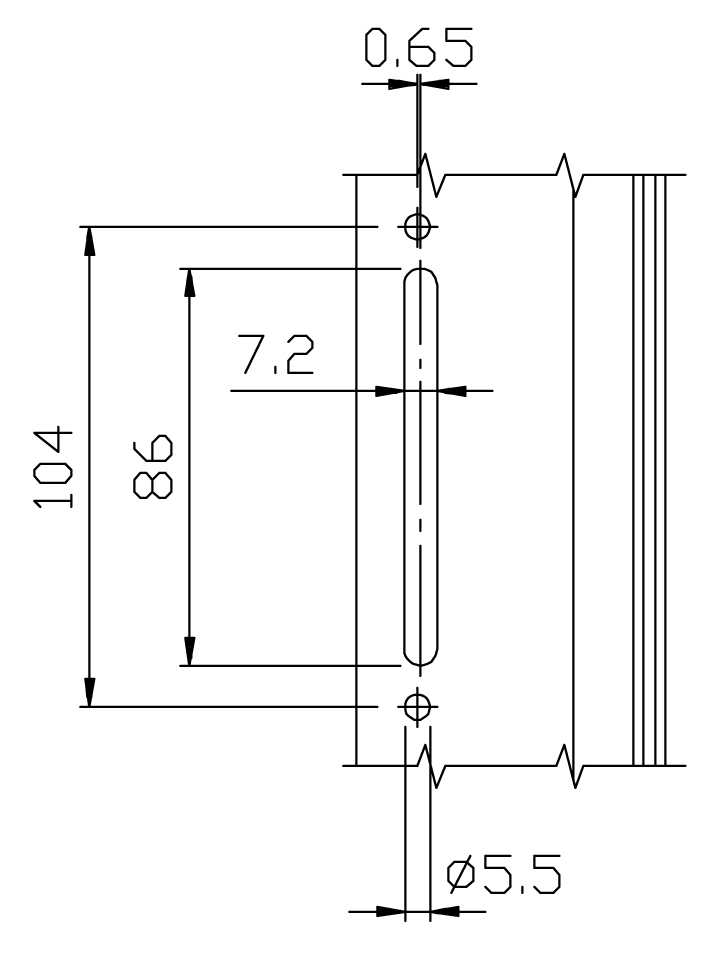

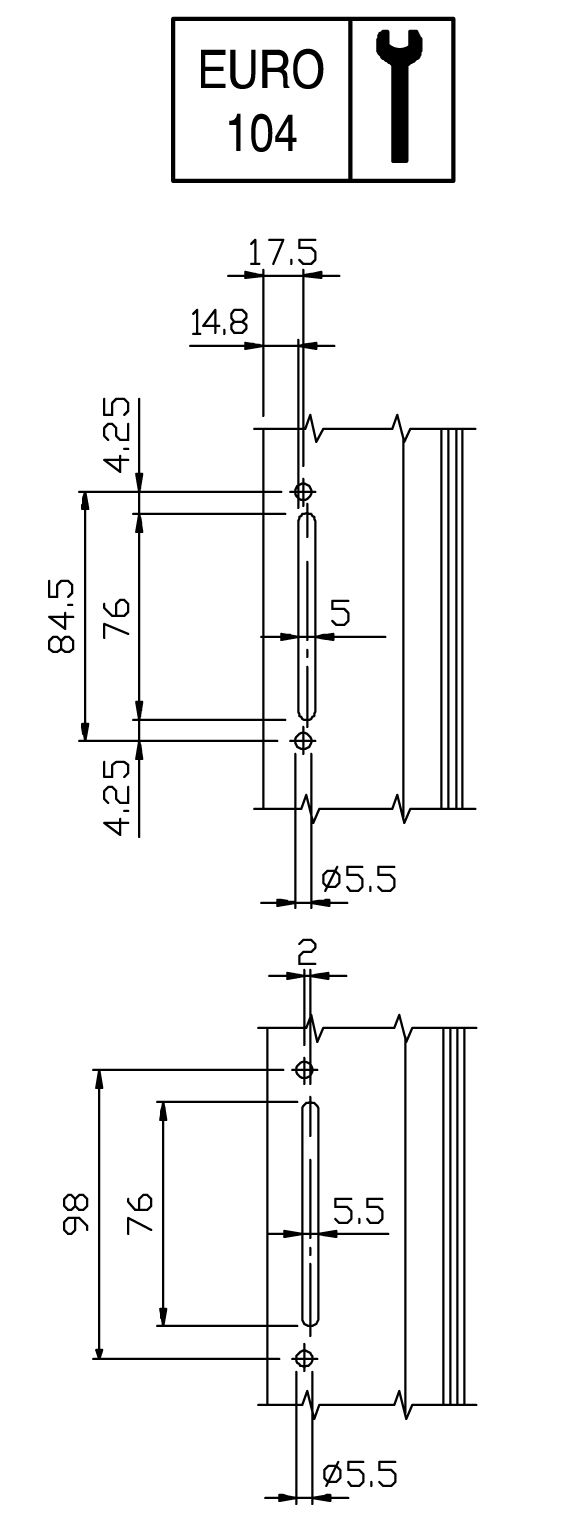

The Euro cremone bolt has 104mm and 84mm center distances, but can easily be adapted for 98mm center distances.

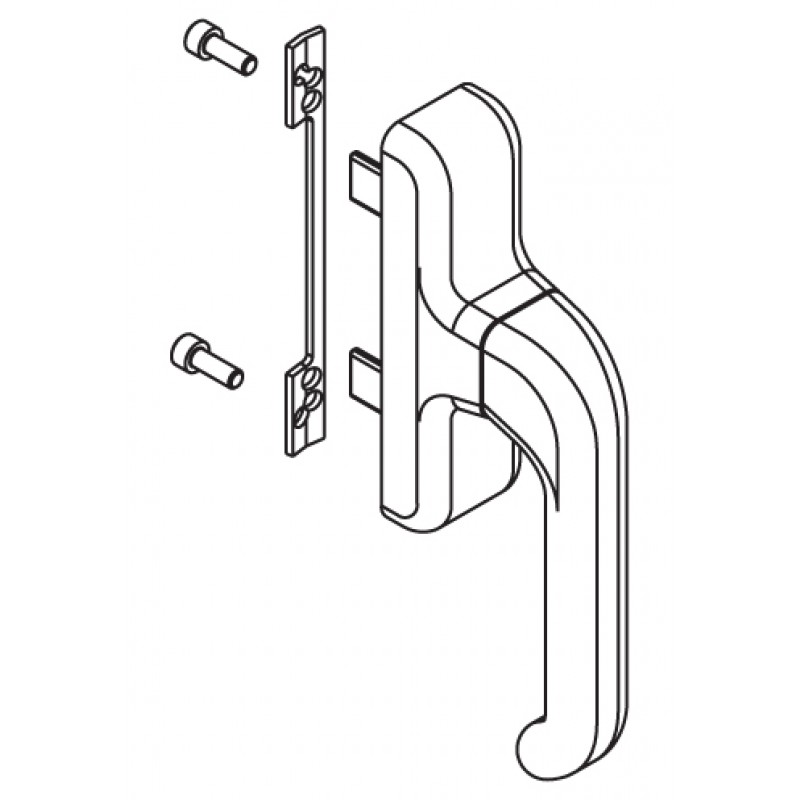

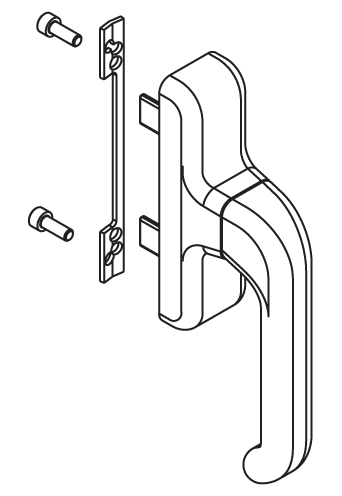

Giesse Euro cremone handle equipment:
  • 1 fixing plate
  • 2 TCCE M5x14 screws

Materials with which it was made:
  • Die-cast aluminum handle
  • Cremonese case, gear
  • Racks and slides in die-cast zamak
  • Inner sheath and base in Hostaform
  • Steel spring
  • Screw and fixing plate in stainless steel

Maniglia per Finestra - Cremonese - Giesse Euro

Maniglia per Finestra - Cremonese - Giesse Euro

NOTE: more information on the Giesse window handle is contained in the PDF attached to the product sheet (you can download it by clicking on "Documents").
