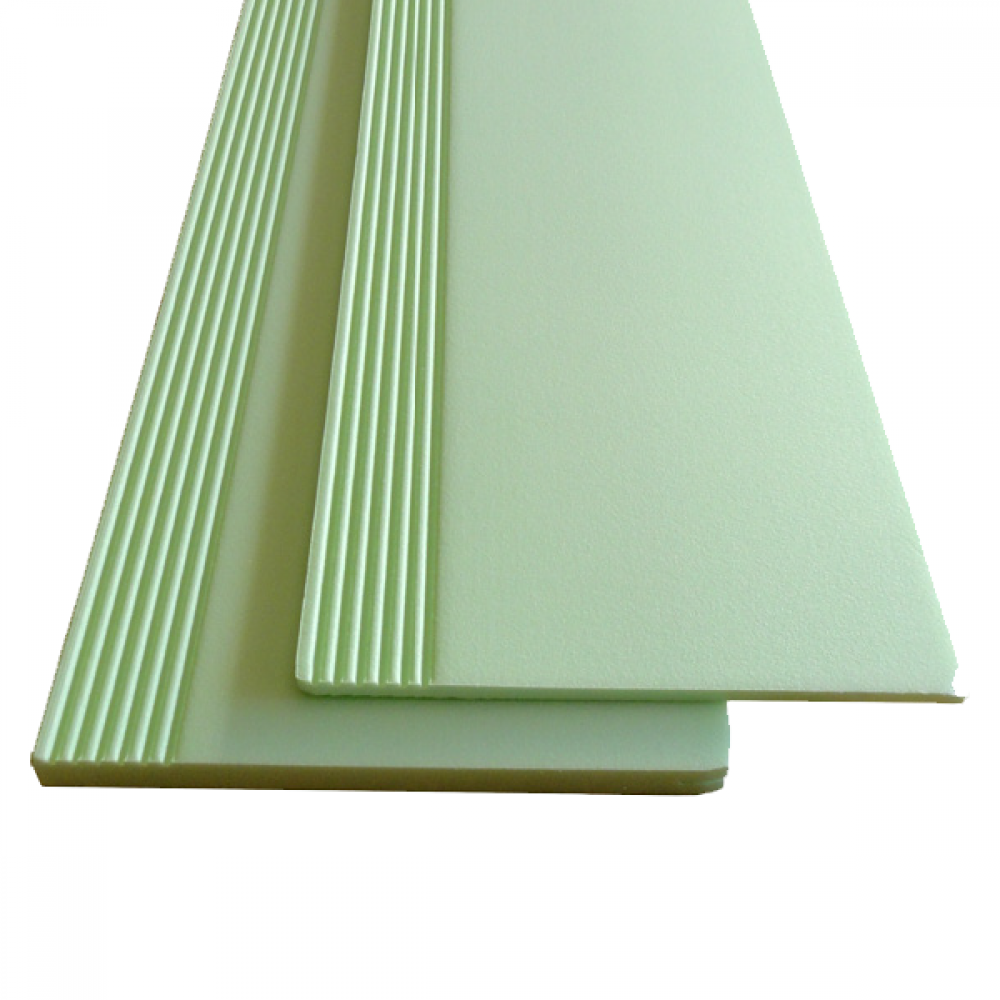

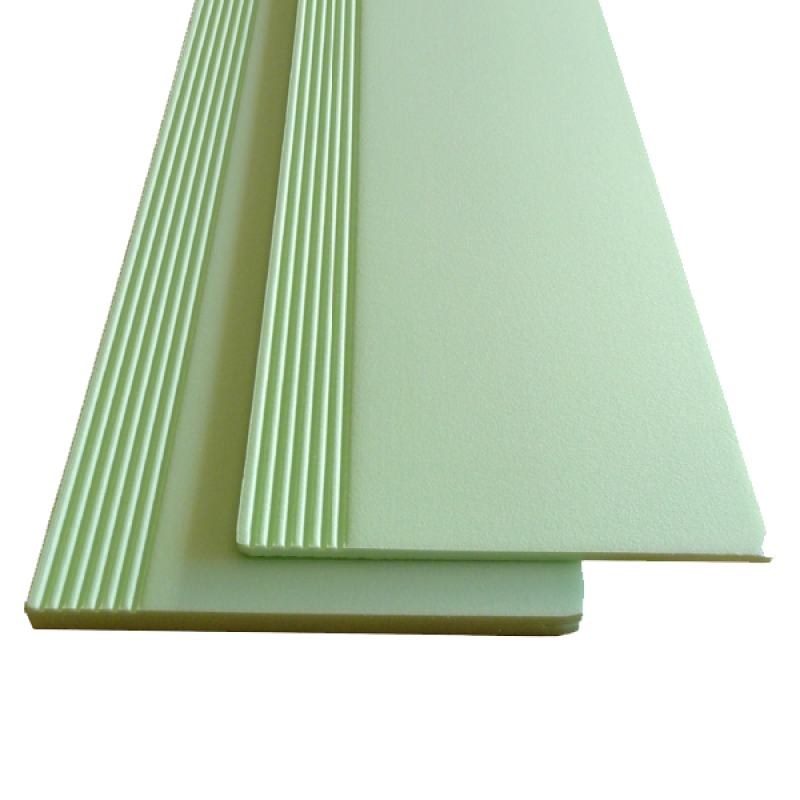

Panel Flexoterm 20 mm insulation Cassonetto PosaClima Renova
extruded polystyrene panel with a closed cell structure for the coating of the lower flat part of the box with very high insulation.
Dimensions: (mm) 250x1050 mm.
Thickness: (mm) 20 mm. It 'also a less thick version, by 10 mm, this sale on Windowo.
On the part of the panel terminal we have been made of micro-incisions to guide the installer in the cutting to size.
The consistency of the panel is such that you can cut without the production of crumbs - typical of normal polystyrene - especially annoying when you work in living spaces. Cut with a cutter, is perfectly impervious to steam, air and water that is brought inside the box when retrieved the cloth wet from the rain.
Available in two thicknesses, 10 and 20 mm, length 105 cm and width 25 cm. This is the 20 mm version, but you can find the version 10 mm thick sold on Windowo.
The main product features are:
- Very low thermal conductivity to prevent the heat exchange between inside and outside (λ = 0.03);
- Steamed Water resistant to prevent the hot and humid indoor air can transmigrate into the compartment casing (80 <μ <200). This feature is very important because in the winter a possible infiltration inside the hot air coming from the dumpster interior may produce condensation in the compartment creating mold problems or even cause the freezing of the cloth during the night and then prevent its normal unrolling ; the risk is greater the longer the cavity, through the use of toothbrushes, was semi-ventilated yield;
- No formation of crumbs compared to conventional EPS;
- Total impermeability to water (volume increase of the material immersed in water = + 0.3%).
Fields of application
The Termopav panel is a component of Posaclima Renova system specifically designed for the insulation of the lower flat part of old wooden boxes or masonry.
This panel is installed inside in a very simple bin compartment: after taking the widths and depths, you cut to size and the panel is fixed to the box by pasting with a glue based on MS Polymer. In the case where it is decided to also install the internal toothbrush, remembers the toothbrush holder PVC paste prior to Termopav (always with a glue based on MS Polymer), and then proceed with bonding of the bottom panel of the box. To be used only in the bins with front inspection.
Certification and Performance
Coeff. vapor diffusion: UNI EN 12086, 80 <μ <200;
Thermal conductivity: UNI EN 13164, λ = 0.030 W / m * K;
Density: UNI EN1602, 30 kg / m;
Compressive strength: UNI EN 826 200 kPa;
Dimensional stability at 70 °: UNI EN 1604 <5%;
Coeff. linear thermal expansion DIN 53752, 0.08 long. Transv 0.06 mm / (m * K);
Class of reaction to fire: EN 13501-1, Class E;
Water absorption by immersion: UNI EN 12087, 0.30%;
moisture absorption by diffusion and condensation: UNI EN 12088, <5%;
Maximum operating temperature: -10 ° C, + 40 ° C;
transmittance value box insulated with Renova system: R5077KA01 SGM, Up to Usb = 1.35.
