Island Hood Snack in Stainless Steel with Motor
The
Snack island hood in stainless steel with electric fan motor is the ideal solution for the professional kitchen. Constructed from high-quality materials, this island hood offers a sleek design and heavy-duty construction.
The particular profile makes it
ideal for cooking blocks with a depth of 70/90 cm , positioned in the center of the room, even in cases of low ceilings.
Construction in AISI 430 , Scotch-Brite satin finish. Completely rimbordata, even in the internal parts.
Built-in electric fan. Assembled by electro-welding.
Upon customer request, special executions are made (execution in AISI 304, assembly by welding), LED lighting and larger sizes (contact us for a free estimate).
Supplied with the Snack island hood:
- Labyrinth grease filters in AISI 430 stainless steel;
- Condensate drain 1/2”;
- Centrifugal electric fan 220V single-phase 50/60 Hz.
Notes on the Snack island hood:
- Hanging kit and flange not included;
- The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CISM14115 = CISM1416).
Island Hood Snack in Stainless Steel with Motor - Depth 1200 mm

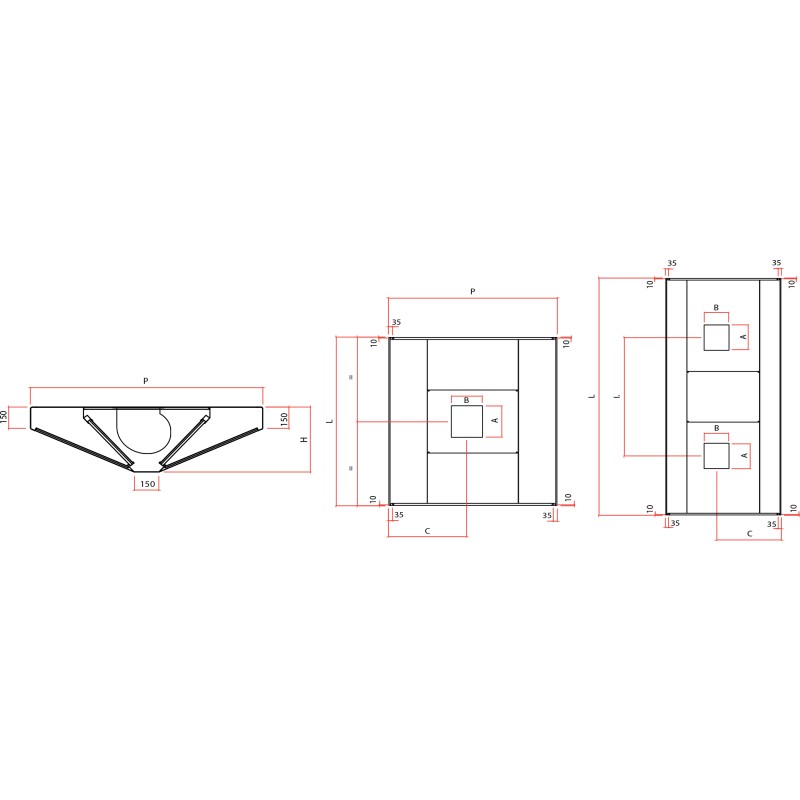

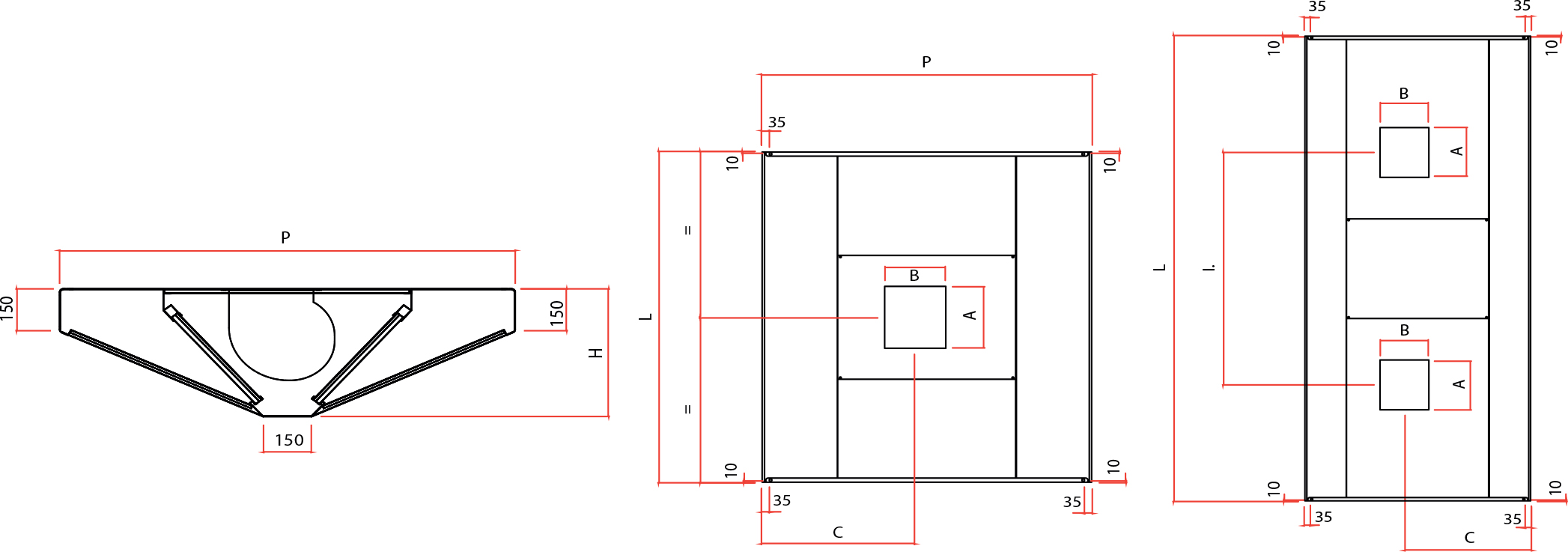

| Model |
Dimensions WxLxH |
A x B |
c |
n° Filters |
Weight |
Fan |
Watt |
| (mm) |
(mm) |
(mm) |
(kg) |
Amps |
| CISM 12/12 |
1200x1200x500 |
300x260 |
670 |
4b |
50 |
9/9T |
300/4.1 |
| CISM 12/14 |
1200x1400x500 |
300x260 |
670 |
4b |
55 |
9/9T |
300/4.1 |
| CISM 12/16 |
1200x1600x500 |
300x260 |
670 |
6a |
62 |
9/9T |
300/4.1 |
| CISM 12/18 |
1200x1800x500 |
300x260 |
670 |
6b |
65 |
9/9T |
300/4.1 |
| CISM 12/20 |
1200x2000x500 |
300x260 |
670 |
8a |
72 |
8/9T |
420/3.1 |
Island Hood Snack in Stainless Steel with Motor - Depth 1400 mm
| Model |
Dimensions WxLxH |
A x B |
c |
n° Filters |
Weight |
Fan |
Watt |
| (mm) |
(mm) |
(mm) |
(kg) |
Amps |
| CISM 14/12 |
1400x1200x500 |
300x260 |
770 |
4b |
53 |
9/9T |
300/4.1 |
| CISM 14/14 |
1400x1400x500 |
300x260 |
770 |
4b |
58 |
9/9T |
300/4.1 |
| CISM 14/16 |
1400x1600x500 |
300x260 |
770 |
6a |
65 |
9/9T |
420/3.1 |
| CISM 14/18 |
1400x1800x500 |
300x260 |
770 |
6b |
68 |
8/9T |
420/3.1 |
| CISM 14/20 |
1400x2000x500 |
300x260 |
770 |
8a |
75 |
8/9T |
420/3.1 |
