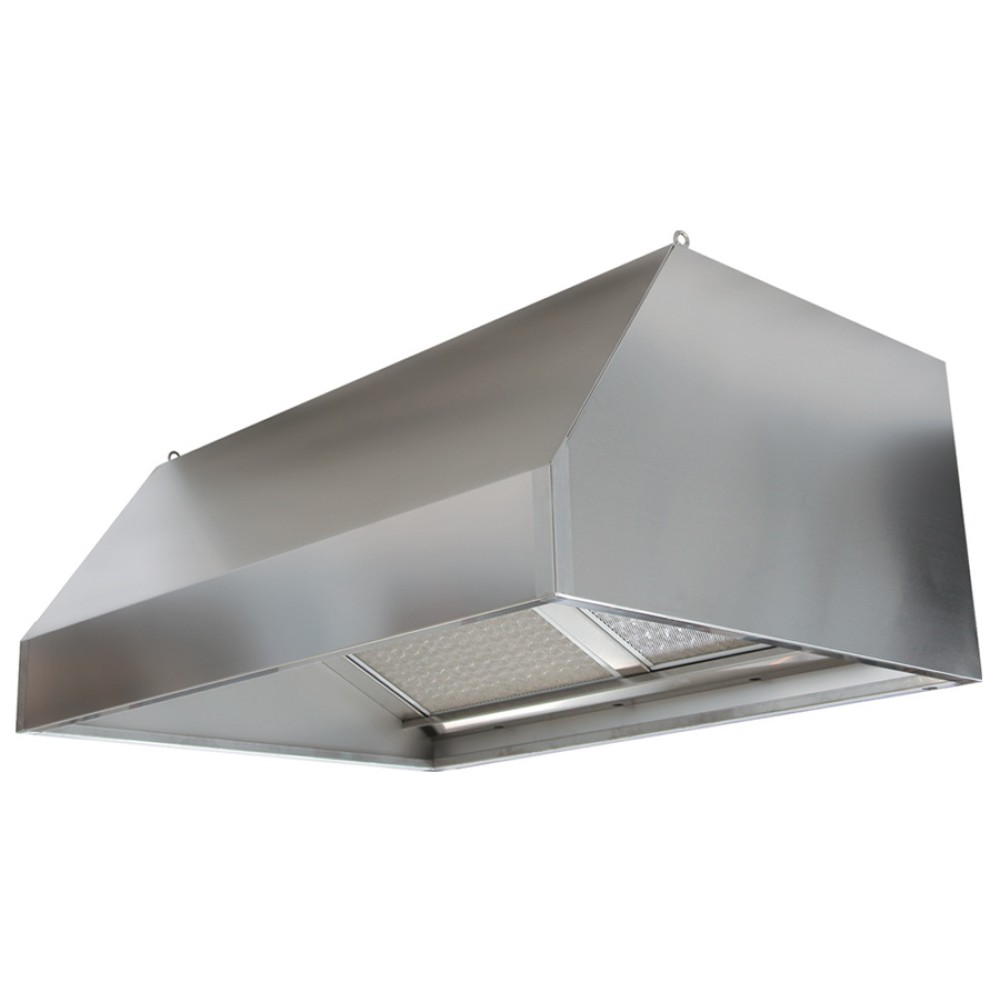

Hood with Activated Carbons in Stainless Steel Self-suction and Filtering

Hood with Activated Carbon - in Stainless Steel - Ideal for Eliminating Bad Smells

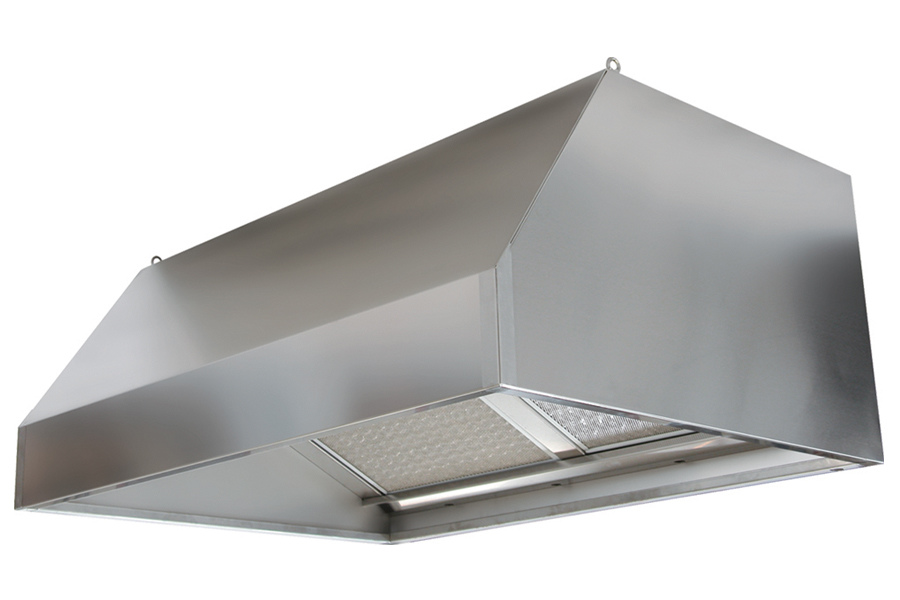

An activated carbon hood is equipped with activated carbon filters that can purify the air very effectively. In fact, activated carbon has a very particular power: that of retaining dirt and impurities. Thus the air is reintroduced into the sanitized and refreshed environment.

Activated carbon hood in the self-suction wall-mounted and Mini Snack models are hoods from the respective series to which an additional filtering septum has been added consisting of a class G2 synthetic material filter, and a filter containing activated vegetable carbon type "CARBOFIL AGC" in the AG version, in addition to the stainless steel filter with microstriated mesh.

The self- suction hoods set up in this way give good results in reducing fumes and odors (about 70%) where for various reasons it is not possible to evacuate the fumes produced by the hobs in the traditional way. The absorption capacity of substances in the gaseous state by activated vegetable carbon is determined by the temperature, by the relative humidity of the air and by the speed of passage of the latter.

In order to optimize this equipment, it is advisable that the conditions of use do not exceed temperatures of 50-60° C with a relative humidity of 70-75%. The efficiency of the activated carbons is measured with a benzene index system of 21g/100g, CCL index > 35%.

However, it will always be good practice to channel the hood to prevent the untreated part of the air from being introduced into the work environment .

Activated carbon hood construction features:

• The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm, positioned against the wall.
• Construction in AISI 430, Scotch-Brite satin finish. Completely rimbordata, even in the internal parts.
• Assembled by electro-welding.
• Perimeter condensate collection channel. Terminal block capacitor in IP 55 box.
• Special executions (execution in AISI 304, assembly by welding) on ​​request.

Supplied with the activated carbon hood:

• Triple filtering septum composed of Metal Mesh Filter + Acrylic Filter + Activated Carbon Filter
• Centrifugal electric fan 220V single-phase 50/60Hz
• Condensate drain 1/2”​
• Fixing bars
• Certifications relating to Activated Carbon

Notes on the activated carbon hood:

• Standard packaging included in the price .
• Hanging kit and flange not included .
• The hoods of intermediate lengths not marked have the same price as the hoods with immediately greater lengths (e.g.: CS711 = CS712)
• Also available in the Snack version upon request.
• Built in compliance with CE standards
• Made in Italy.

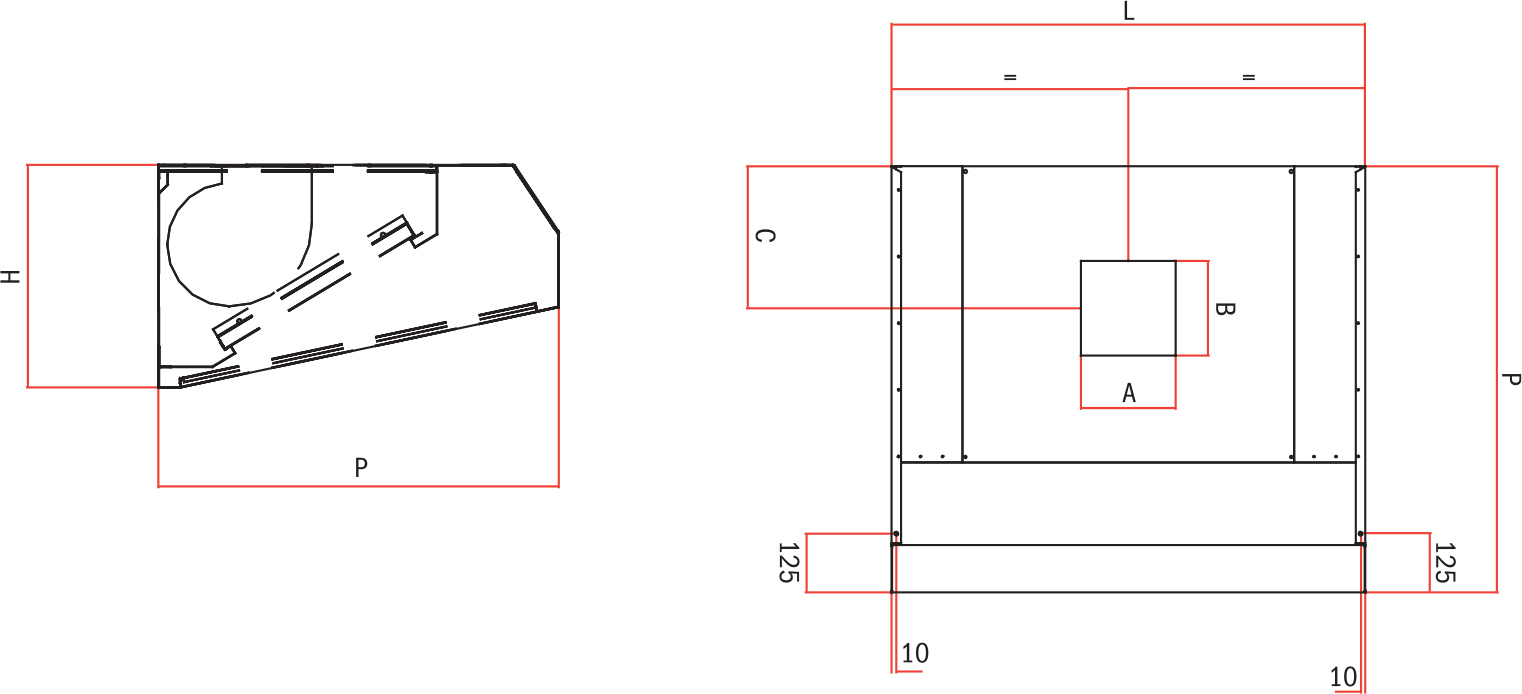

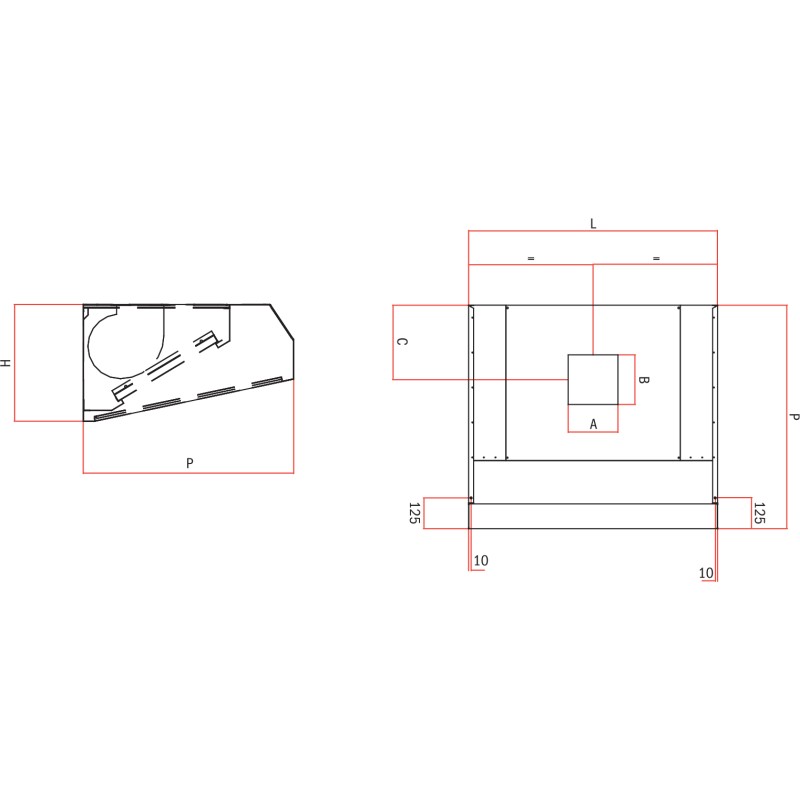

Technical sheet - Self-suction hood with activated carbon in stainless steel (with electric fan)

Activated carbon hood with a depth of 700 mm

Template

Dimensions WxLxH

A x B

c

Filter media and number of filters

Coal

Treated Air

Weight

Capacity*

Motor

Watts/Amps

(mm)

(mm)

(mm)

Inox Mesh

Synthetic

Coal

(kg)

(m 3 /h)

(kg)

(m 3 /h)

CC 7/10

700x1000x600

230x200

245

2a

2a

2a

3.8

600

34

900

7/7

145/1.8

CC 7/12

700x1200x600

230x200

245

2b

2b

2b

4.8

640

38

1100

7/7

145/1.8

CC 7/14

700x1400x600

300x270

215

3a

3a

3a

5.7

900

42

1250

8/9T

420/3.1

CC 7/16

700x1600x600

300x270

215

3a

3a

3a

5.7

900

46

1400

8/9T

420/3.1

CC 7/18

700x1800x600

300x270

215

3b

3b

3b

7.2

960

50

1600

8/9T

420/3.1

CC 7/20

700x2000x600

300x270

215

4a

4a

4a

7.6

1200

54

1800

8/9T

420/3.1

CC 7/22

700x2200x600

300x270

215

4a

4a

4a

7.6

1200

58

1950

8/9T

420/3.1

CC 7/24

700x2400x600

300x270

215

4b

4b

4b

9.6

1280

62

2200

8/9T

420/3.1

CC 7/26

700x2600x600

300x270

215

4b

4b

4b

9.6

1280

66

2300

8/9T

420/3.1

Activated carbon hood with a depth of 900 mm

Template

Dimensions WxLxH

A x B

c

Filter media and number of filters

Coal

Treated Air

Weight

Capacity*

Motor

Watts/Amps

(mm)

(mm)

(mm)

Inox Network

Synthetic

Coal

(kg)

(m 3 /h)

(kg)

(m 3 /h)

CC 9/10

900x1000x600

230x200

245

2c

2c

2c

4.8

640

36

1000

7/7

145/1.8

CC 9/12

900x1200x600

300x270

245

2d

2d

2d

6

700

40

1150

8/9T

420/3.1

CC 9/14

900x1400x600

300x270

215

3c

3c

3c

7.2

960

44

1400

8/9T

420/3.1

CC 9/16

900x1600x600

300x270

215

3c

3c

3c

7.2

960

46

1550

8/9T

420/3.1

CC 9/18

900x1800x600

300x270

215

3d

3d

3d

9

1050

50

1800

8/9T

420/3.1

CC 9/20

900x2000x600

300x270

215

4c

4c

4c

9.6

1280

54

2000

8/9T

420/3.1

CC 9/22

900x2200x600

300x270

215

4c

4c

4c

9.6

1280

58

2200

8/9T

420/3.1

CC 9/24

900x2400x600

300x270

215

4d

4d

4d

12

1400

62

2400

8/9T

420/3.1

CC 9/26

900x2600x600

300x270

215

4d

4d

4d

12

1400

66

2550

8/9T

420/3.1

Activated carbon hood with a depth of 1100 mm

Template

Dimensions WxLxH

A x B

c

Filter media and number of filters

Coal

Treated Air

Weight

Capacity*

Motor

Watts/Amps

(mm)

(mm)

(mm)

Inox Network

Synthetic

Coal

(kg)

(m 3 /h)

(kg)

(m 3 /h)

CC 11/12

1100x1200x600

300x270

215

2d

2d

2d

6

700

42

1450

8/9T

420/3.1

CC 11/14

1100x1400x600

300x270

215

3c

3c

3c

7.2

960

46

1650

8/9T

420/3.1

CC 11/16

1100x1600x600

300x270

215

3c

3c

3c

7.2

960

50

1900

8/9T

420/3.1

CC 11/18

1100x1800x600

300x270

215

3d

3d

3d

9

1050

54

2100

8/9T

420/3.1

CC 11/20

1100x2000x600

300x270

215

4c

4c

4c

9.6

1280

58

2400

8/9T

420/3.1

CC 11/22

1100x2200x600

300x270

215

4c

4c

4c

9.6

1280

62

2600

8/9T

420/3.1

CC 11/24

1100x2400x600

300x270

215

4d

4d

4d

12

1400

66

2850

8/9T

420/3.1

The electric fans installed on the hood are made up of single-phase, 230 Volt, 50 Hz motors.

Filter legend:

1. 400x400mm
2. 500x400mm
3. 400x500mm
4. 500x500mm

* : Average flow rate defined with passage speed under the hood of 0.30 m/s.
