BIOSYS 1 Biometric Fingerprint Reader Control Access CDVI
BIOSYS 1 is a stylish standalone biometric reader programmed with simple configuration and user cards instead of a PC and software. This fingerprint reader is made from the latest technologies, with a sleek design that suits all environments. Simply enrol the configuration card and then enrol users fingerprints matched to a unique ID card.
Management of 500 users can be achieved in this standalone mode, with its super simple enrolment process, completely standalone operation or utilising its wiegand output the BIOSYS1 is a cost effective way to improve your security system.
Technical Specifications
• Stored up to 500 fingerprint templates
• 26, 30 or 44-bit wiegand output
• MIFARE® reader
• 2 operating modes:
– Fingerprint only,
– Fingerprint + Card
• Remote controller, 6 wire cable between remote controller and the fingerprint reader (RS485 communication between remote controller and fingerprint reader)
• On-board Ethernet port (10/100 base T)
• 2 relay outputs (Lock & Alarm)
• REX and door contact input
• Accelerometer Tamper Switch
• 1 x master card and 10 x MIFARE® card included
• Power requirements: 12Vdc
• Mounted in solid aluminium housing
• Operating temperature: 0°C to +50°C (32°F to +122°F)

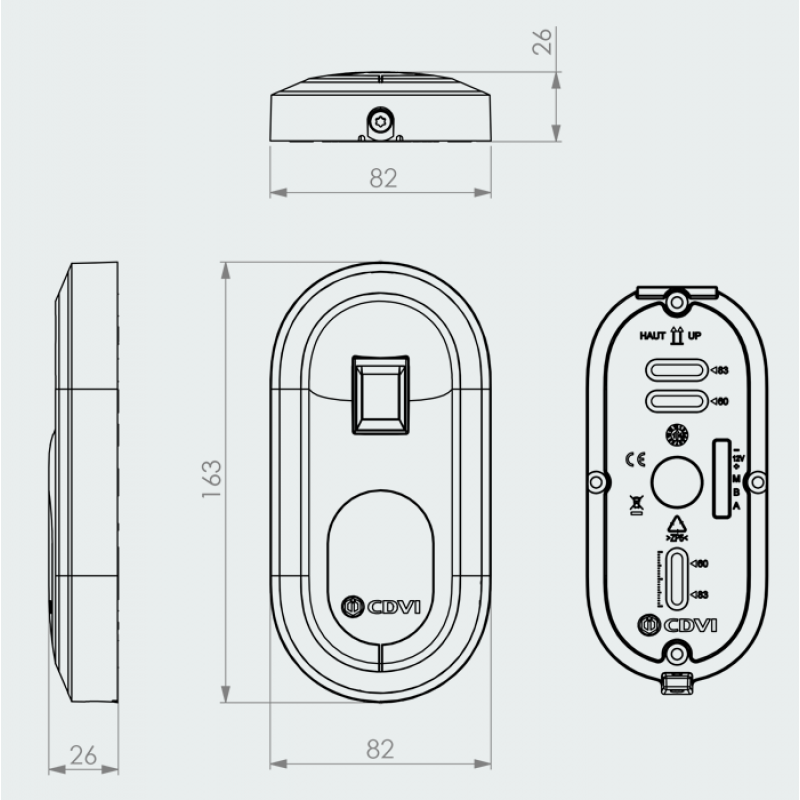

• Dimensions (H x L x D):
- Fingerprint reader = 163 x 82 x 26 mm (6.5” x 3.25” x 1”)
- Remote electronic = 147 x 124 x 55 mm (5.55” x 4.9” x 2.2”).
BIOSYS Biometric Reader 1
- Easier and faster installation of a Digicode® keyboard.
- Fingerprint programming in a few minutes.
- Ergonomic and elegant design for any environment.
- Fingerprint reader designed and designed using the latest technologies.

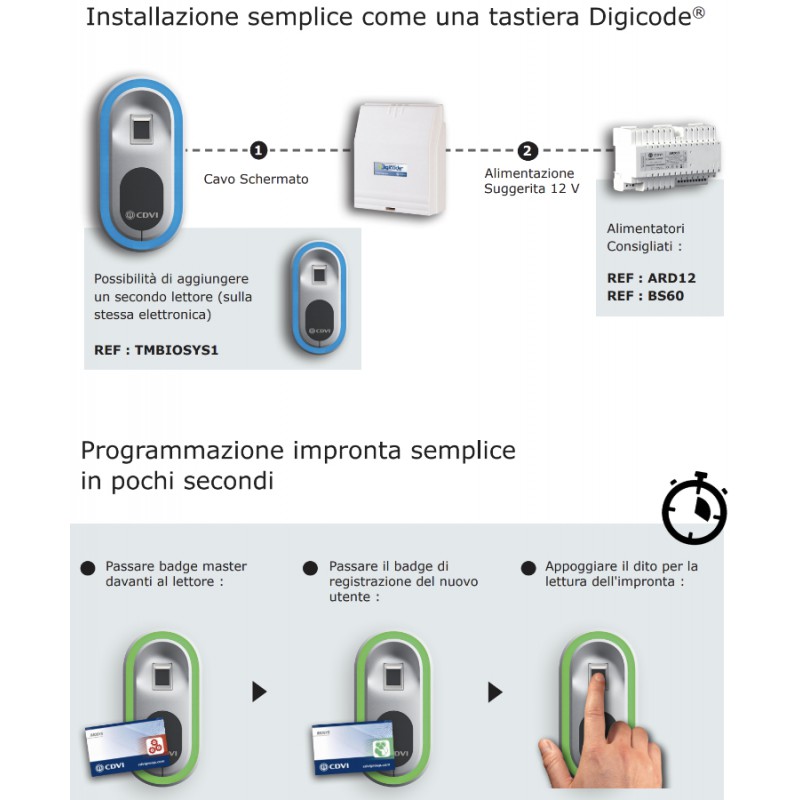

Quick and easy installation thanks to the autonomous BIOSYS 1 mode
No need for a PC or programmer: with the stand-alone BIOSYS 1 you can program fingerprints in just a few seconds directly on the reader through the registration cards. The installation of the reader and its electronics is as simple as that of a Digicode® keyboard.

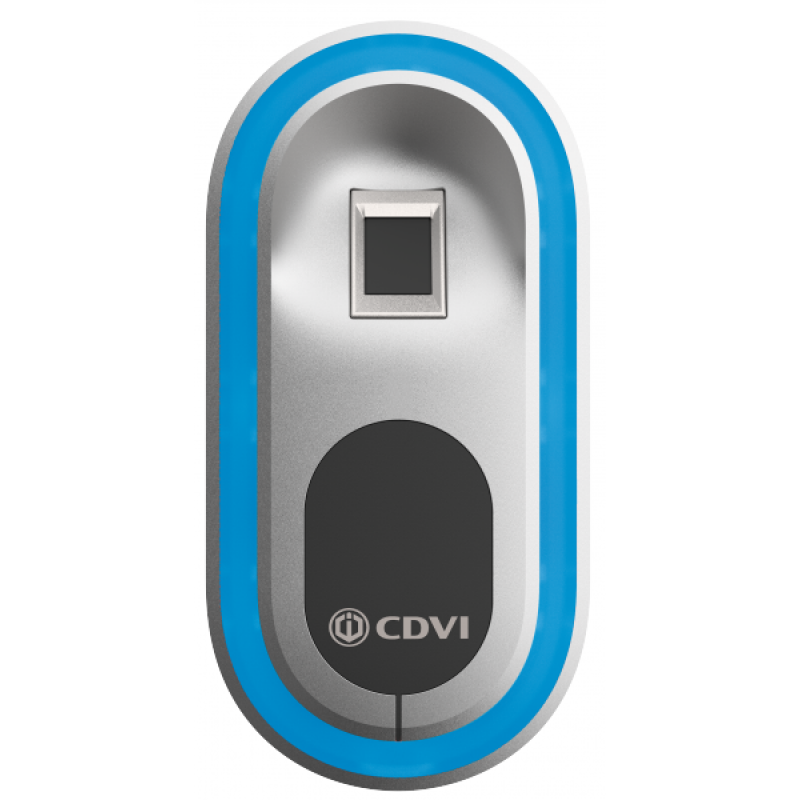

Elegant design that adapts to any environment
With its compact dimensions (163 x 82 x 26 mm), metal casing and luminous signaling, the BIOSYS 1 design fits elegantly in any environment (office, home, shops, supermarkets ...). Ergonomic but also robust, the BIOSYS 1 biometric sensor is coated with a scratch-resistant protective layer (up to 4 million pixels).
Latest technologies for your security
BIOSYS 1 biometric recognition is unique. It has been specially developed to detect fingerprints, whatever their peculiarities. BIOSYS1 uses an accelerometer sensor to ensure tampering or vandalism. The remote electronics manage and protect the access: the door can not be opened by tampering with the reader.
Biometrics for absolute security
Access rights can not be counterfeited, negotiated or false. The unique and inimitable identity of a digital fingerprint guarantees absolute security, while offering ease of use at the same time. Ensuring security for your property and people (up to 500 users) has never been so simple and easy.
CDVI: creator of electronic access solutions
A French SME with international influence, a manufacturer of solutions for access control and locking systems since 1985, CDVI Group maintains market leadership, innovation and cutting-edge design under the guidance of founder and CEO David Benhammou. Since its creation, the company has showed continued growth, and currently employs 250 international employees, a dozen sales offices worldwide and generates more than forty million euros in turnover.
