Chain actuator ACK4 RWA 24V 1 designed for smoke heat ventilation applications 1 push point Topp
ACK4 RWA synchronised for more push points Black Grey White

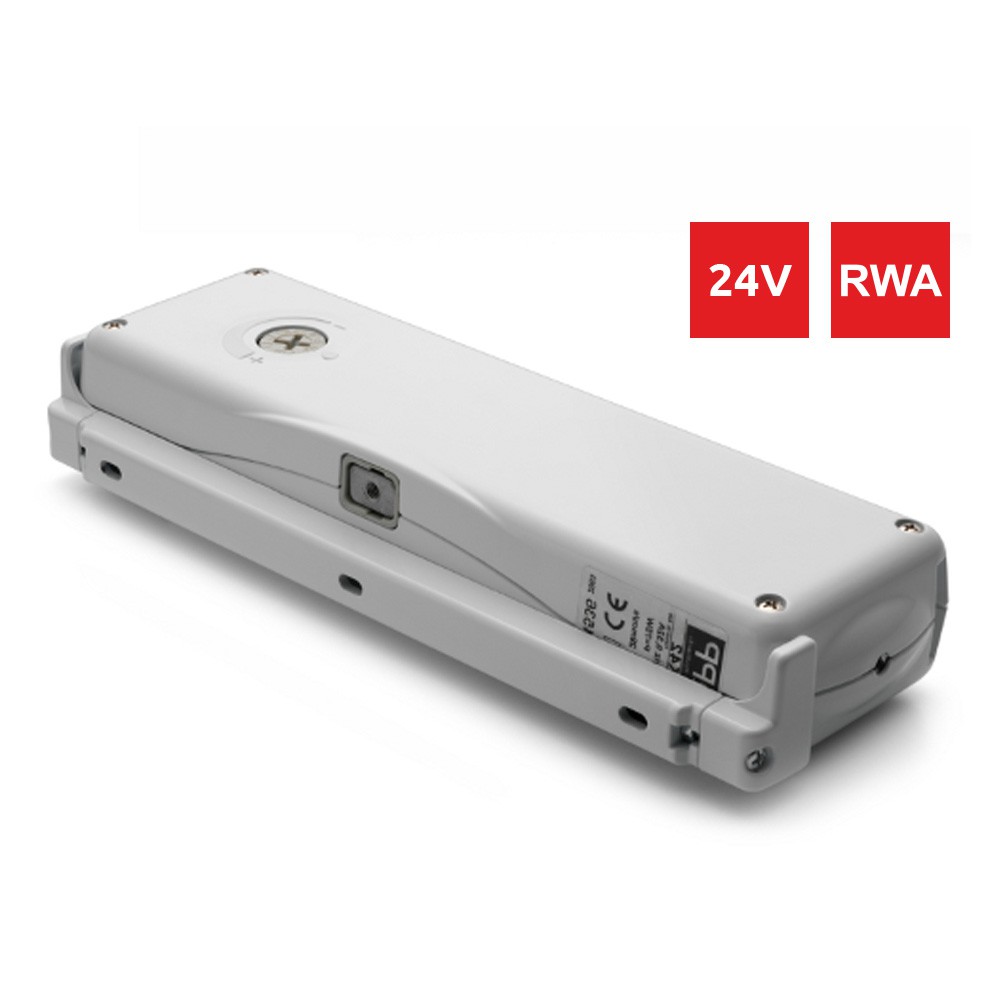

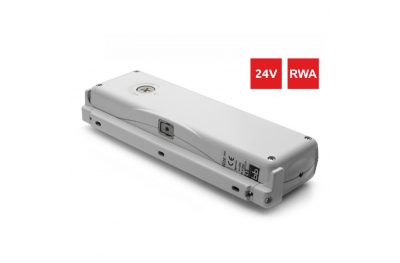

Electric actuator Topp model ACK4 RWA 24V with a double link articulated stainless steel chain, enclosed in a special diecast aluminum casing, painted with epoxy powders, with different mounting accessories for top and bottom hung windows.
CE marked device, complying with the EN12101-2 standard designed for smoke heat ventilation applications.

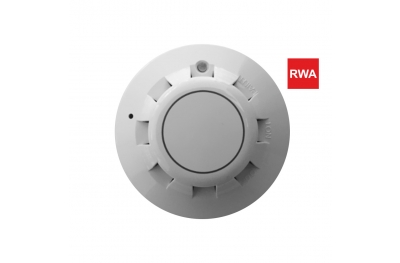

Can be used with RWA Control Panel and RWA Detectors (available separately on Windowo).
Description of the actuator
- Operation at 24V;
- Max. stroke 40cm, adjustable at 100, 150, 200, 205, 300, 350, 400mm by an external handgrip;
- Electronics with acoustic device that warns of any eventual incorrect installations;
- Protection degree of electric devices IP55;
- CE marked device, complying with the EN12101-2 standard designed for smoke heat ventilation applications.
ACK4 RWA 24V for more push points

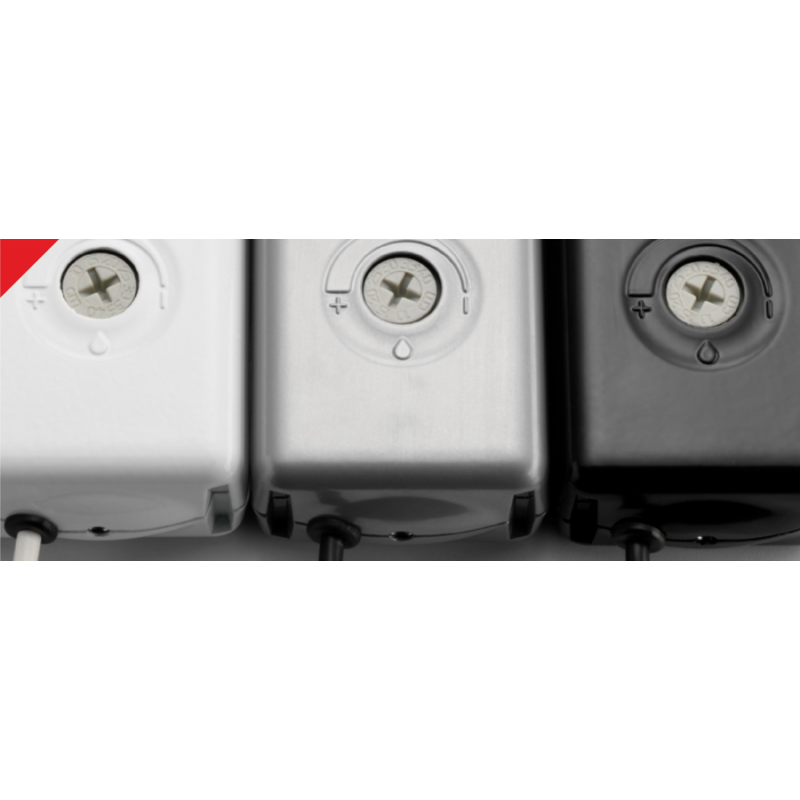

Choose the version of your Topp actuator:
- 3A11#000003993 - Black;
- 3A11#000004017 - Grey;
- 3A11#000003992 - White.
Application of the actuator
Choose the application of your Topp chain actuator:
- Application for Top-hung windows: standard;

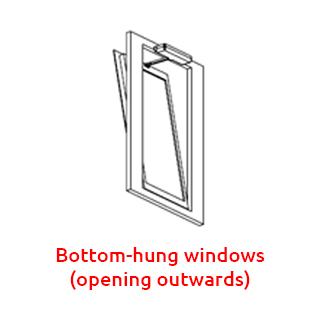

- Application for Bottom-hung windows: with upper bracket black color (RWA version).
Why choose ACK4 RWA Topp?
- Complying with the EN12101-2 standard designed for smoke heat ventilation applications;
- Easy stroke adjustment;

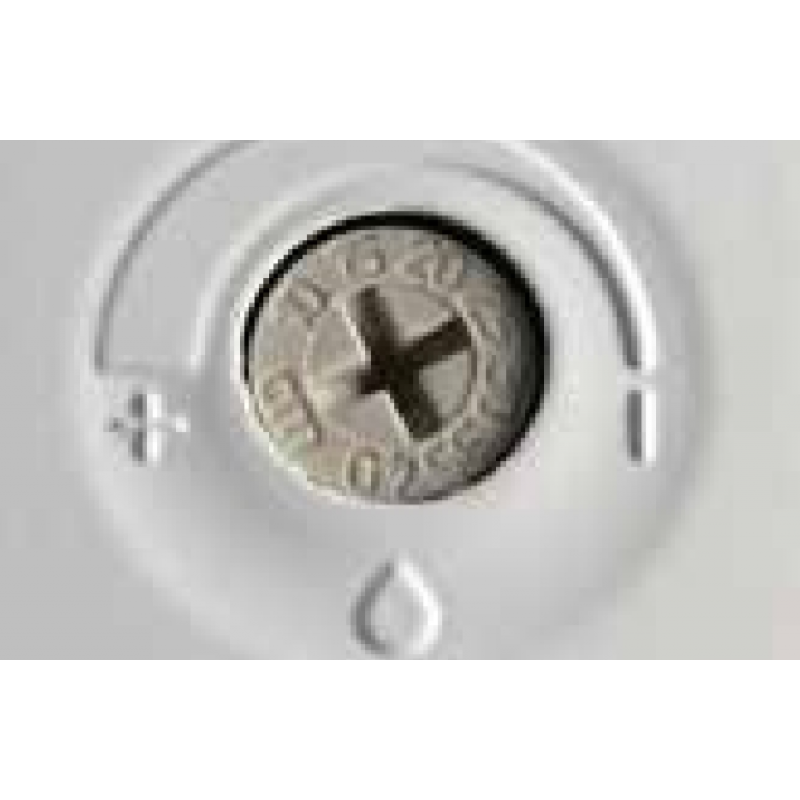

Easy stroke adjustment (7 positions from 100 to 400mm) - International patent.

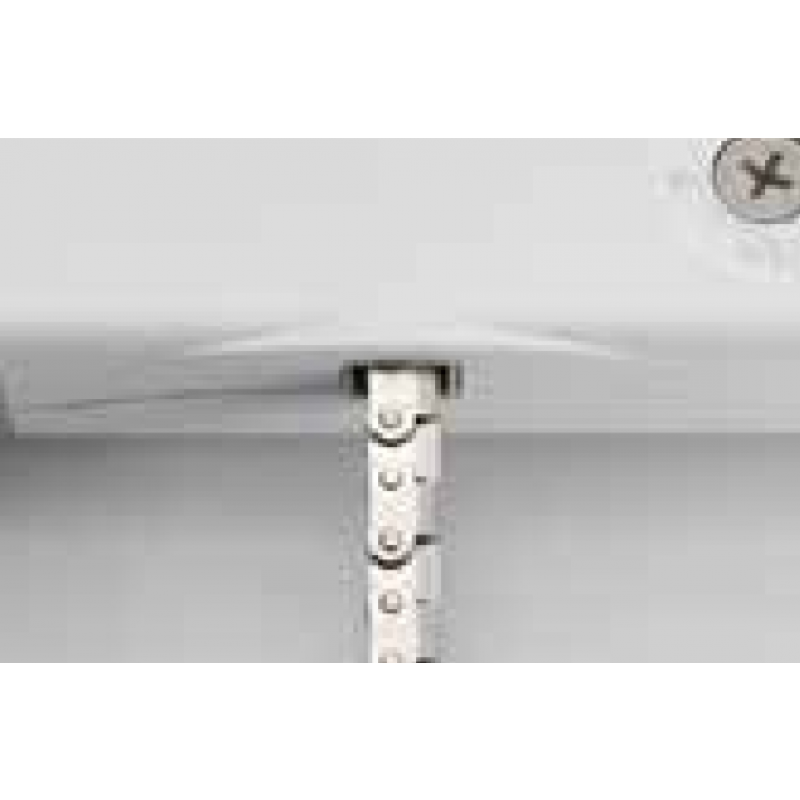

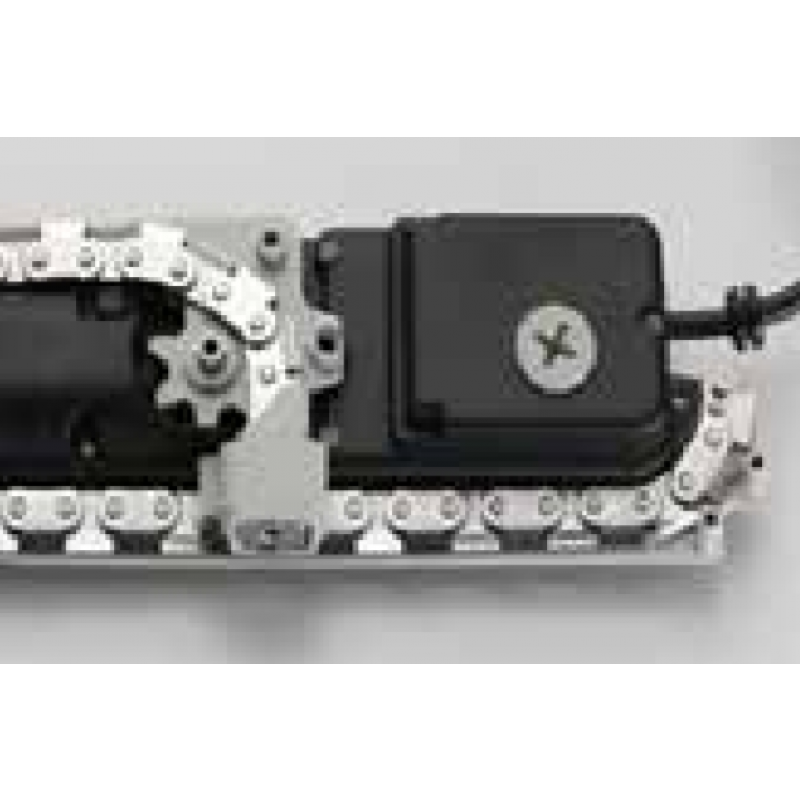

Double link articulated stainless steel chain.
High protection IP 55 rated.
Technical characteristics of the actuator
- Power supply voltage: 24V;
- Maximum applicable load in thrust: 300N;
- Maximum applicable load in traction: 300N;
- Strokes: 100, 150, 200, 250, 300, 350, 400mm;
- Absorbed current: 1,35A;
- Idle translation speed: 17mm/sec;
- Duration of the idle stroke: 23sec:
- Double insulated: yes;
- Service type: S2 of 3min;
- Operating temperature: -5° +50°C;
- Protection degree of electrical devices: IP55;
- Stroke end adjustment to the window frame (in closing): 10mm;
- Parallel connection of two or more ACK4: yes;
- Chain position control: yes;
- Stroke end: encoder;
- Acoustic device that warns of any eventual incorrect installations (buzzer): yes;
- Dimensions: 288,5x83x47,8mm;
- Weight: 1,9kg.

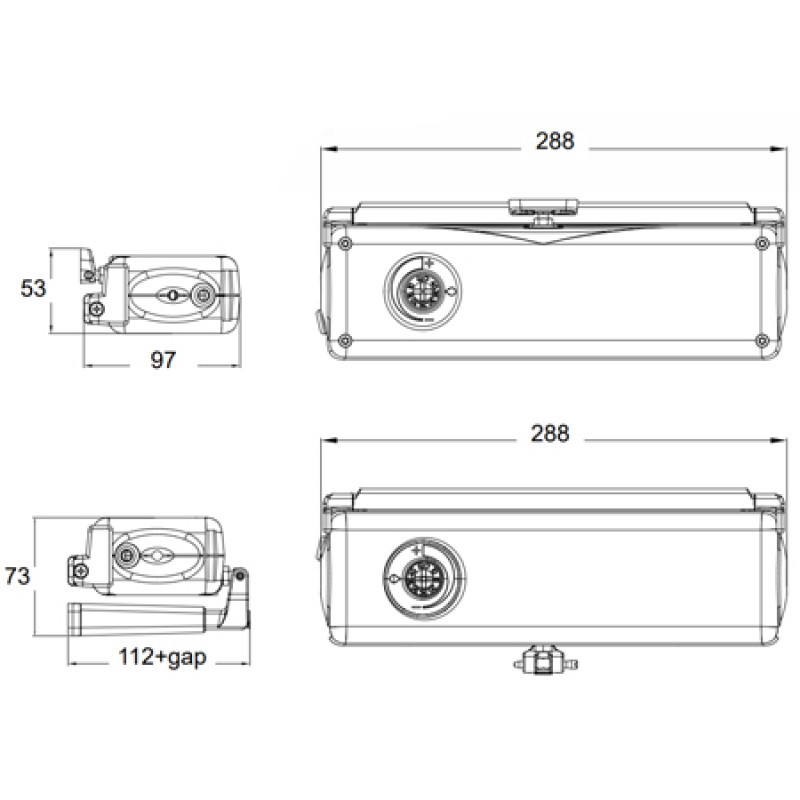

Dimension of the actuator
Dimensions are in millimetres.
Applications of the actuator
Top-hung windows, bottom-hung windows, skylights, roof windows, cupolas.
What is included?
Chain actuator, brackets set for top/bottom hung windows.
