Half Cylinder 40mm with Construction and Owner's Key Satin-Chromed Brass IBFM

IBFM
Brands: IBFM
Code: 2309040CS
-10%
£ 9,33 £ 10,37
Prices excluding VAT

- +

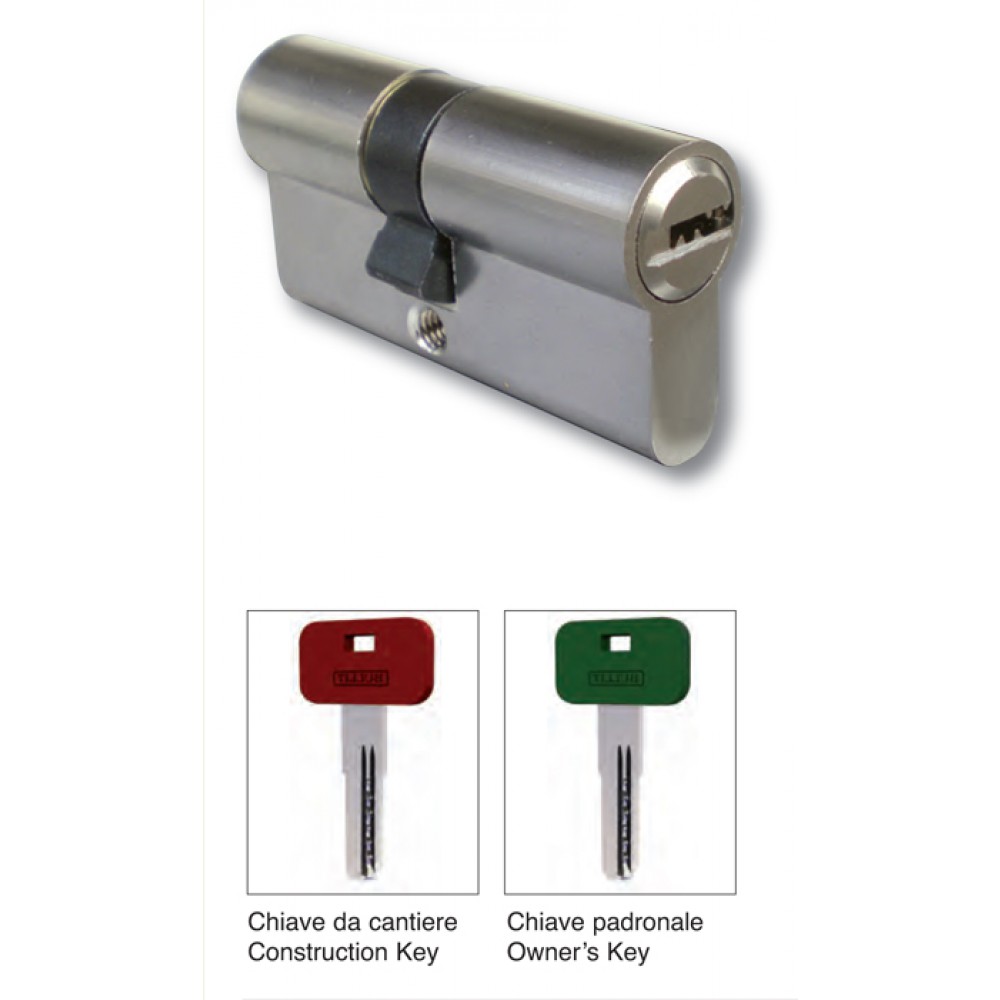

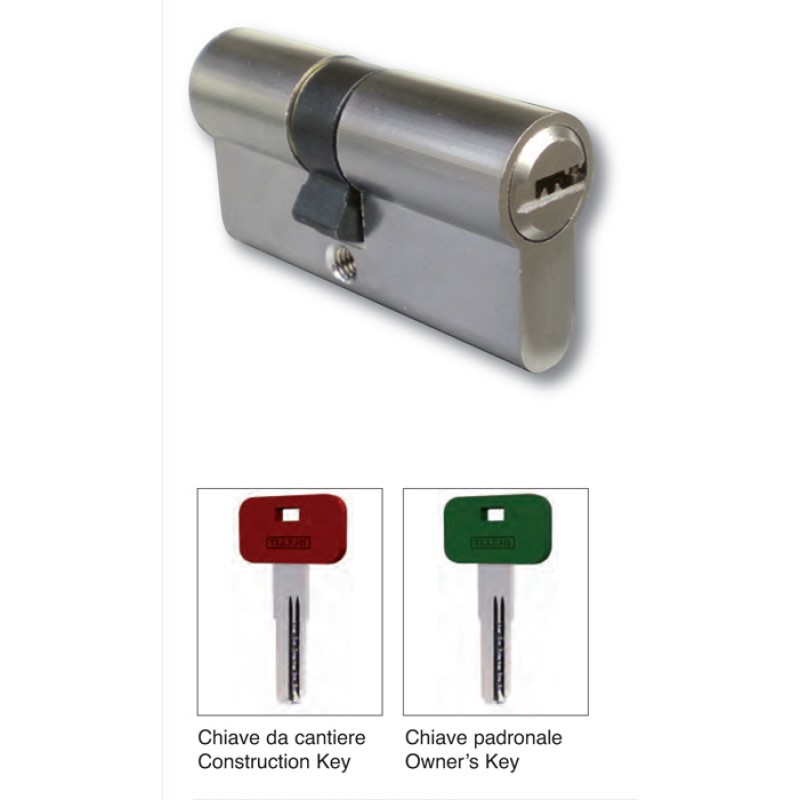

Half Cylinder 40mm with Construction and Owner's Key Satin-Chromed Brass IBFM

Article for wooden, metallic and aluminium carpentry. Satin-chrome brass with adjustable cam.

Provided with: 1 construction key, 1 owner's key, 1 M5x70 screw, 1 card for duplication.

Possibility: 10 groups.

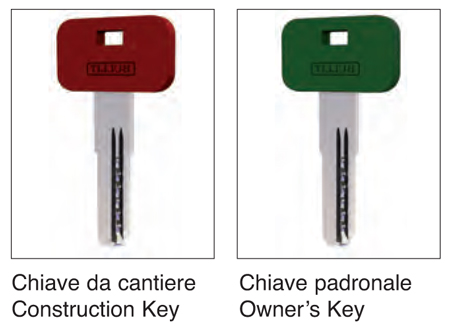

ibfm keys

The red key must be used only during construction. Once you put the owner's key on the both sides of the cylinder and you do a complete turn of the key, it sets the construction key off.

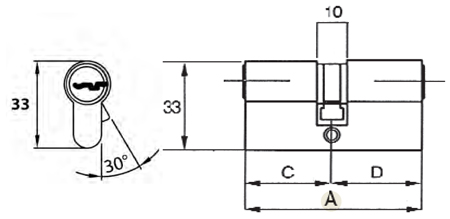

 C mm  40
 A mm  30
 B mm  10

half cylinder with construction key ibfm

IBFM - Industria Briantea Ferramenta Minuteria
Established in 1947 as family company in Monza, IBFM has been working for more than 60 years on the hardware market becoming one of the most important manufacturers in the gate accessories field. In this way, IBFM links its long experience in this sector with a strong research of new markets and quality products, fulfilling all the small but important customers' needs.
