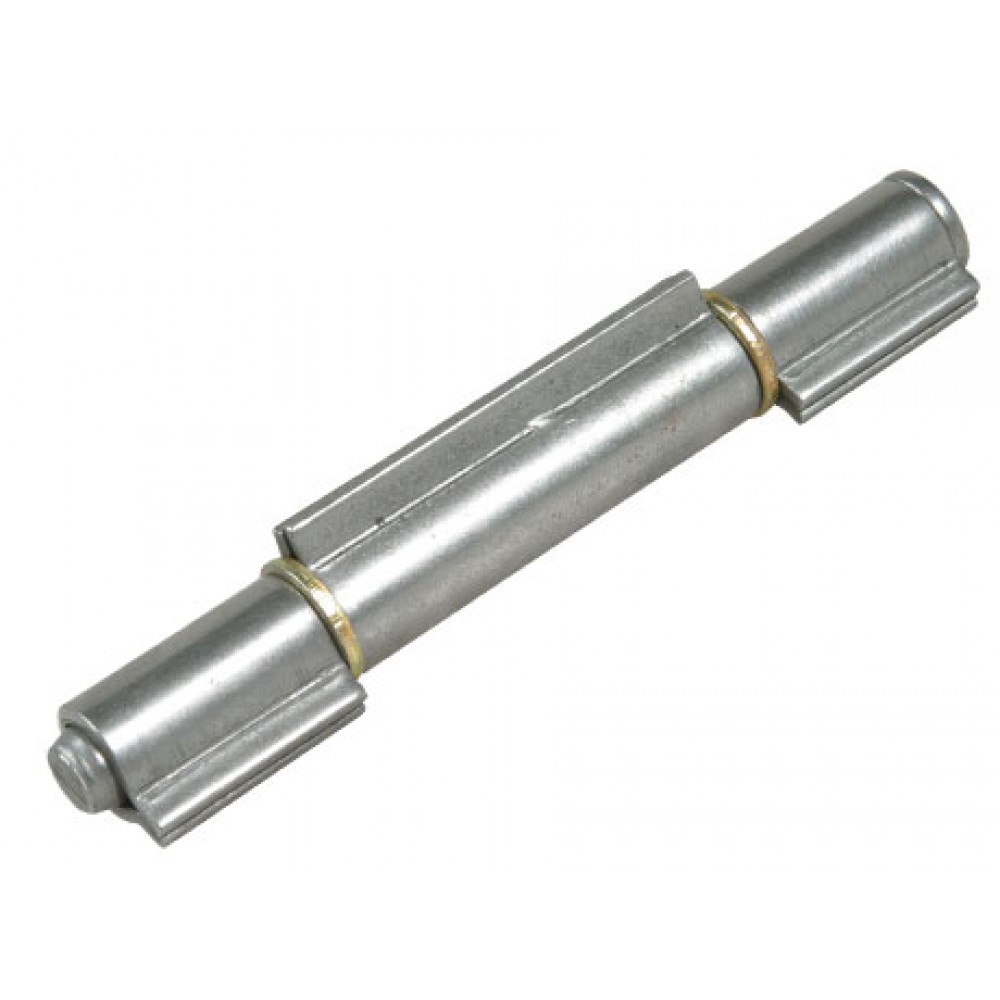

Hinges to Weld 3 Wings Removable Pin Steel IBFM
White galvanized pin and washer - natural steel wings.

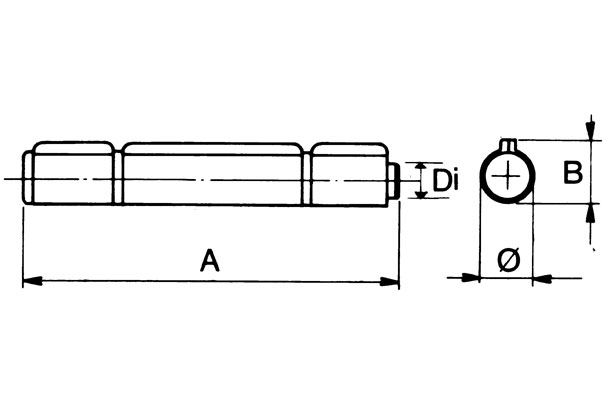

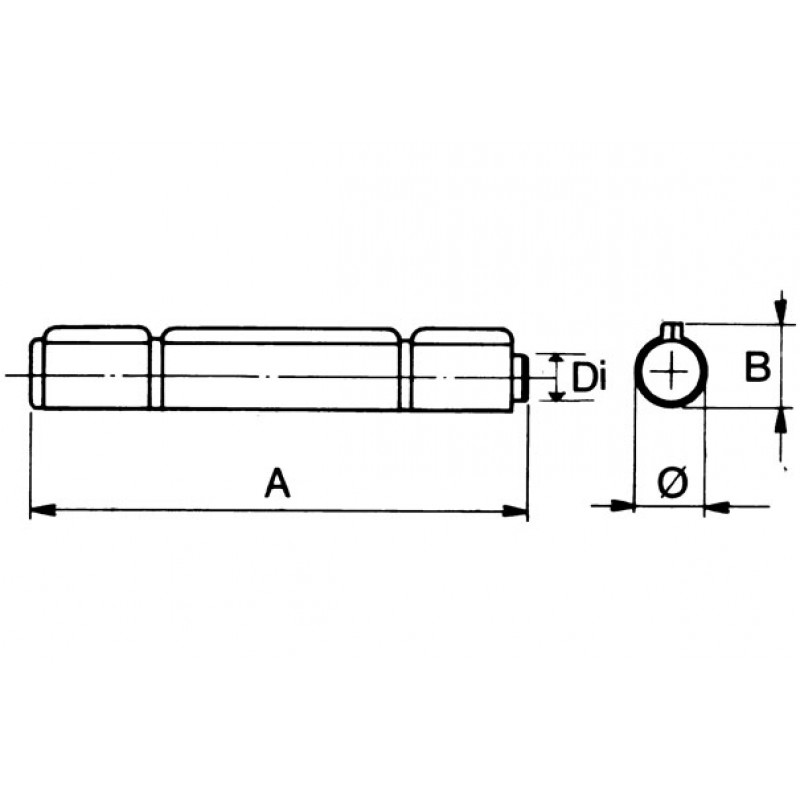

Choose the characteristics of the hinge according to the length of A:
| A mm |
80 |
100 |
120 |
140 |
170 |
200 |
| Ø mm |
12 |
13,5 |
15 |
16,5 |
17,5 |
20 |
| B mm |
16,5 |
18 |
19,5 |
22 |
23,5 |
27 |
| D mm |
8 |
8,5 |
10 |
10,5 |
12 |
14 |
| Capacity kgx2 |
50 |
90 |
100 |
100 |
120 |
140 |
IBFM - Industria Briantea Ferramenta Minuteria
Established in 1947 as family company in Monza, IBFM has been working for more than 60 years on the hardware market becoming one of the most important manufacturers in the gate accessories field. In this way, IBFM links its long experience in this sector with a strong research of new markets and quality products, fulfilling all the small but important customers' needs.
