Hood in Stainless Steel Snack Pro Full Optional

Brands: OndaInox

Code: CSP

£ 1.081,87

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

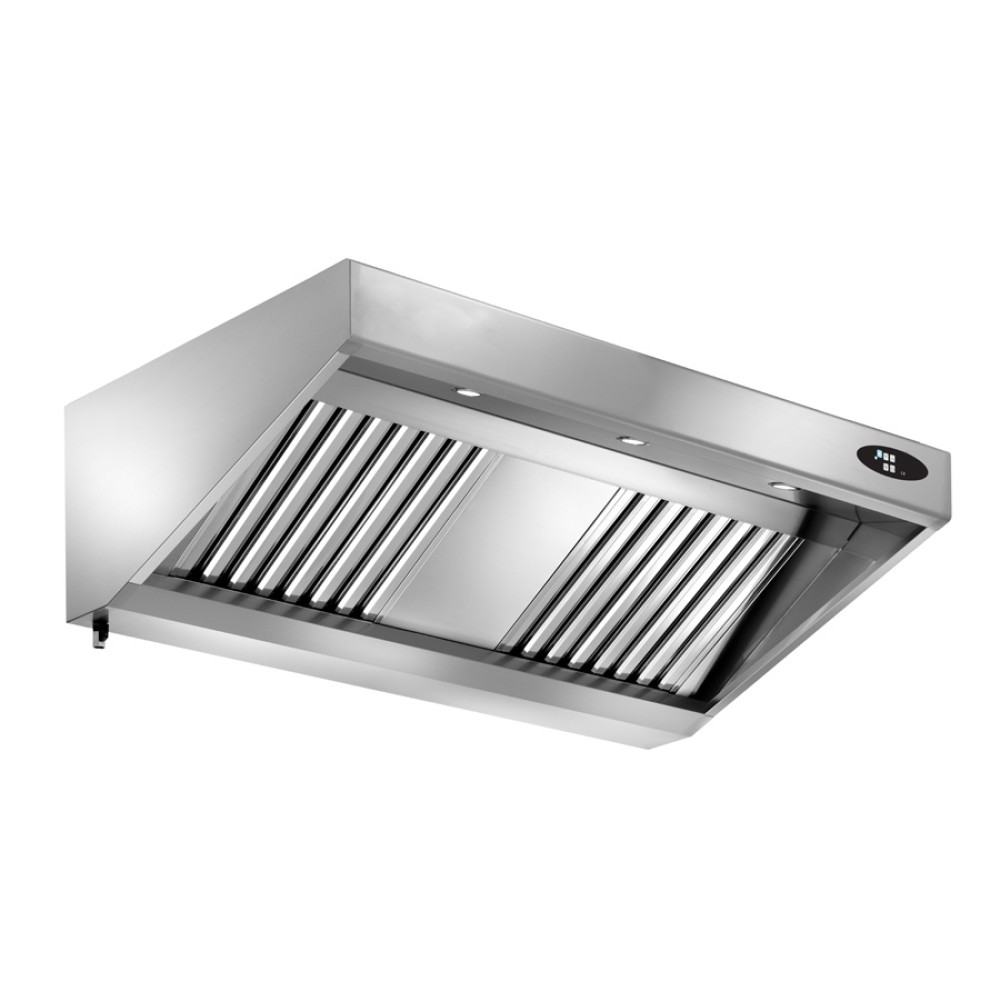

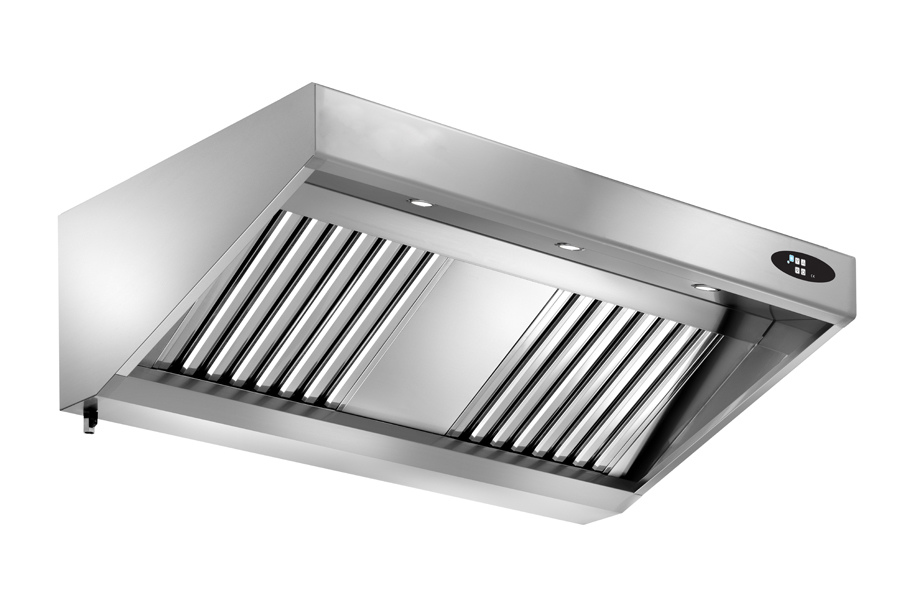

Stainless Steel Hood Snack Pro - Electric fan, speed regulator and LED lighting

The Snack Pro Hoods are Snack hoods complete as standard with an electric fan, speed regulator and integrated LED lighting , all pre-wired and ready for hanging and connection to the electricity mains.

The particular profile makes it ideal for cooking blocks with a depth of 60-70 cm , positioned against the wall, even in cases of low ceilings.

Construction in AISI 430 , Scotch-Brite satin finish. Completely edged, even in the internal parts, including electric fan.

Assembled by electro-welding. Special executions (execution in AISI 304, assembly by welding) on request.

Hood in Stainless Steel Snack Pro Full Optional

Stainless Steel Hood Snack Pro - Supplied

Labyrinth filters in AISI 430 stainless steel;
Centrifugal electric fan 220V single-phase 50/60Hz;
Condensate drain 1/2”;
Integrated LED strip lighting.

Notes on Snack Pro Stainless Steel Hood

Packing included;
Hanging kit and flange not included;
The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CS711 = CS712).

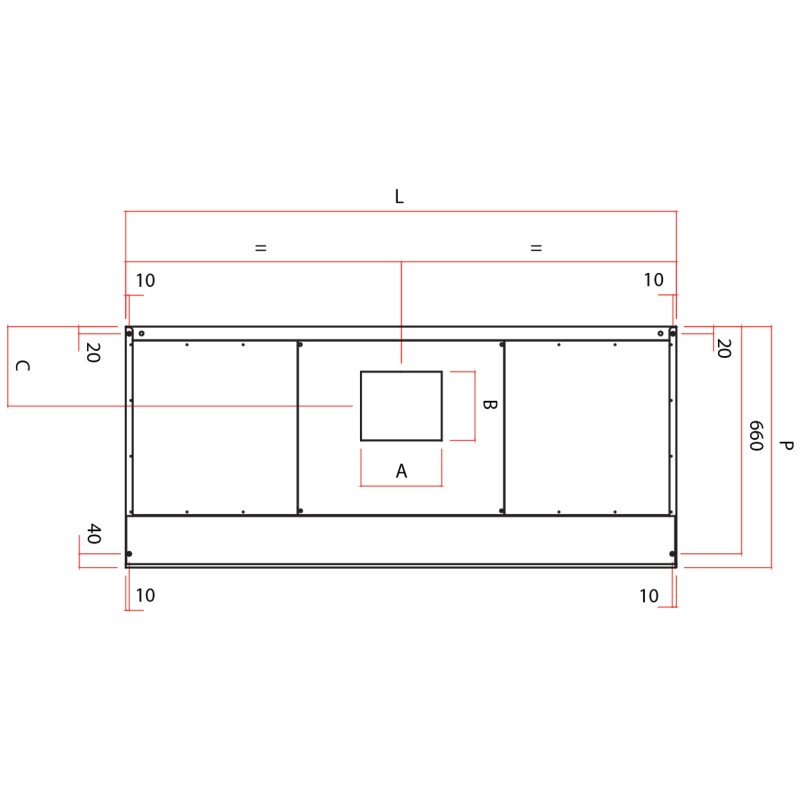

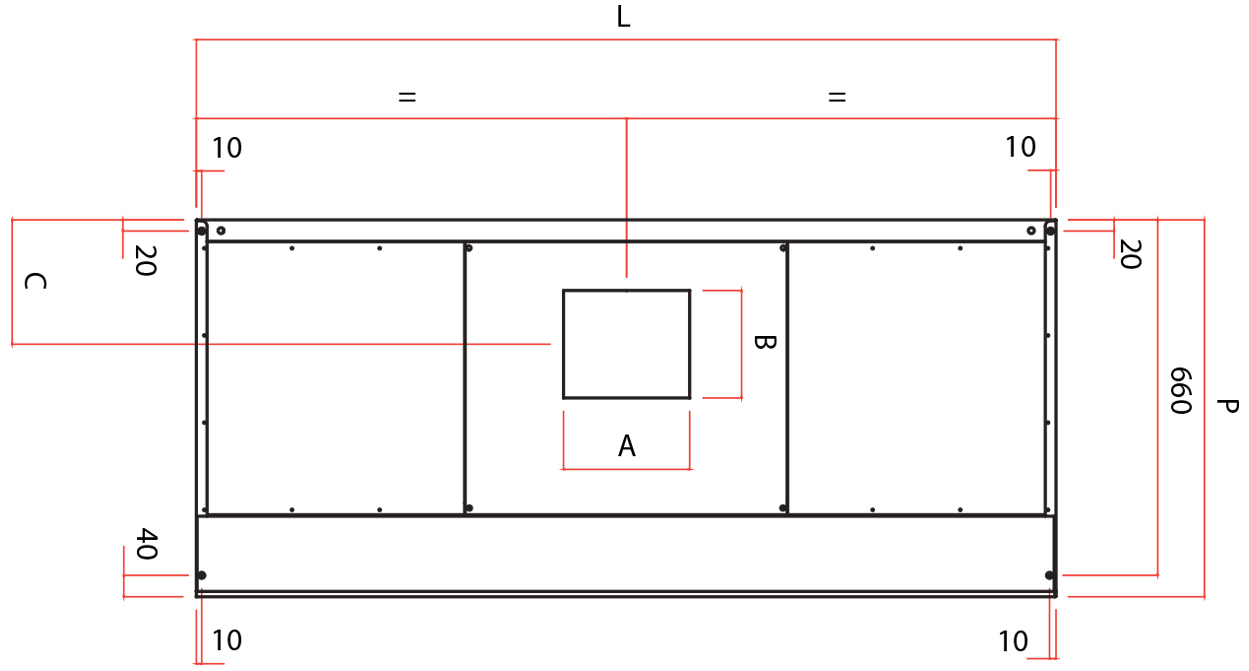

Stainless Steel Hood Snack Pro - Depth 700 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Motor	No. of LEDs (4W each)
CSP 7/10	700x1000x450	230x200	230	2a	40	7/7	2
CSP 7/12	700x1200x450	230x200	230	2b	42	7/7	2
CSP 7/14	700x1400x450	230x200	230	2b	47	7/7	2
CSP 7/16	700x1600x450	230x200	230	3a	51	7/7	3
CSP 7/18	700x1800x450	230x200	230	3b	54	7/7	3
CSP 7/20	700x2000x450	300x260	210	4a	59	9/9T	4
CSP 7/22	700x2200x450	300x260	210	4a	62	9/9T	4
CSP 7/24	700x2400x450	300x260	210	4b	65	9/9T	4
CSP 7/26	700x2600x450	300x260	210	4b	68	9/9T	4
CSP 7/28	700x2800x450	300x260	210	5b	72	8/9T	5
CSP 7/30	700x3000x450	300x260	210	5b	75	8/9T	5

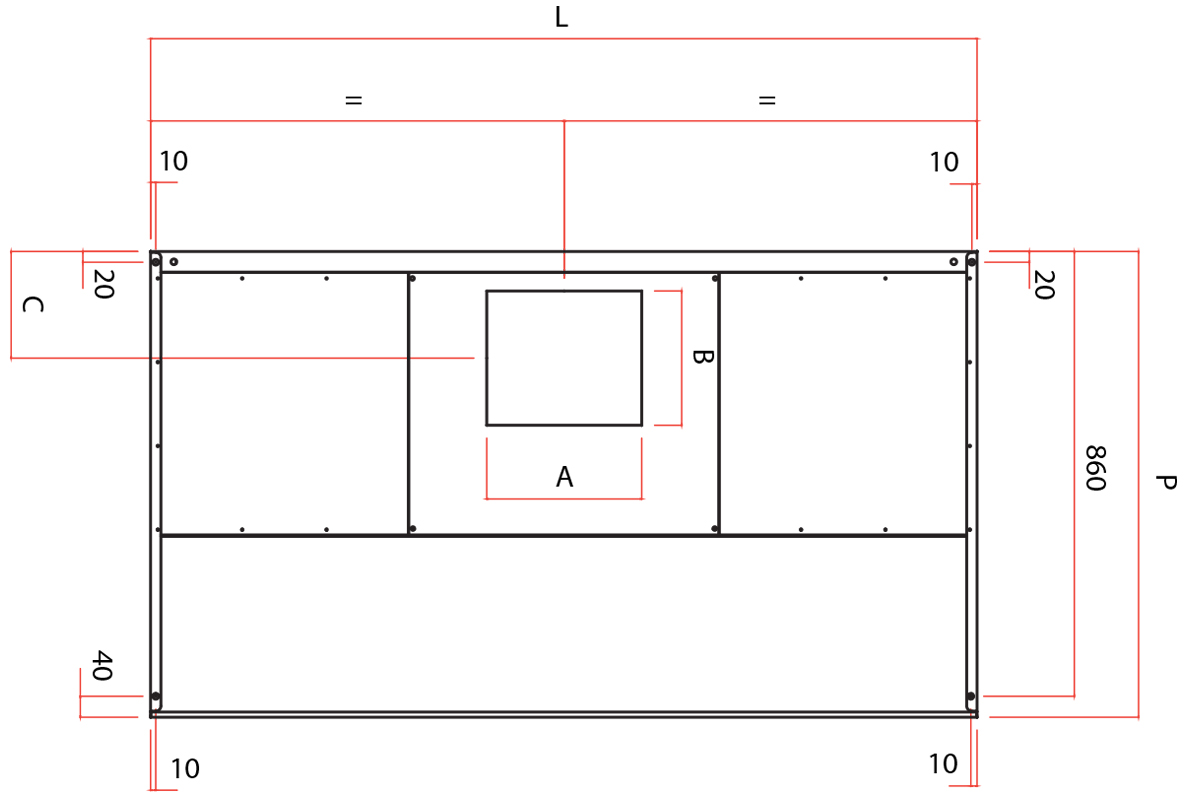

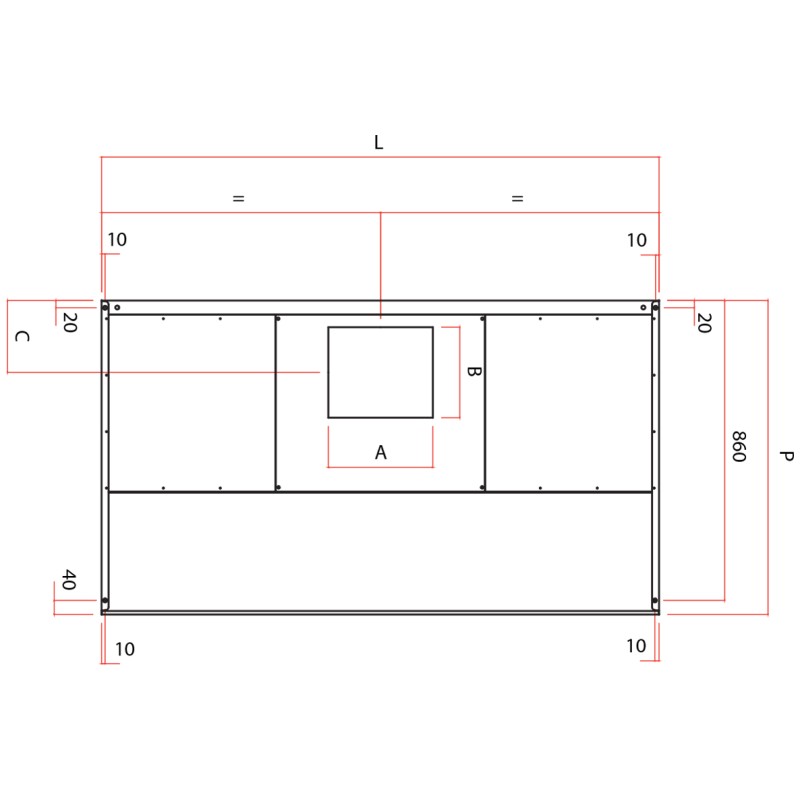

Stainless Steel Hood Snack Pro - Depth 900 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Motor	No. of LEDs (4W each)
CSP 9/10	900x100x450	230x200	230	2a	42	7/7	2
CSP 9/12	900x120x450	230x200	230	2b	46	7/7	2
CSP 9/14	900x140x450	230x200	230	2b	51	7/7	2
CSP 9/16	900x160x450	300x260	210	3a	55	9/9T	3
CSP 9/18	900x180x450	300x260	210	3b	58	9/9T	3
CSP 9/20	900x200x450	300x260	210	4a	63	9/9T	4
CSP 9/22	900x220x450	300x260	210	4a	67	9/9T	4
CSP 9/24	900x240x450	300x260	210	4b	70	8/9T	4
CSP 9/26	900x260x450	300x260	210	4b	77	8/9T	4
CSP 9/28	900x280x450	300x260	210	5b	82	8/9T	5
CSP 9/30	900x300x450	300x260	210	5b	86	8/9T	5
