KIT AG-FUTURE 230V VDS Automation for Sliding Gate

VDS
Brands: VDS
Code: AG-FUTURE 230V
-50%
£ 210,31 £ 420,61
Prices excluding VAT

- +

KIT AG-FUTURE 230V VDS - Automation for Sliding Gate

KIT AG-FUTURE 230V VDS model, which includes a 230 Vac sliding gate automation .

It includes an AG-FUTURE VDS sliding gate gearmotor and what is needed to automatically move the sliding gate leaves.

Choose the gate kit version you want (select the variant):
  • KIT AG-FUTURE 230V VDS for gates up to 800 kg;
  • KIT AG-FUTURE 230V VDS for gates up to 1000 kg;
  • KIT AG-FUTURE 230V VDS for gates up to 1600 kg.

KIT AG-FUTURE 230V VDS Automation for Sliding Gate

Advantages KIT AG-FUTURE 230V VDS for sliding gate automation

  • Motor for sliding gates from 800 kg to 1600 kg;
  • Gearmotor casing in painted die-cast aluminum;
  • Machined from solid steel and cast iron gears;
  • Stator and mechanical parts in oil bath, excluding the 800 kg grease-lubricated version;
  • Control equipment with radio receiver and antenna, in a special container with Aerstop gasket to protect against humidity and insects;
  • Pre-wiring and easy-to-program software;
  • High Performance electric motor;
  • Manual lever release with personalized key;
  • Electronic torque regulation;
  • Anti-crushing device (EN 12453);
  • Speed slowdown (EN 12453);
  • Maximum silent operation;
  • Soft Star- Soft Stop.

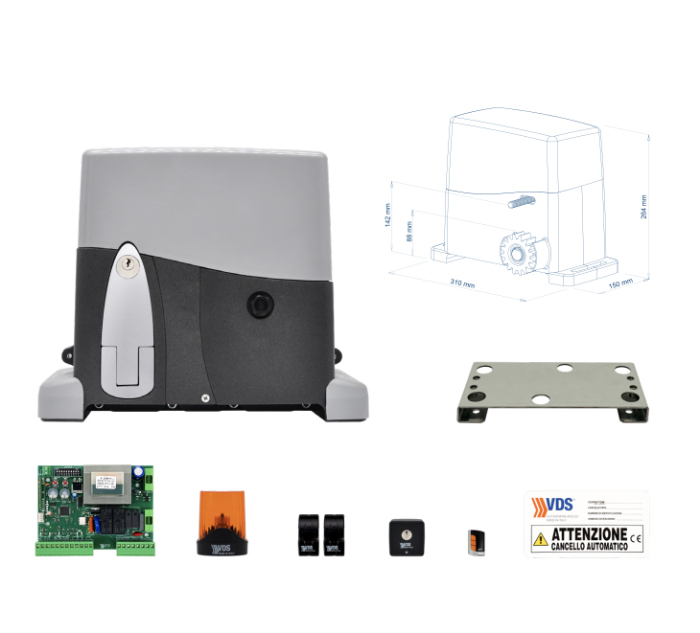

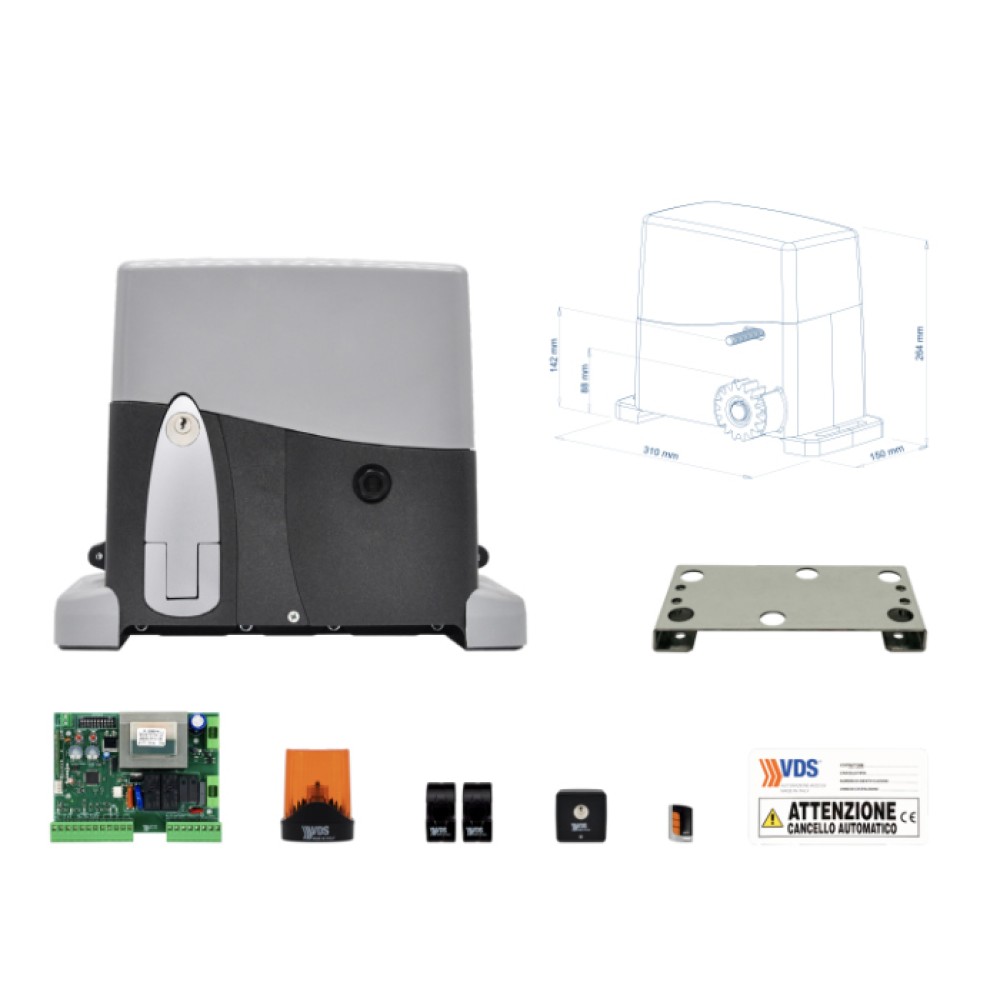

What does the AG-FUTURE 230V VDS KIT include?

  • Gearmotor;
  • Counterplate;
  • 230V control unit;
  • Pair of photocells;
  • LED flasher;
  • Key selector;
  • Transmitter;
  • Warning sign.

KIT AG-FUTURE 230V VDS Automation for Sliding Gate

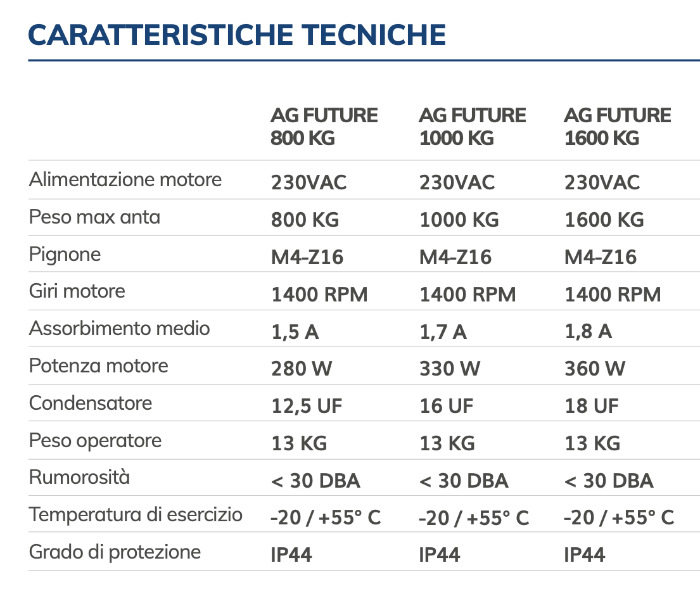

Technical features KIT AG-FUTURE 230V VDS

  • Motor power supply: 230VAC;
  • Max leaf weight: 800-1600 KG;
  • Pinion: M4-Z16;
  • Engine revolutions: 1400 RPM;
  • Average absorption: 1.8 A;
  • Motor power: 360 W;
  • Capacitor: 18 UF;
  • Operator weight: 13 KG;
  • Noise: <30 DBA;
  • Operating temperature: -20 ° / + 55 ° C;
  • Degree of protection: IP44.

VDS Automazioni per Cancelli Made in Italy

VDS Automation for Sliding Gate for Sale Online

VDS Automazioni has been working in the automation sector for more than thirty years. It is an Italian company that manufactures automation of gates, barriers, automatic doors and much more.

The VDS gate automation kits are produced in Italy by specialized personnel with high quality raw materials.

Online sale of the best automations for VDS gates on Windowo in special offer.
