Adjustable Shutters Crank - Mini in Zamak - Rotary Chamber 25/36
The

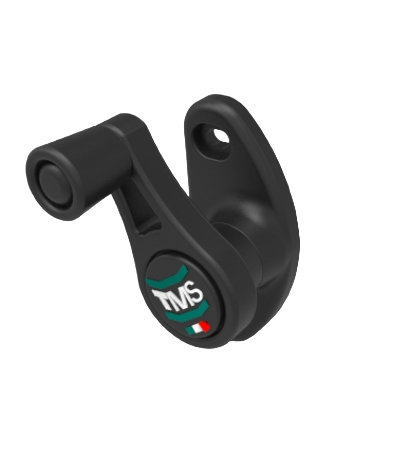

Mini TMS Zamak crank can be mounted on
all Tecnometalsystem adjustable shutter mechanisms .
The device is assembled with the
rotary mechanism mounted both on chamber doors 24-25 and on chamber doors 35-36 (select the one you want).

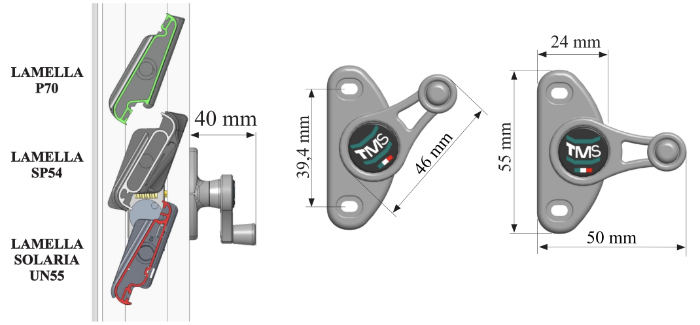

This zamak crank for shutters has a footprint from the plane of the door of 40 mm.
The TMS adjustable shutter handle can be mounted on all types of slats.
Hole position for handle assembly
The rotary positioning hole is made using a 9 mm diameter drill bit and drilling according to the profile.
Mini shutter crank versions in Zamak Technometalsystem
You can buy 2 different
versions of the Mini Tecnometalsystem Zamak crank.
Select the version you want according to your need.
What are the versions of the Tecnometalsystem MINI IN ZAMAK crank? Here's the list:

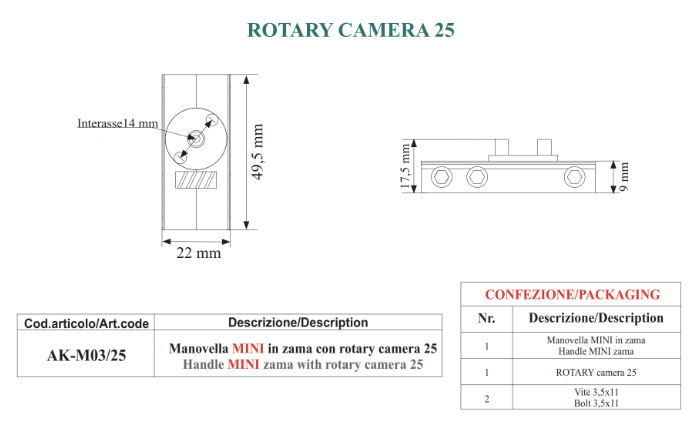

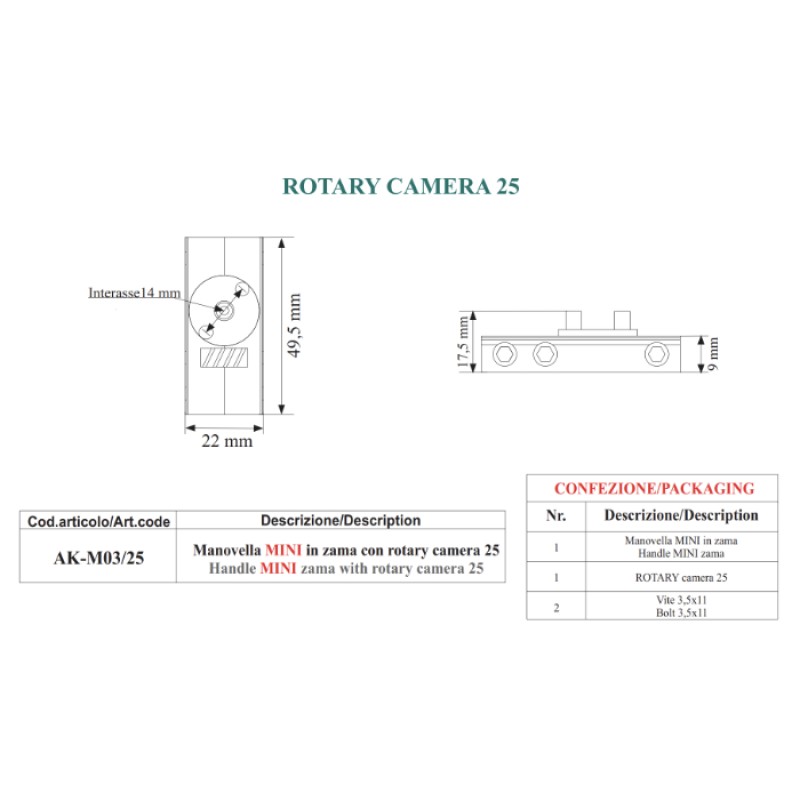

- AK-M03 / 25 : MINI ZAMAK crank with rotary camera 25;

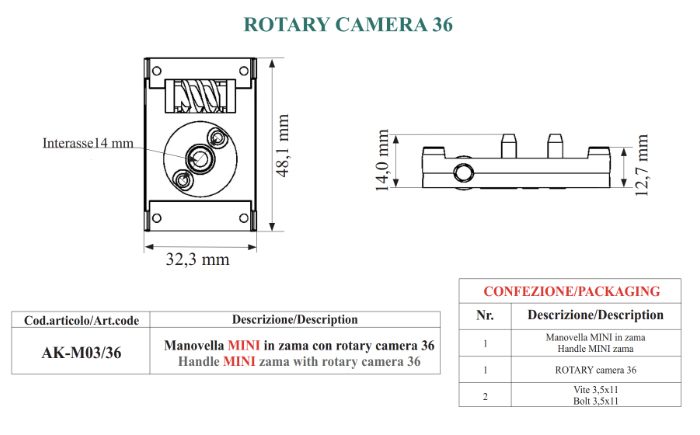

- AK-M03 / 36 : MINI ZAMAK crank with rotary camera 36.
The package includes the shutter crank of the selected code and two 3.5x11 mm screws.
For more information, we recommend that you read the technical data sheets (click on DOCUMENTS).
What are the colors of the Tecnometalsystem shutter crank?
Each version can be ordered in black or colored version.
The
standard version is black . The colors of
the colored version are: white, gray, brown, dark brown or green.
If you decide to buy the colored device we will ask you later which of these colors you would like to receive.
Tecnometalsystem shutter cranks at the best prices
Tecnometalsystem (TMS) produces
cranks for adjustable shutters in Italy.
TMS's goal is to help customers find the best solution by guaranteeing the quality and functionality of the product.
