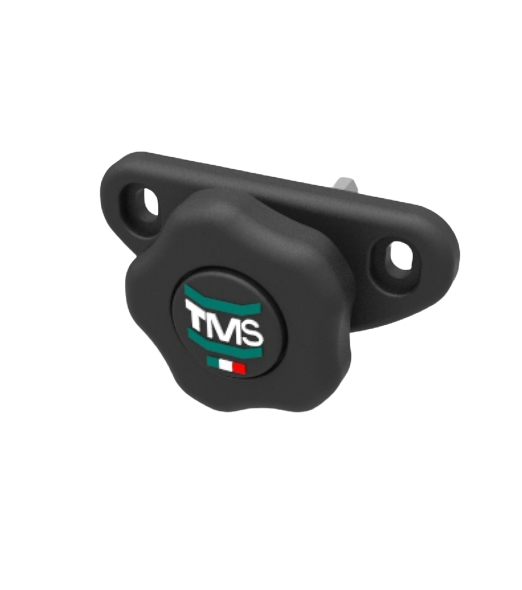

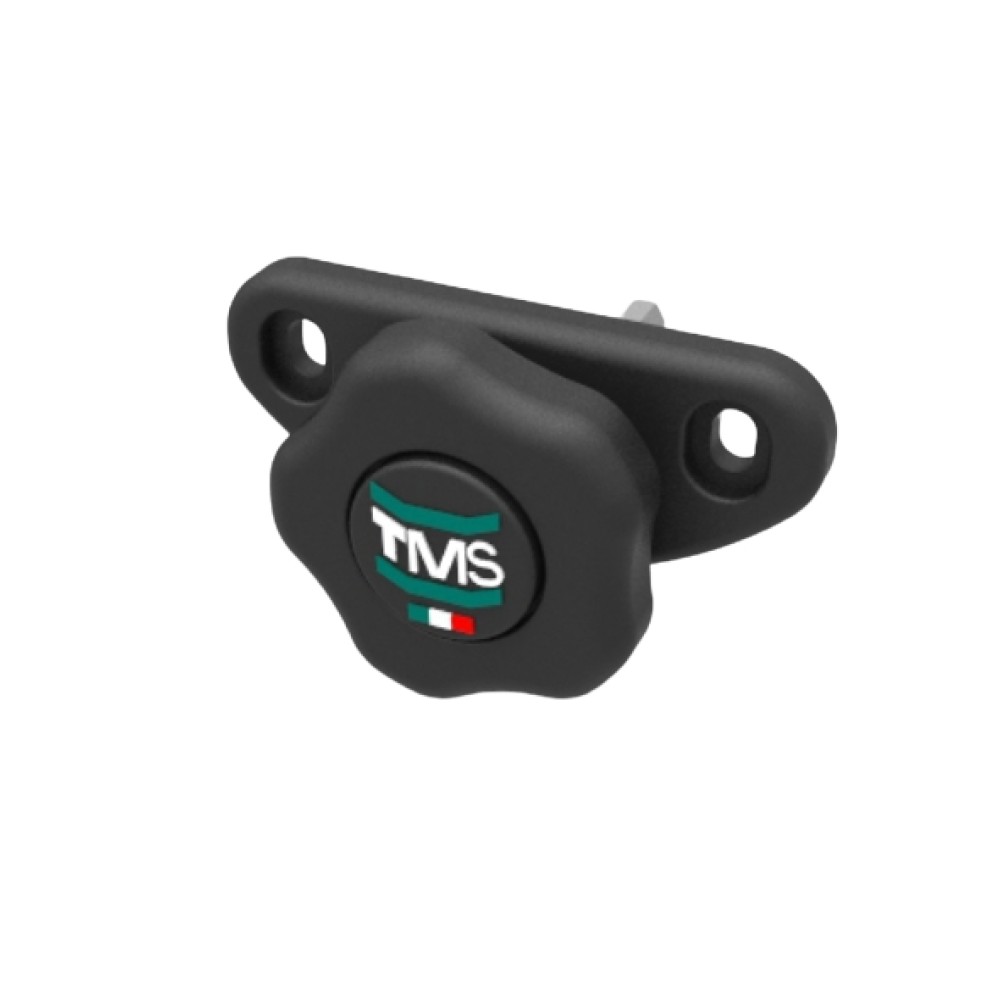

Shutter Handle - Lowered Pommel - Tecnometalsystem
The
lowered knob handle , while taking up the design of the classic knob for opening / closing the adjustable shutter, has been studied with the aim of
reducing the overall dimensions to a minimum through a patented system.
It can be mounted on all Tecnometalsystem adjustable shutter mechanisms.
It is assembled with the
rotary mechanism and mounted on both chamber doors 24-25 and chamber doors 35-36.

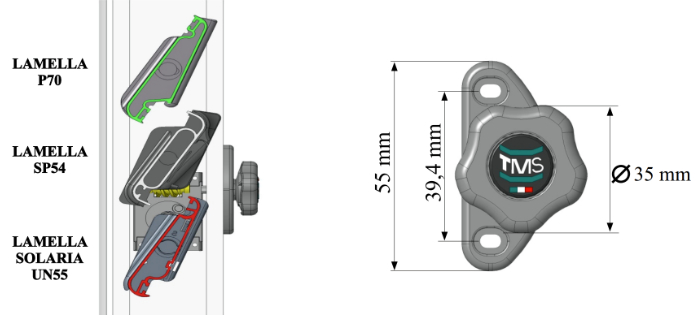

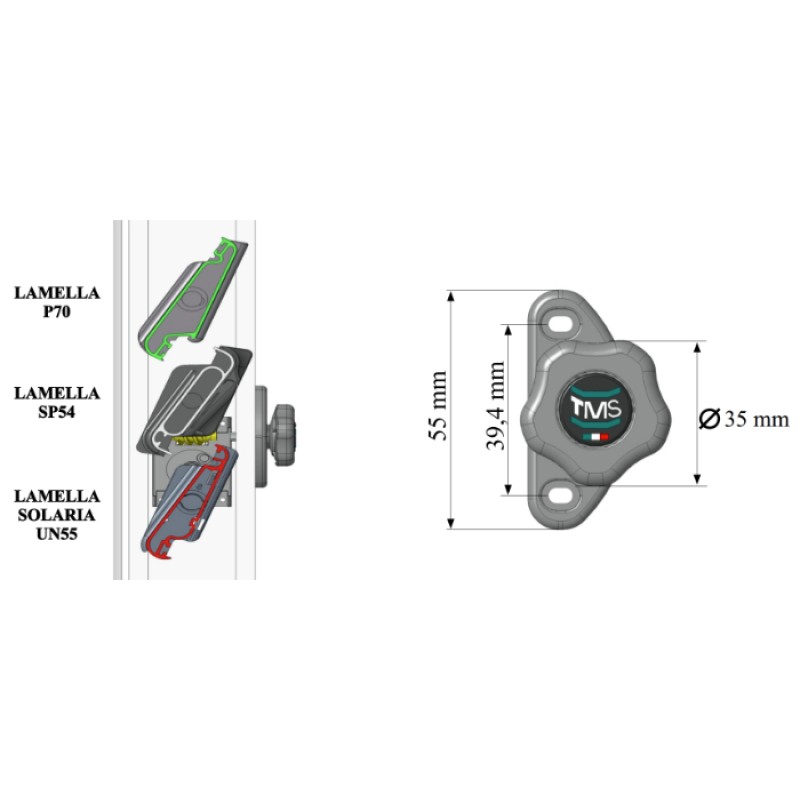

This handle for shutter with lowered knob has a
footprint from the plane of the door of 16 mm .
Hole position for shutter knob assembly
The rotary positioning hole is made using a 9 mm diameter drill bit and drilling according to the profile.
Pomo Europa versions with Tecnometalsystem shutter mechanism
You can buy 2 different
versions of the handle to open and close the shutters.
Select the version of the shutter knob handle you want according to your needs.
Choose the version of the Tecnometalsystem lowered knob handle you want from:

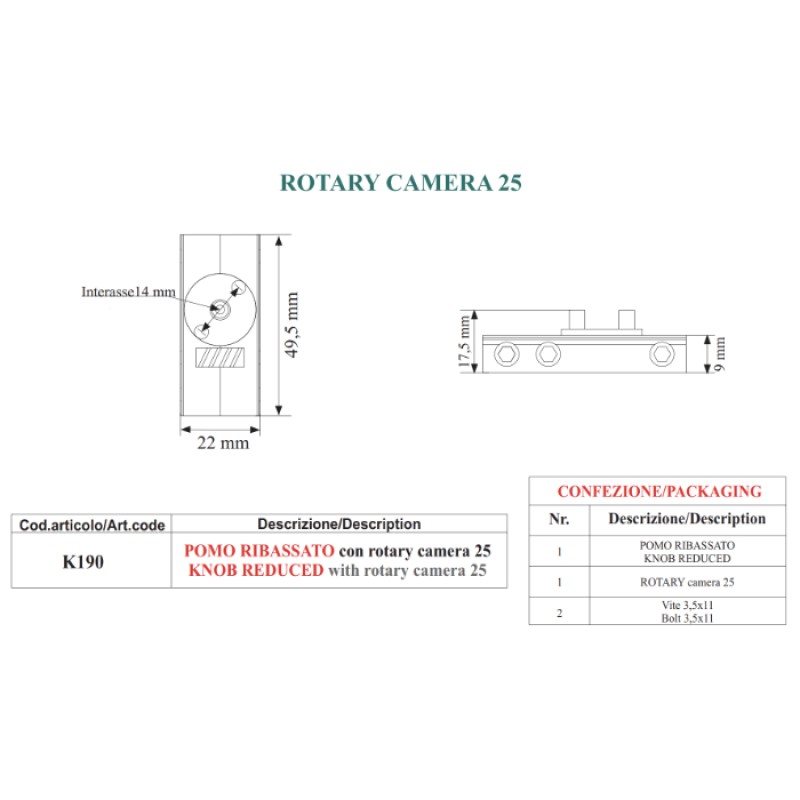

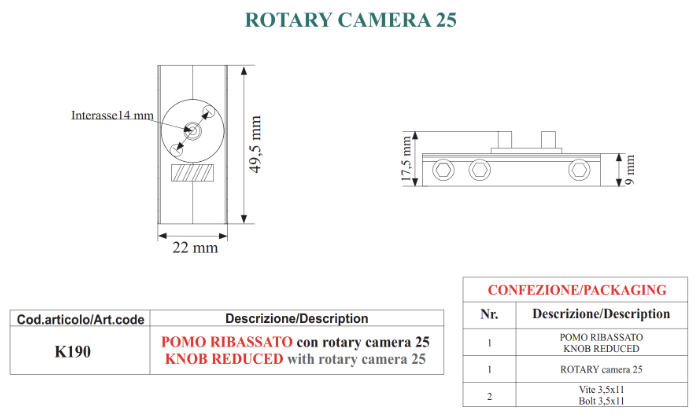

- K190 : LOWERED POMO handle with rotary camera 25;

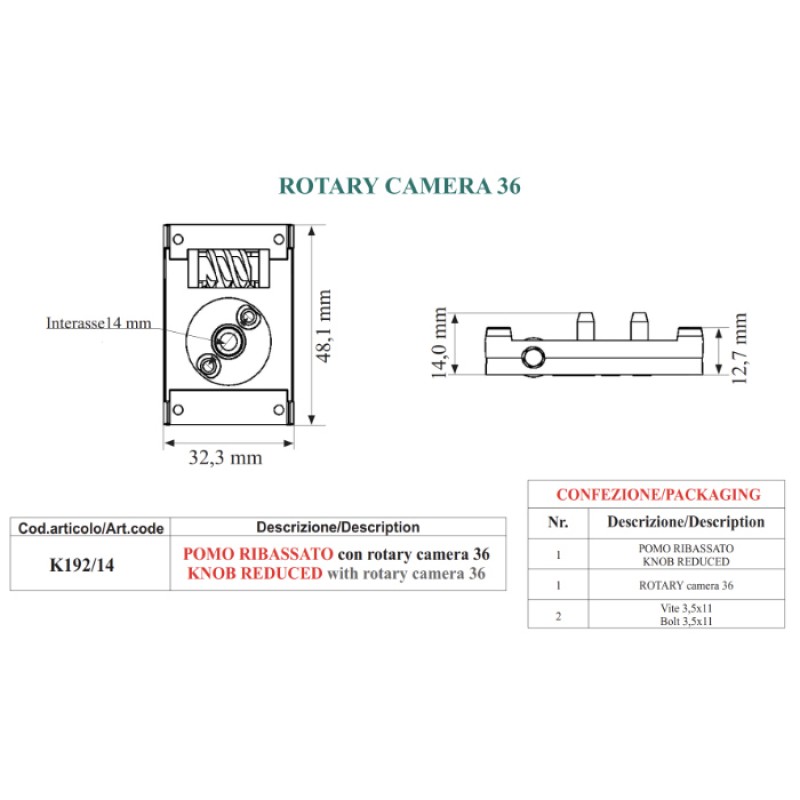

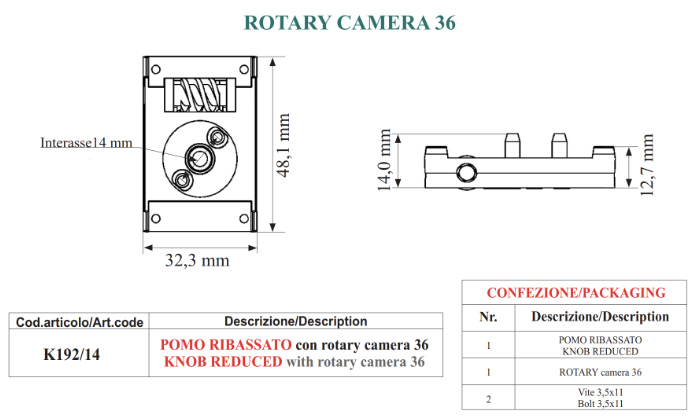

- K192 / 14 : LOWERED POMO handle with rotary camera 36.
The package includes the shutter knob handle of the selected code and two 3.5x11 mm screws.
For more technical information you can read the sheets (click on documents).
Tecnometalsystem knob handle for shutter colors
Each version can be ordered in black or colored version.
The
standard version is black . The colors of
the colored version are: white, gray, brown, dark brown or green.
If you buy a colored device after your order we will ask you which color you would like to receive.
Tecnometalsystem adjustable shutter handles
Tecnometalsystem (TMS) produces in Italy the best models of
knob for adjustable shutter .
TMS's goal is to help customers find optimal solutions to ensure product quality and functionality.
