80x80 mm Extruded Aluminum Corner Bracket for Klima Pro PosaClima Counterframe
Bracket in extruded aluminum to make the corner joint of the Klima Pro counterframe

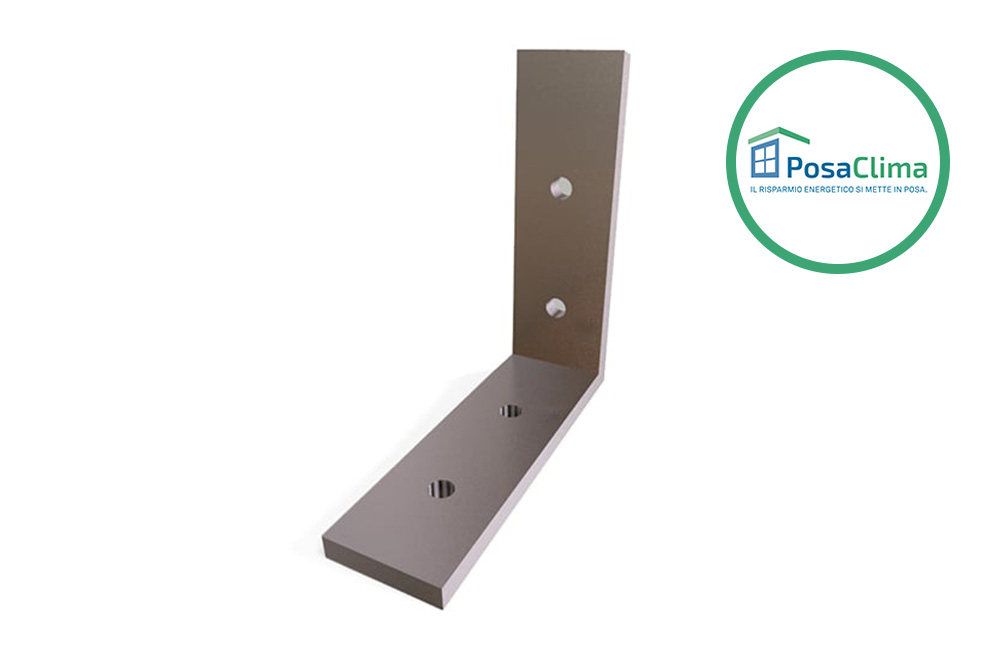

Bracket in extruded aluminum 80x80 mm thickness 5mm to make the corner joint of the Klima Pro counter frame.
Thanks to its particular geometry it can be inserted directly into the external ribs of the Klima Pro counterframe.
It is
equipped with pre-holes to fix it directly to the support.
Attention: for a better result of the corner it is always recommended to slightly bevel the outer edge of the two pieces of subframe to be joined: in this way the coupling will be perfect.
Tip for fixing the subframe of the window
For fixing, use 4.8x19 mm screws.
Klima Pro PosaClima: counter frame for energy-saving windows
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
