Mechanical or Radio Tubular Motors with Accessories - DOMOTECH EFFEZETA Catalog
Domotech Effezeta tubular motors are designed for the professional movement of roller shutters, awnings and screens.
The
Domotech branded motor catalog for roller shutters and awnings includes mechanical, radio, and electronic 3rd-stop motors, as well as remote controls, control units, Wi-Fi hubs, sun and wind sensors, and mounting accessories.
This tab collects all the models on a single page: you can
select the exact product using the drop-down menu and download the official catalog to check technical data, diagrams, and compatibility.
Inside you will find:
- Mechanical motors Ø45 and Ø35 (pages 6–7);
- Radio motors Ø45 and Ø35 (pages 10–11);
- Electronic motors 3rd stop Ø45 and Ø17 (pages 13 and 15);
- Control systems: radio controls, control units, HUBs (pages 8, 12, 16, 22–24);
- Dedicated accessories: crowns, adapters, supports, plates (pages 12, 18–21).
Advantages of the Domotech Effezeta brand
- Professional design and durability
- Compatibility with modern home automation systems
- Dedicated accessories for each type of roller
- Long range radio (200 m outside – page 23)
- Recognized for reliability and small size
Features of Domotech tubular motors
- Power supply 230V – 50Hz (page 6)
- Compatible with roller shutters, awnings, mosquito nets depending on the model
- IP44 protection (all motors)
- 433.92 MHz Radio Transmission for Radio and Electronic Models
- Mechanical or electronic 3rd stop limit switch

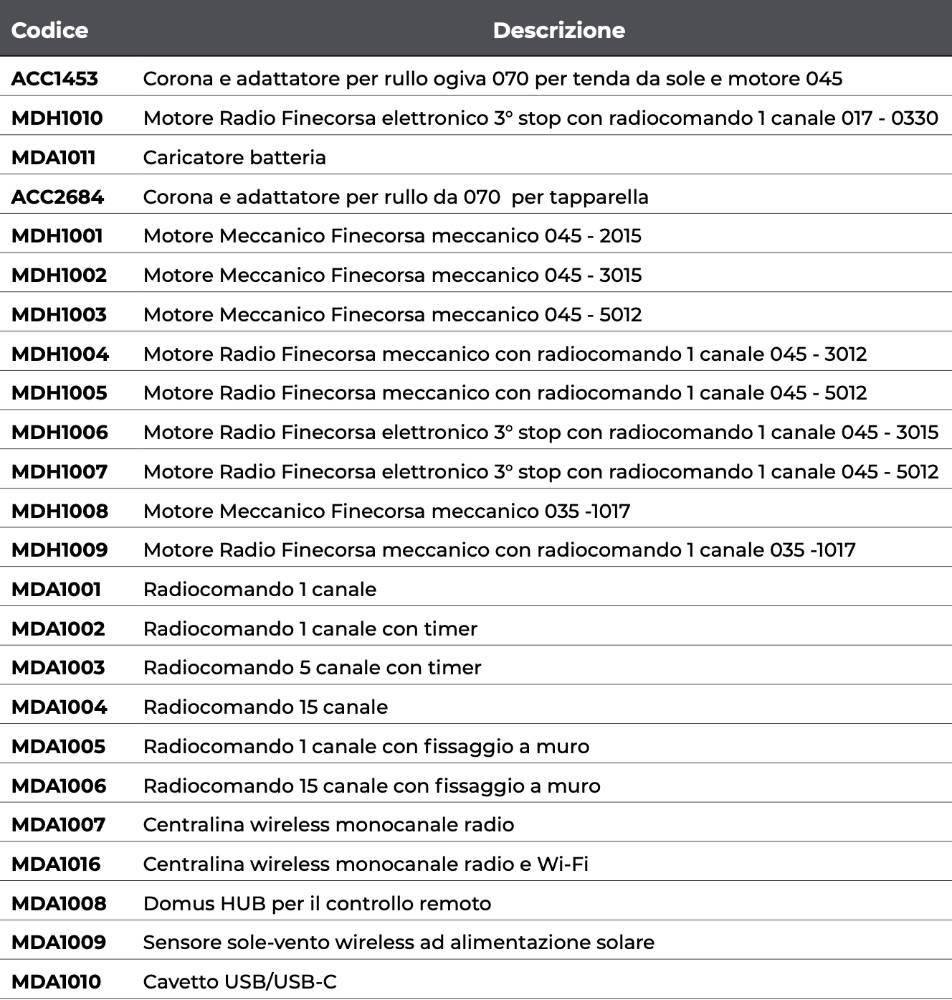

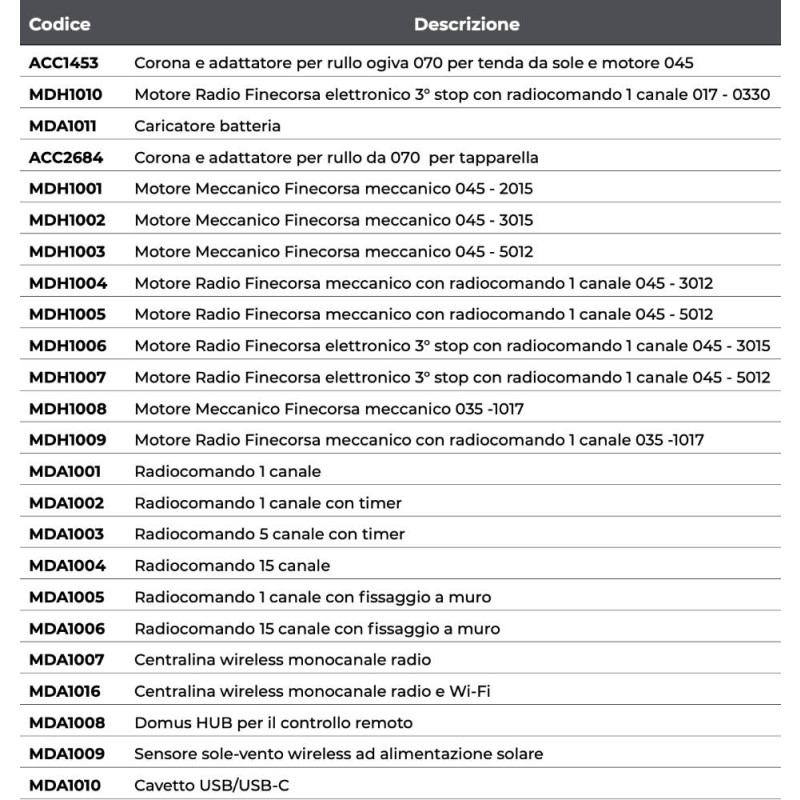

DOMOTECH motor catalog codes
- ACC1453 – Crown and adapter for 070 ogive roller for awning and 045 motor
- MDH1010 – Radio Motor Electronic Limit Switch 3rd Stop with 1-channel radio control 017 - 0330
- MDA1011 – Battery Charger
- ACC2684 – Crown and adapter for 070 roller shutter
- MDH1001 – Mechanical Motor Mechanical Limit Switch 045 - 2015
- MDH1002 – Mechanical Motor Mechanical Limit Switch 045 - 3015
- MDH1003 – Mechanical Motor Mechanical Limit Switch 045 - 5012
- MDH1004 – Mechanical limit switch radio motor with 1-channel radio control 045 - 3012
- MDH1005 – Mechanical limit switch radio motor with 1-channel radio control 045 - 5012
- MDH1006 – Radio Motor Electronic Limit Switch 3rd Stop with 1-channel radio control 045 - 3015
- MDH1007 – Radio Motor Electronic Limit Switch 3rd Stop with 1-channel radio control 045 - 5012
- MDH1008 – Mechanical Motor Mechanical Limit Switch 035 -1017
- MDH1009 – Mechanical limit switch radio motor with 1-channel radio control 035 -1017
- MDA1001 – 1-channel radio control
- MDA1002 – 1-channel remote control with timer
- MDA1003 – 5-channel remote control with timer
- MDA1004 – 15-channel radio control
- MDA1005 – 1-channel wall-mounted remote control
- MDA1006 – 15-channel wall-mounted remote control
- MDA1007 – Single-channel wireless radio control unit
- MDA1016 – Single-channel wireless control unit with radio and Wi-Fi
- MDA1008 – Domus HUB for remote control
- MDA1009 – Wireless Solar-Powered Sun-Wind Sensor
- MDA1010 – USB/USB-C Cable
Domotech Effezeta Tubular Motors

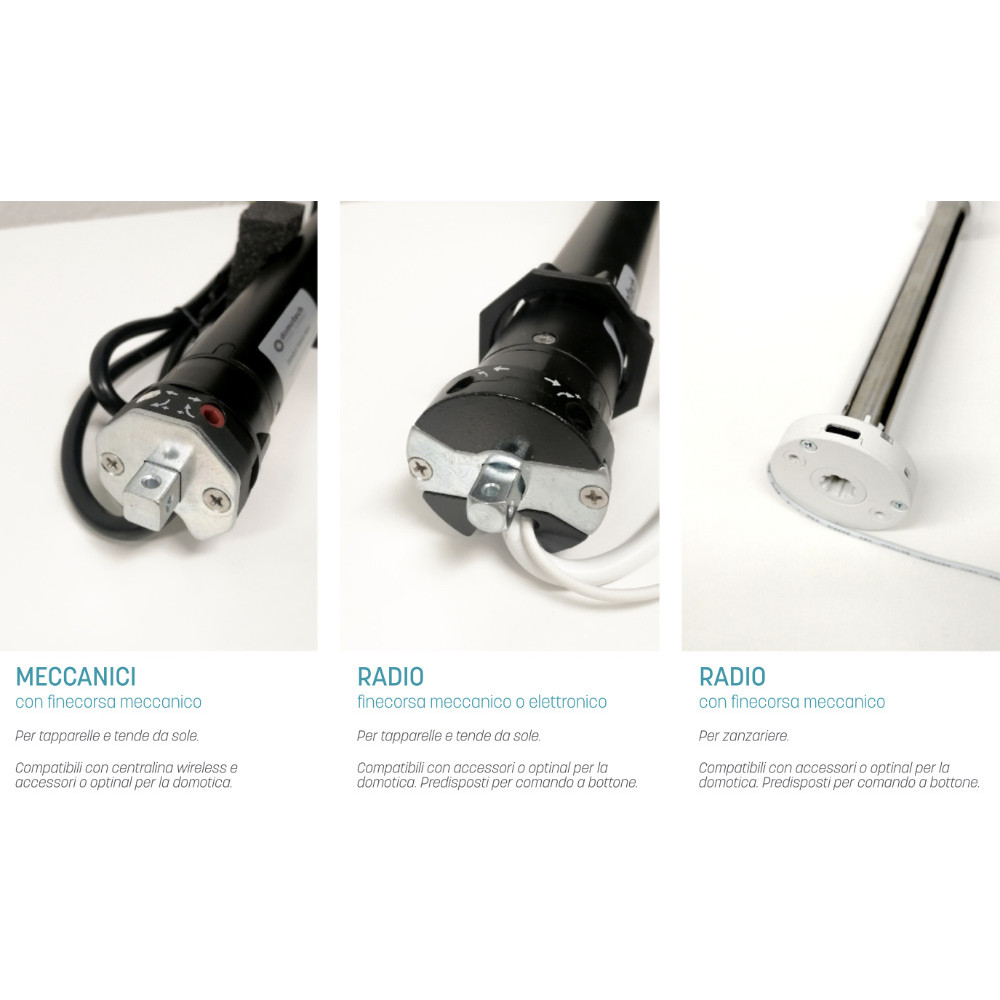

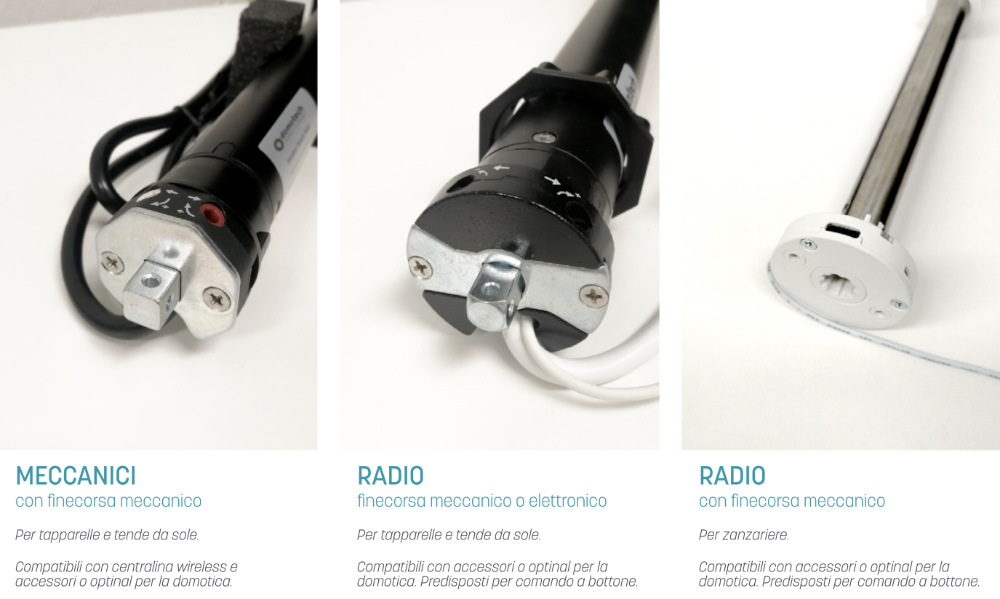

MECHANICAL MOTORS (Catalogue pages 6–7)
Ø45 Mechanical Limit Switch
MDH1001 – 20 Nm – 15 rpm – roller 60
MDH1002 – 30 Nm – 15 rpm – roller 60
MDH1003 – 50 Nm – 12 rpm – roller 60
Ø35 Mechanical Limit Switch
MDH1008 – 10 Nm – 17 rpm – roller 40
RADIO MOTORS (Catalogue pages 10–11)
Ø45 Mechanical Limit Switch Radio
MDH1004 – 30 Nm – 15 rpm – roller 60
MDH1005 – 50 Nm – 12 rpm – roller 60
Ø35 Mechanical Limit Switch Radio
MDH1009 – 10 Nm – 17 rpm – roller 40
ELECTRONIC 3RD STOP MOTORS (Catalogue pages 13 and 15)
Ø45 Electronic Limit Switch
MDH1006 – 30 Nm – 15 rpm – roller 60
MDH1007 – 50 Nm – 12 rpm – roller 60
Ø17 Electronic Limit Switch (specific for mini roller shutters)
MDH1010 – 0.3 Nm – 30 rpm – roller 20

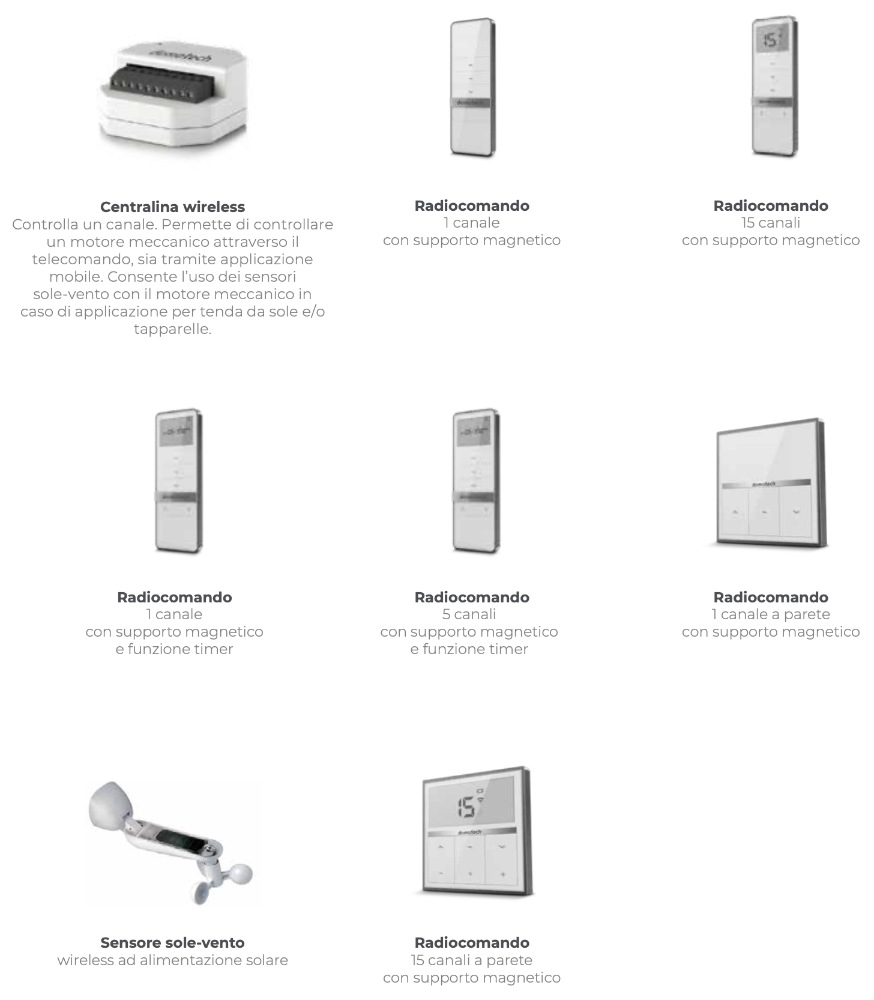

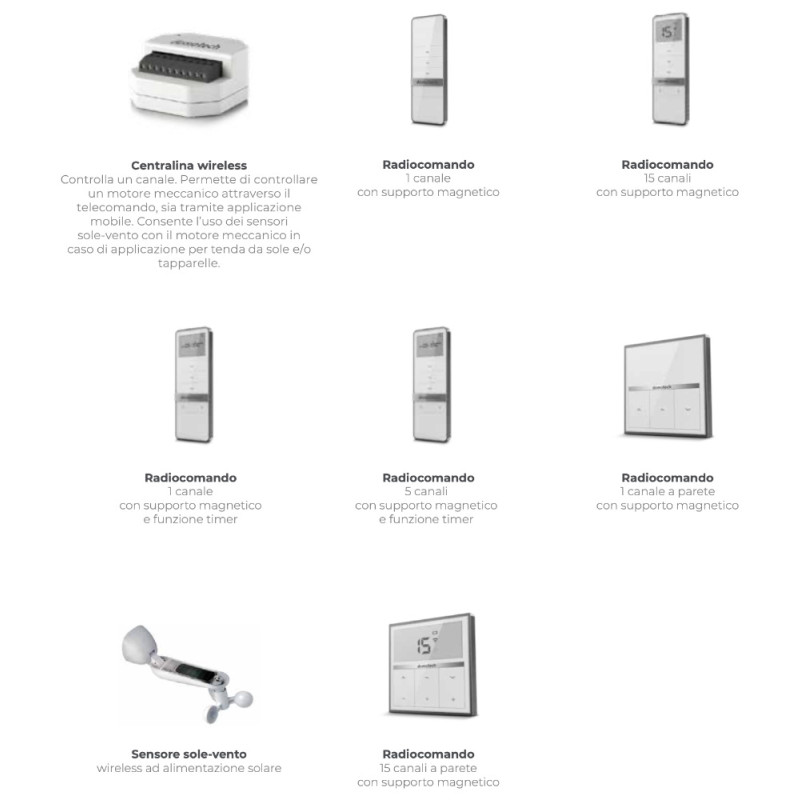

RADIO CONTROLS (Catalogue pages 23–24)
MDA1001 – 1-channel radio control
MDA1002 – 1-channel remote control with timer
MDA1003 – 5-channel remote control with timer
MDA1004 – 15-channel radio control
MDA1005 – 1-channel wall-mounted remote control
MDA1006 – 15-channel wall-mounted radio control
HOME AUTOMATION – Control units and hubs (Catalogue pages 8, 12, 16, 22)
MDA1007 – Single-channel wireless radio control unit
MDA1016 – Wireless Radio + Wi-Fi Control Unit
MDA1008 – Domus HUB (Amazon Alexa, Google Assistant, IFTTT, SmartThings)
MDA1009 – Wireless Solar-Powered Sun-Wind Sensor
ACCESSORIES AND WIRING (Catalogue pages 12 and 16)
ACC1453 – Crown and adapter for Ø70 ogive roller (awnings)
ACC2684 – Crown and adapter for Ø70 roller (roller shutter)
MDA1010 – USB/USB-C Charging Cable
MDA1011 – Transformer/battery charger
