Tubular Motor for Motorized Roller Shutter

Tubular Motor for Motorized Roller Shutter 35Nm 70kg

-10%

£ 40,92 £ 45,46

Prices excluding VAT

35Nm tubular motor for motorized roller shutters, ideal for automating the roller shutter at home and lifting roller shutters weighing up to approximately 70kg.

Right of withdrawal not applicable (art. 59 Consumer Code).

Quantity

- +

Add to favorites

Tubular Motor for Motorized Rolling Shutters 35Nm 70kg

Motorize your home roller shutters with the best tubular motors available online at Windowo. These roller shutter motors are essential for automating the opening and closing of your shutters.

This roller shutter motor has a power of 35Nm, so it is capable of lifting a maximum of approximately 70kg.

Roller shutter motor technical features:

Tube diameter: 45mm;
Limit switch: mechanical;
Power supply: 230V / 50Hz;
Operating time: 4min;
Power consumption: 230W;
Ampere: 0.9;
Number of laps before stopping: 31;
Noise level: ≤48;
Degree of protection: IP44;
Liftable weight (approximate capacity): 70kg;
Torque: 35Nm;
Cable: 1.5m – 4x 0.75.

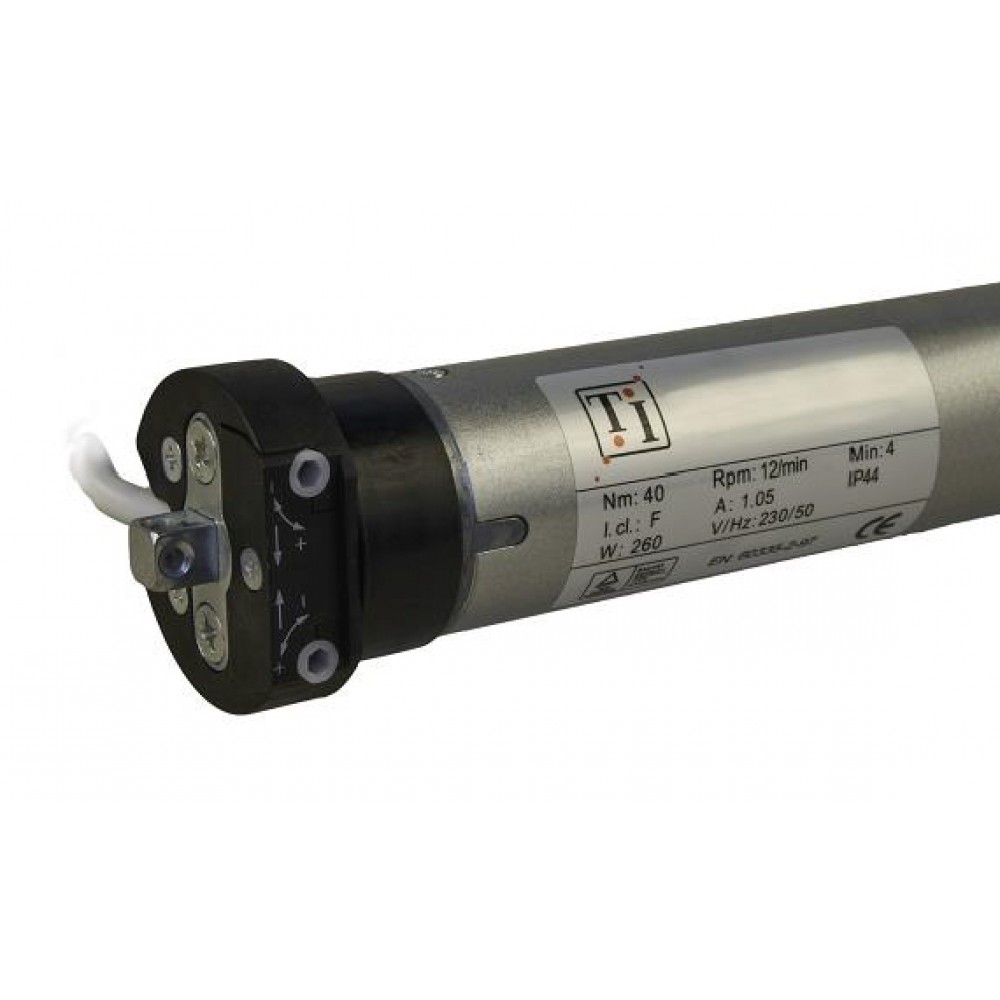

Smart 35 35nm 70kg Tubular Motor for Roller Shutters

Motorized roller shutter? Online sales of roller shutter motors.

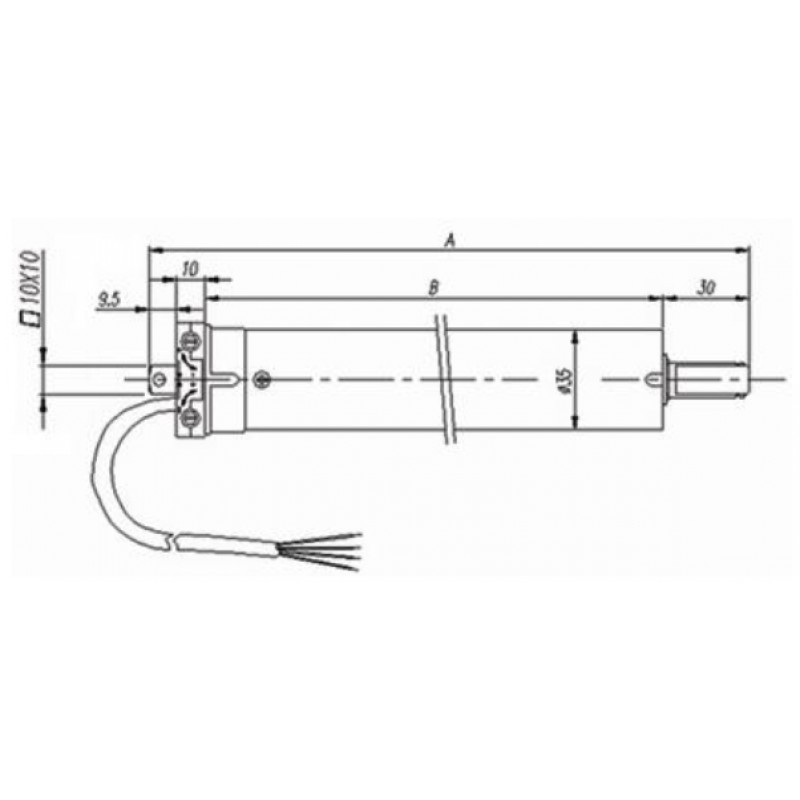

Dimensions: H 57.6cm, W 52.2cm. Weight: 2.80kg.

The Smart line of tubular motors with mechanical limit switch and Ø 45mm was specifically designed for shipbuilding.

Complies with EN60335-1-95 and EN60335-2-97/10-2000 directives.

CE and TUV certified.
