Electric Shutter Kit Motor Installation 20 Nm Radio RTS MRR 2000 Somfy

Electric roller shutter kit 20 Newton Radio RTS MRR 2000 Somfy

Electric shutter kit features: ideal for replacing an existing motor

Somfy electric roller shutter kit for motorization of roller shutters 20 Nm Radio RTS MRR 2000, to automate your roller shutters and open / close them with a simple gesture.

• Tubular radio motors with RTS radio receiver: advanced functions already included;
• The lifting force is 20N per meter.

How does the electric roller shutter motor 20 Nm Radio RTS MRR 2000 Somfy work?

• The Somfy motor for automatic shutters 20 Nm is easy to install, just insert it into the tube that moves the shutter and connect it to a button control or a remote control.
• Thanks to the time programmer it is possible to set the automatic opening and closing times according to your needs. In addition, the 20 Nm roller shutter motor can also be managed from a smartphone, if associated with the Somfy Tahoma Box.

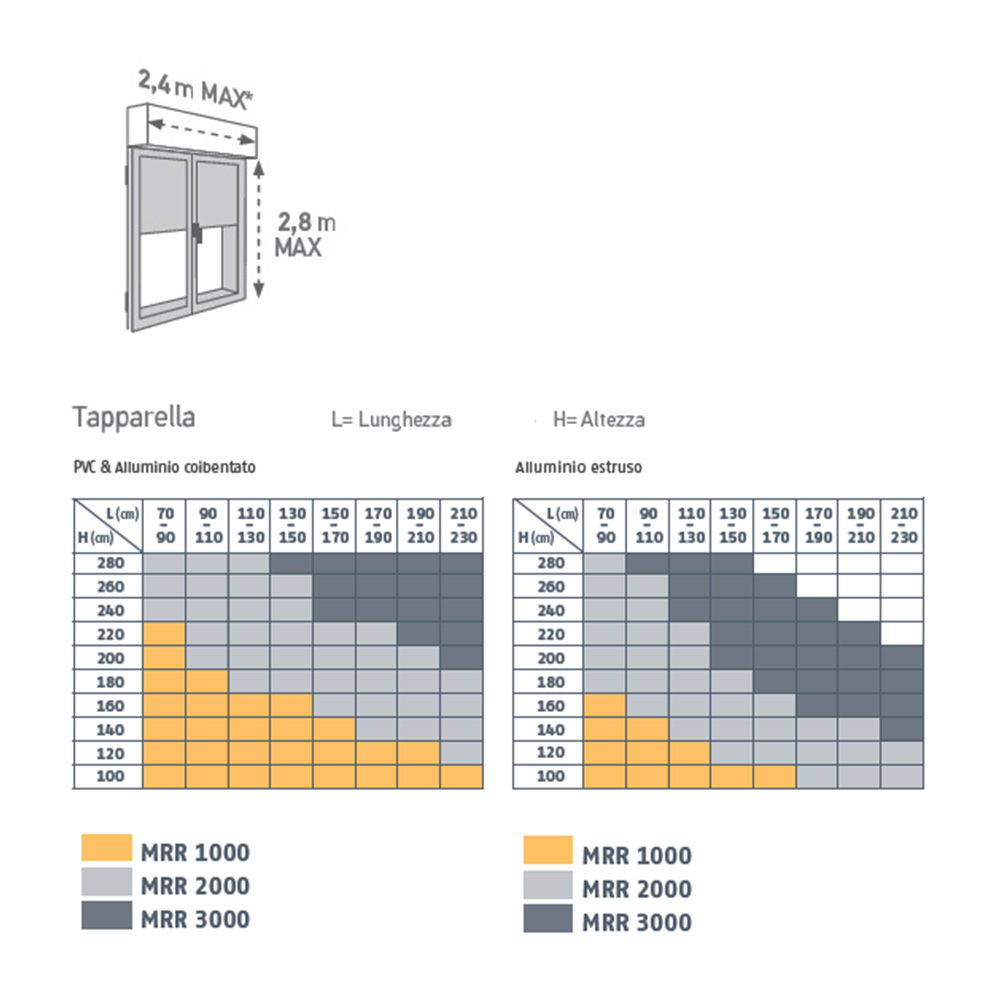

• The choice of the motor must be based on the dimensions and weight of the roller shutter to be moved, which must be evaluated on the basis of specific characteristics (see summary tables below).
• Somfy roller shutter automation is suitable for all roller shutters, traditional or monobloc (i.e. a roller shutter integrated into the window). Furthermore, it is suitable for all shutters already installed equipped with mechanical movement with belt or crank. Even the motorized shutters by wire or other brands can switch to RTS technology with the receiver to be inserted in the switch, present in the Somfy kit for motorization of the shutters.
• A Smoove RTS wall control is included in the 20 Nm Radio RTS MRR 2000 roller shutters motorization kit to open / close the shutters with a single gesture. The command also makes it possible to centralize the management of all the shutters in a single point of the house, creating a home automation system for shutters.

Shutters on which you can apply the Somfy electric shutter kit

• PVC : 7 m² of maximum area
• Insulated aluminum : 8.75 m² of maximum area
• Extruded aluminum : 2.9 m² of maximum area

Why is it worth buying a roller shutter motor kit?

1. Easy installation - you just need to fix, connect and program;
2. In the kit there is everything you need : the components are made to be transported, installed and stored easily.

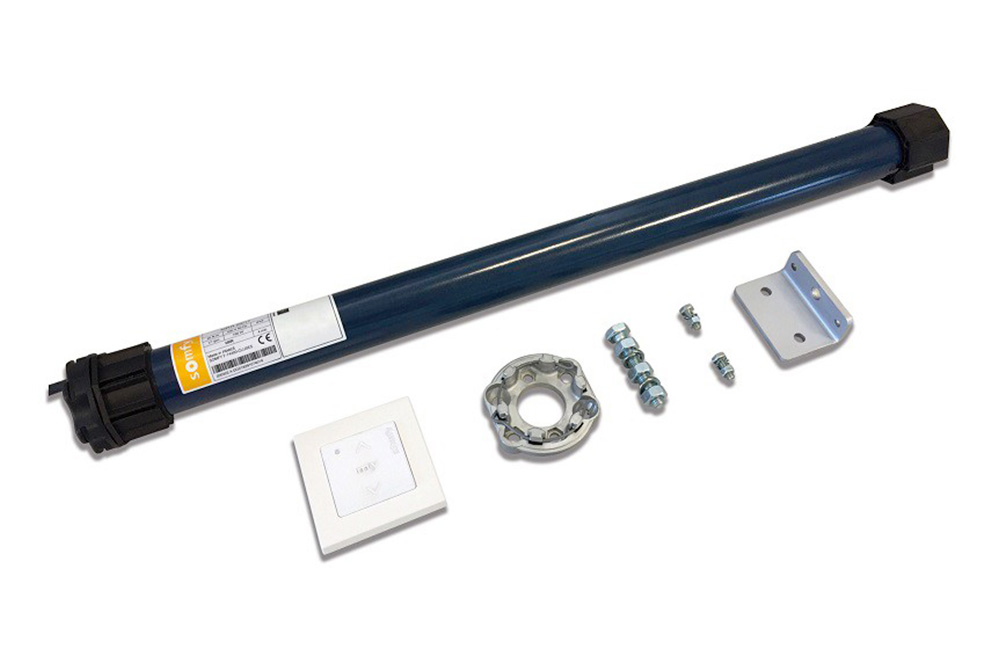

Somfy shutter motorization kit all included

• Roller shutter motor LT50 EURO 20 / 17G1 MRR.
• Pre-assembled octagonal roller adapters (crown and wheel).
• Operator support in zamak.
• Smoove origin RTS wall control with white frame.
• "L" square for support.
• Screws, washers and nuts.

Compatibility: which motors can you replace with this kit?

• MAXIMUM 50 RTS 15/17;
• MAXIMUM 50 RTS 20/17;
• ALTUS 50 RTS 15/17;
• ALTUS 50 RTS 20/17.

Technical features: read the specifications of the roller shutter motor

• Power supply: 230 V - 50 Mz;
• Torque: 20 Nm - 17 Rpm;
• Power: 160W;
• Degree of protection: IP 44;
• Radio frequency: 433.42Mhz.

Somfy: online shop for roller shutter motors

• improve the internal home environment;
• save time and energy when returning from daily work;
• increase energy and environmental savings
