K SERIES CONTROL UNITS - MEDIUM AND LOW VOLTAGE POWER SUPPLY UNITS
Nekos K Series control unit for commanding and powering the actuators that move the windows.
Nekos, after years of specific experience in the window sector, has launched the new
K Series control units on the market which, using the principle of the expansion of the command and control system, guarantee the best performance of the window automation system.
Nekos control units to power and control electric motors
The control units are used to
power and control medium voltage (230VAC 50 Hz) and low voltage (24VDC) electric motors , with single or simultaneous control; a programming menu – visible on the display – allows you to make personalized settings.
The "R" version, equipped with a radio receiver, allows you to remotely control the motors using the 30-channel Pik radio control.

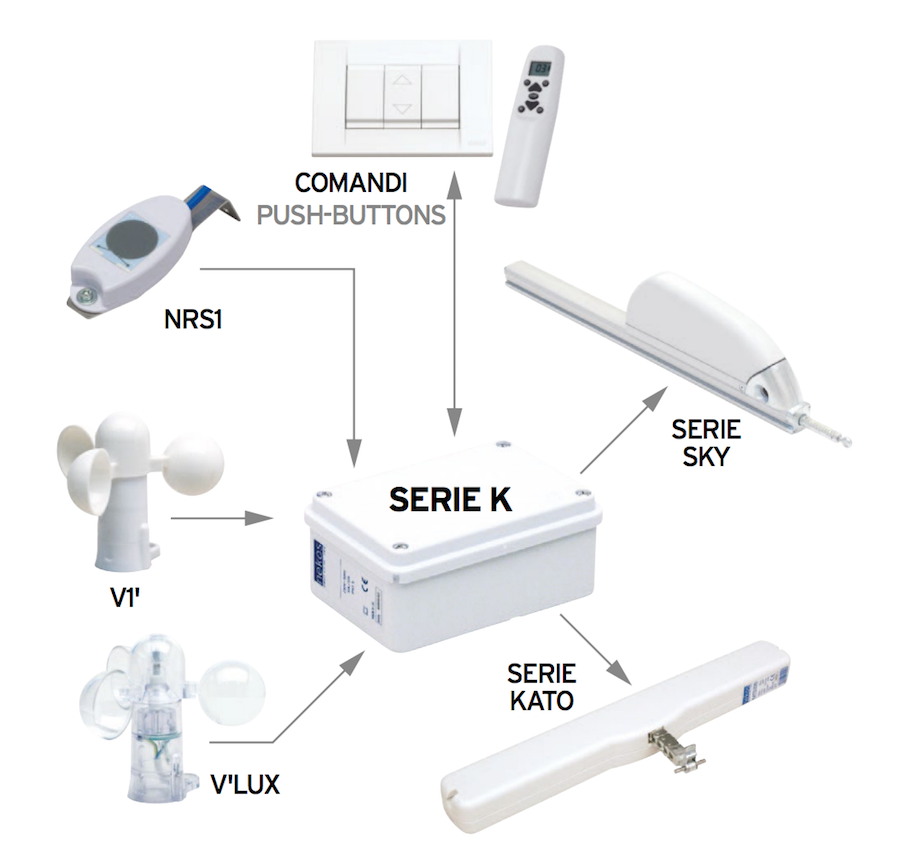

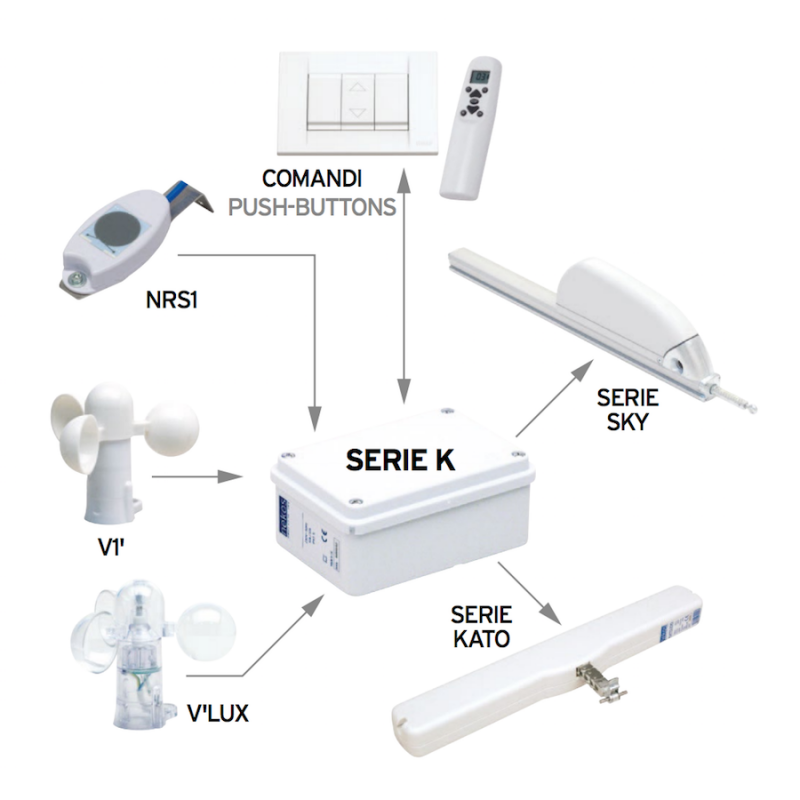

The control units carry out
automatic control of the meteorological activity with the help of rain, wind, brightness sensors and a daily timer. For a better interpretation of the functions, refer to the instruction manual.

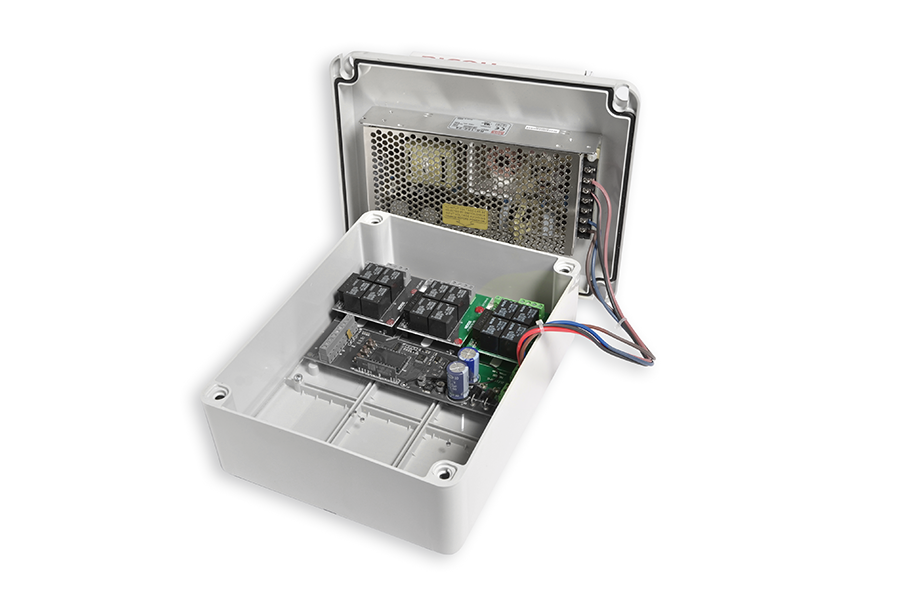

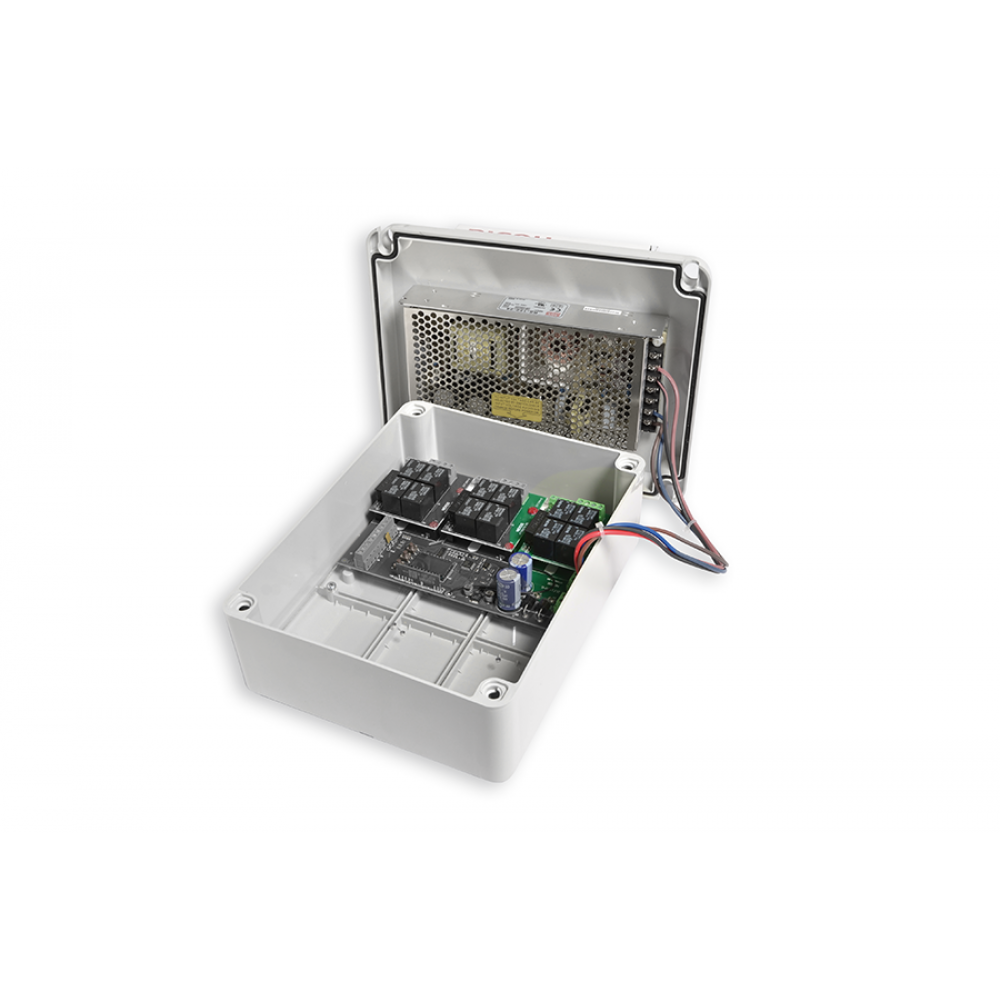

All the control units are housed in a shockproof plastic cabinet with IP55 protection degree and comply with the 2004/108 CE (EMC Directive) and 2006/95 CE (BT Directive) Directives.

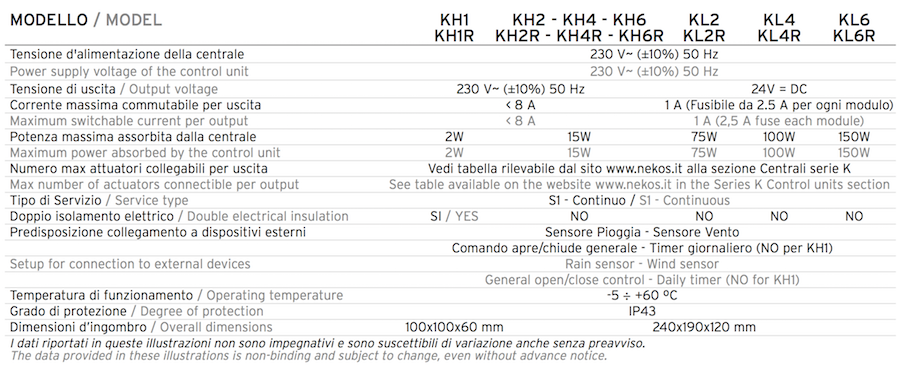

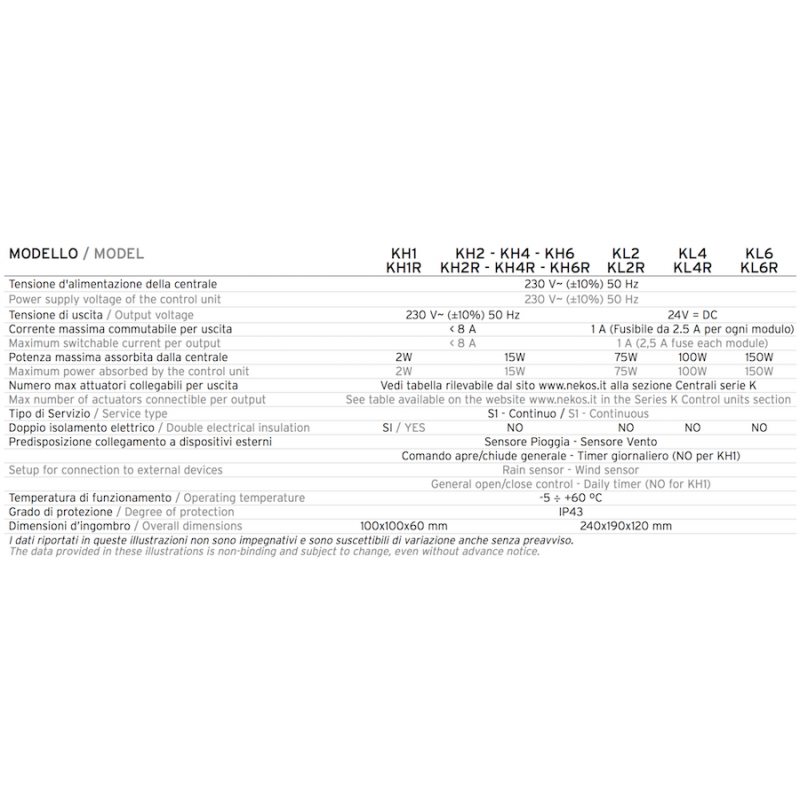

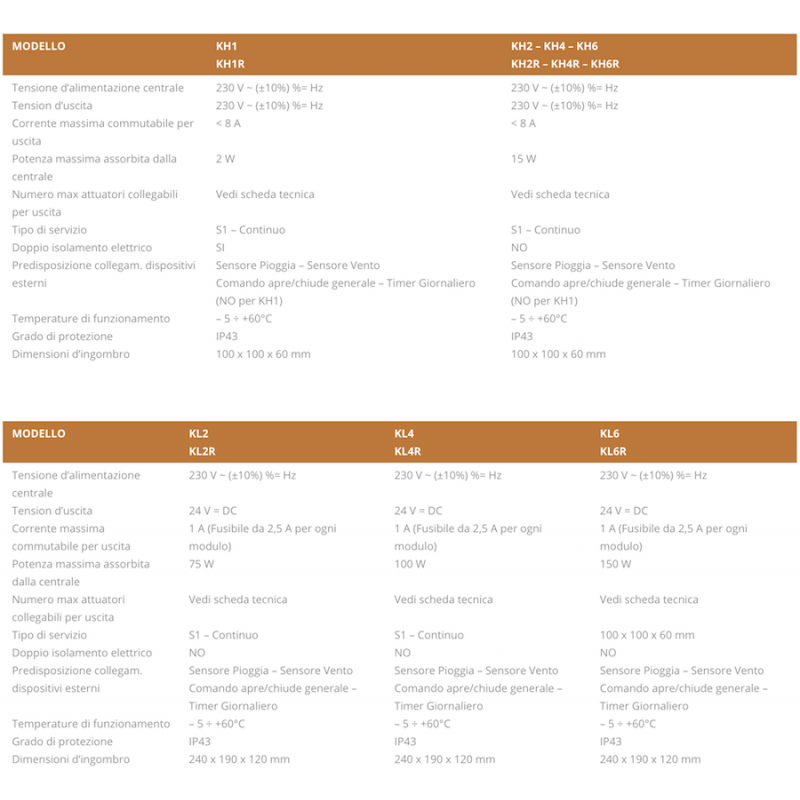

MODEL: NEKOS K SERIES CONTROL UNITS
| Model |
Code |
Description |
| KH1 |
6720001 |
Control unit for 1 230Vac motor |
| KH1R |
6720002 |
Control unit for 1 230Vac motor
+ 433 MHz remote control |
| KH2 |
6720003 |
Control unit for 2 230Vac motors |
| KH2R |
6720004 |
Control unit for 2 230Vac motors
+ 433 MHz remote control |
| KH4 |
6720005 |
Control unit for 4 230Vac motors |
| KH4R |
6720006 |
Control unit for 4 230Vac motors
+ 433 MHz remote control |
| KH6 |
6720007 |
Control unit for 6 230Vac motors |
| KH6R |
6720008 |
Control unit for 6 230Vac motors
+ 433 MHz remote control |
| KL2 |
6720009 |
Control unit for 2 Vdc motors |
| KL2R |
6720010 |
Control unit for 2 Vdc motors
+ 433 MHz remote control |
| KL4 |
6720011 |
Control unit for 4 Vdc motors |
| KL4R |
6720012 |
Control unit for 4 Vdc motors
+ 433 MHz remote control |
| KL6 |
6720013 |
Control unit for 6 Vdc motors |
| KL6R |
6720014 |
Control unit for 6 Vdc motors
+ 433 MHz remote control |
| KL2+H2 |
6720015 |
Control unit for 2 24Vdc motors
and 2 at 230 Vac |
| KL2R+H2R |
6720016 |
Control unit for 2 24Vdc motors
and 2 at 230 Vac + remote control |
| KL2+H4 |
6720017 |
Control unit for 2 24Vdc motors
and 4 at 230 Vac |
| KL2R+H4R |
6720018 |
Control unit for 2 24Vdc motors
and 4 at 230 Vac + remote control |
| KL4+H2 |
6720019 |
Control unit for 4 24Vdc motors
and 2 at 230 Vac |
| KL4R+H2R |
6720020 |
Control unit for 4 24Vdc motors
and 2 at 230 Vac + remote control |
