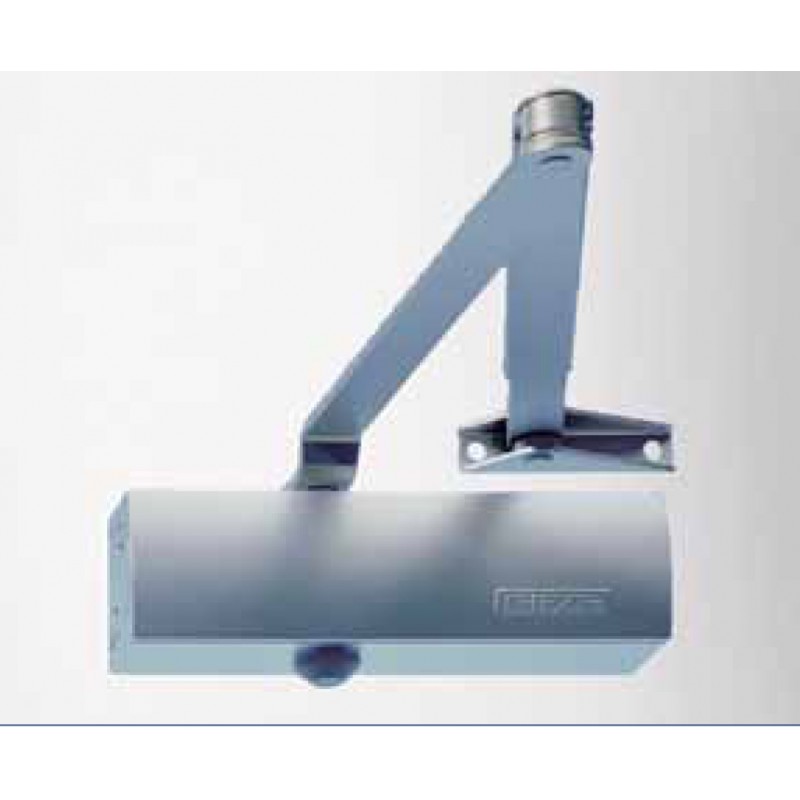

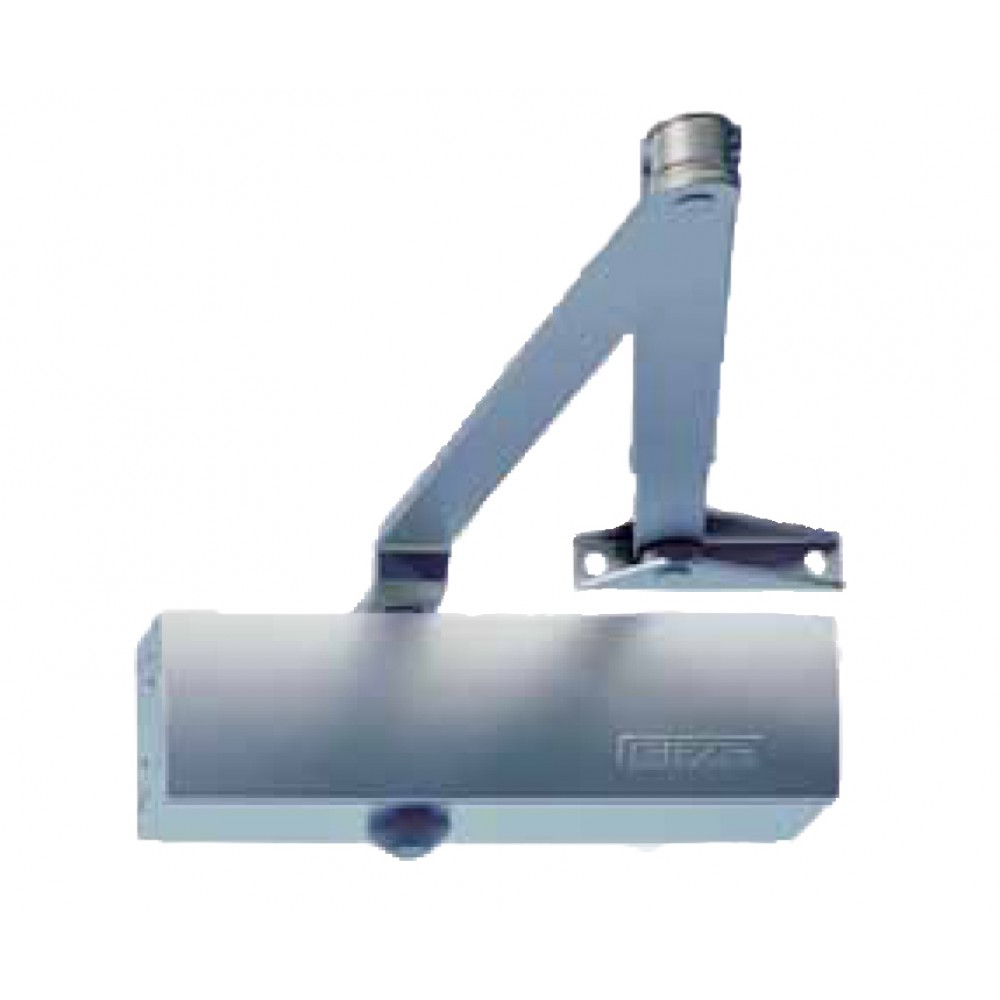

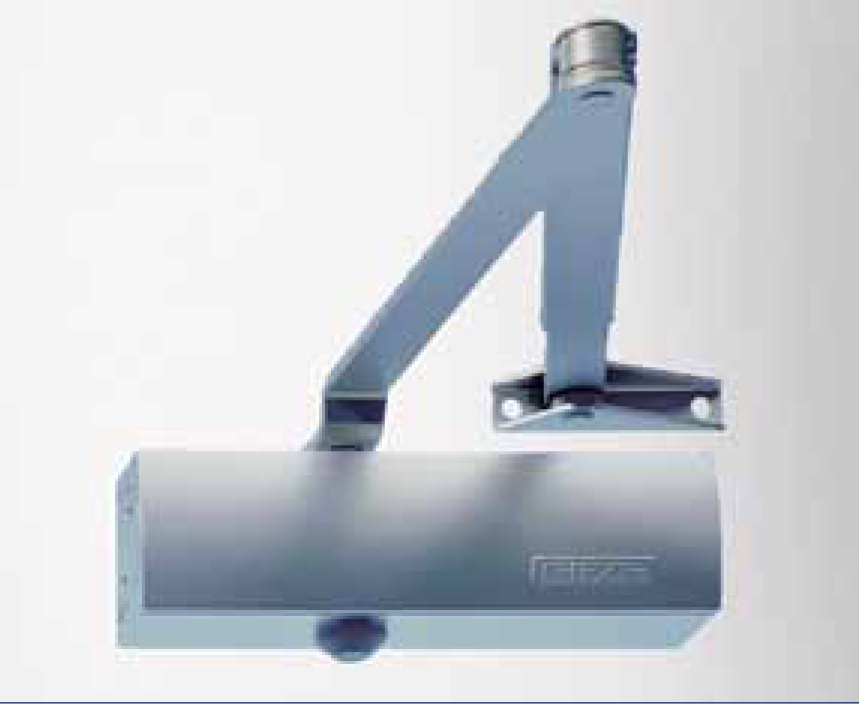

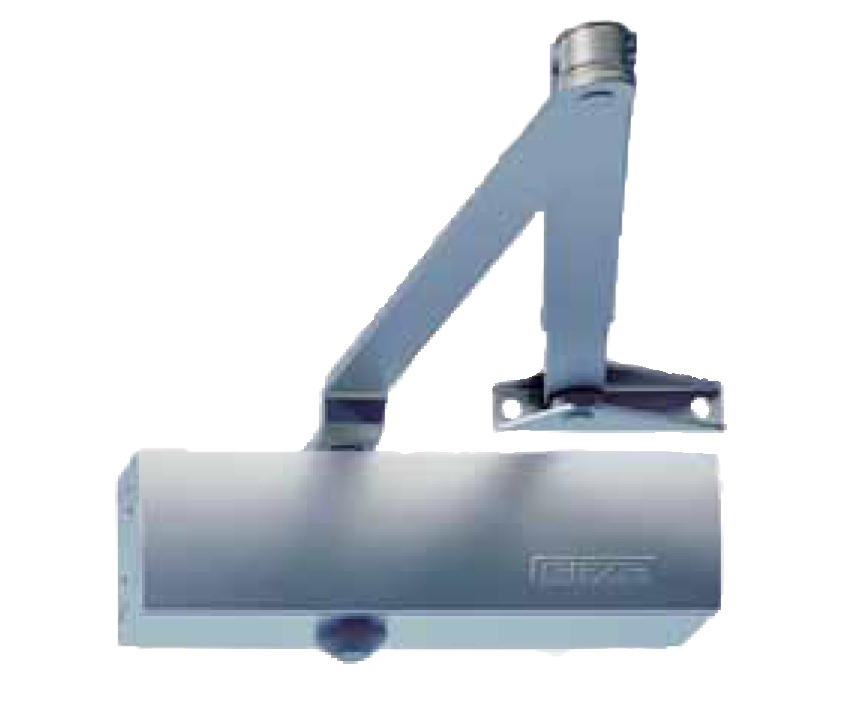

Geze TS 1500 - Overhead Door Closer with V-Arm and Stop - Closing Force 3-4 (EN1154)

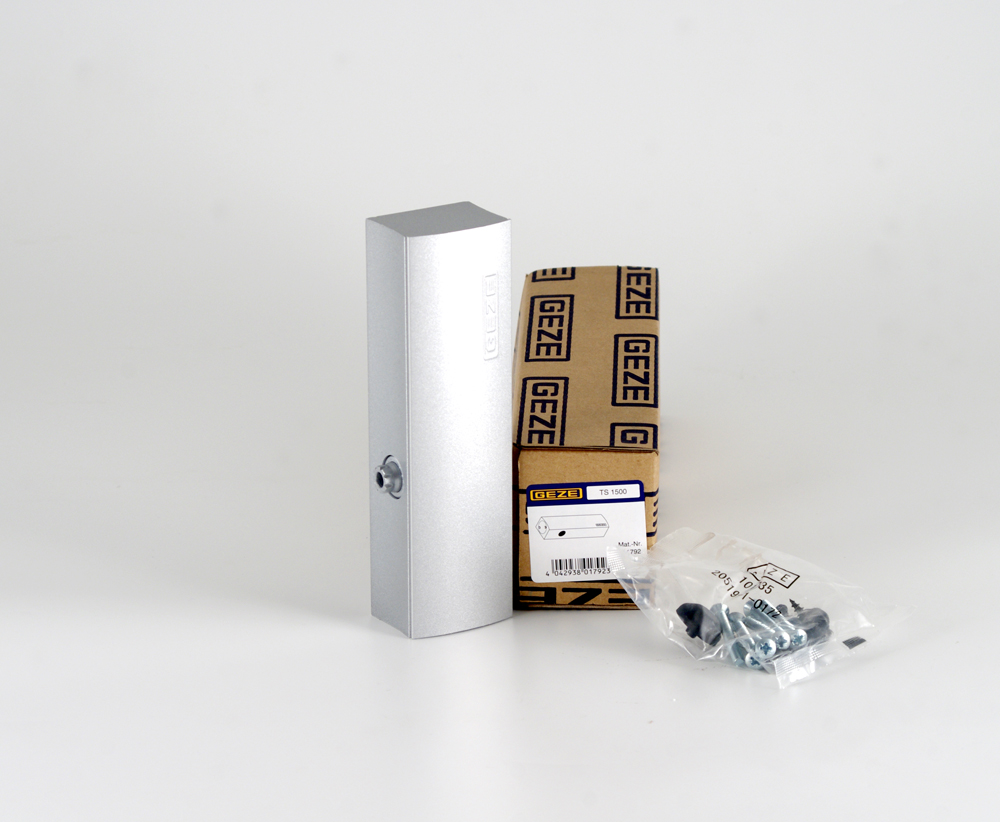

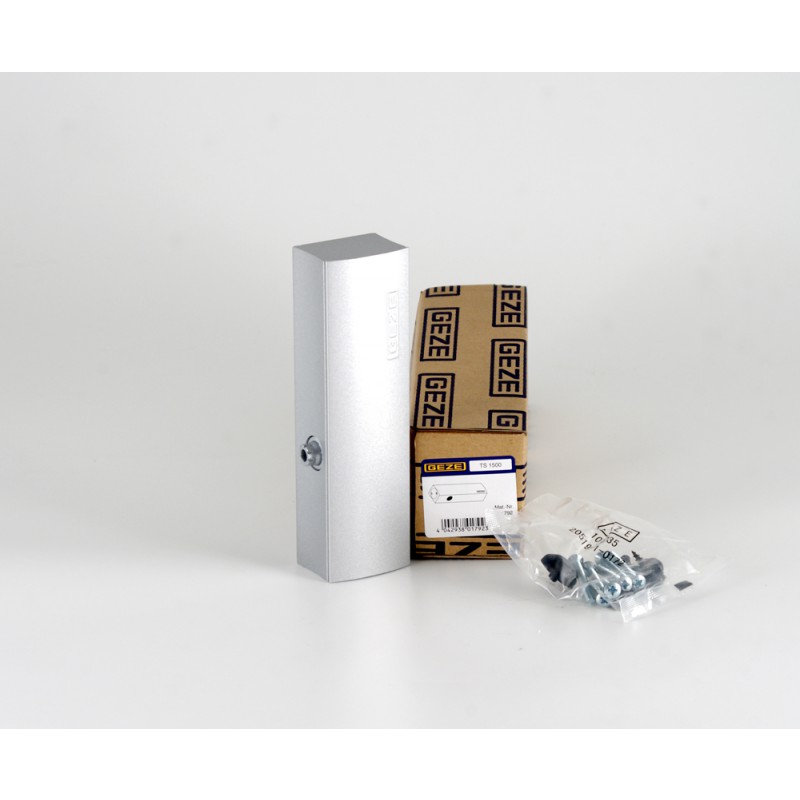

GEZE TS 1500 door closer with V-arm with stop and adjustable closing force , complete with screws and mounting template (mounting plate not included).
The Geze TS 1500 is an overhead door closer with a V-arm and hold-open mechanism, designed to ensure controlled and safe door closing. Its
adjustable closing force (3-4) in accordance with EN1154 makes it suitable for internal and external doors up to 1100 mm wide.
Reliable and
easy to install solution, complete with screws and assembly template.

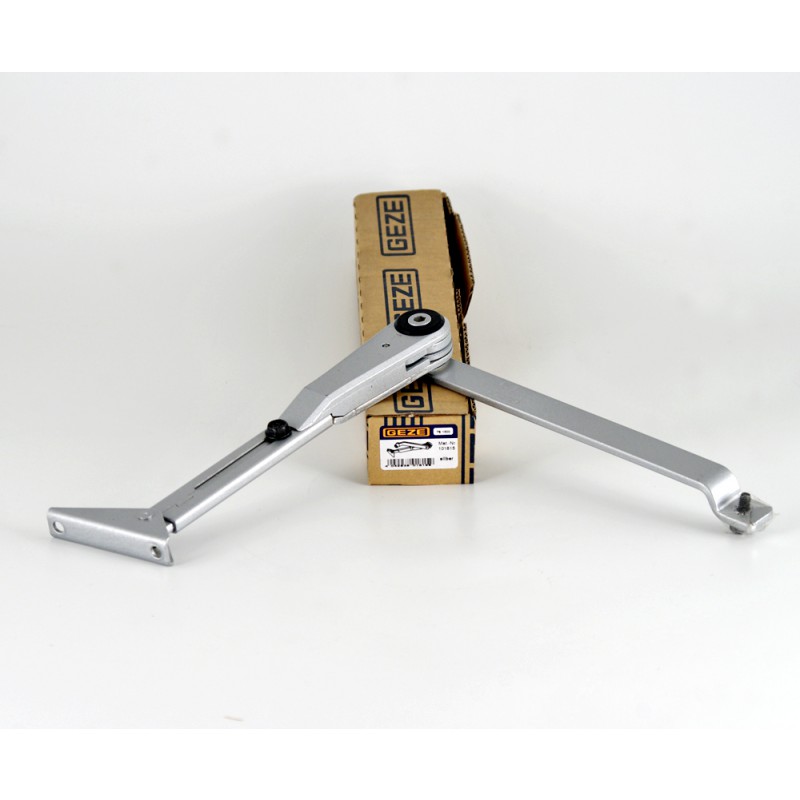

Description GEZE TS 1500 door closer with V-arm
Closing force adjustable in two sizes , simply by inverting the arm clamp:
- "Reduced" closing force (force 3 according to EN1154), for doors up to 950mm wide;
- "Large" closing force (force 4 according to EN1154), for doors up to 1100mm wide.
Adjustable closing speed and hydraulic final stroke (between 70° and 150°).
FIELD OF USE:
- For single-leaf doors, up to 1100mm wide;
- For right and left opening doors without any modification;
- Possibility of traditional assembly, on the door, or inversely.
