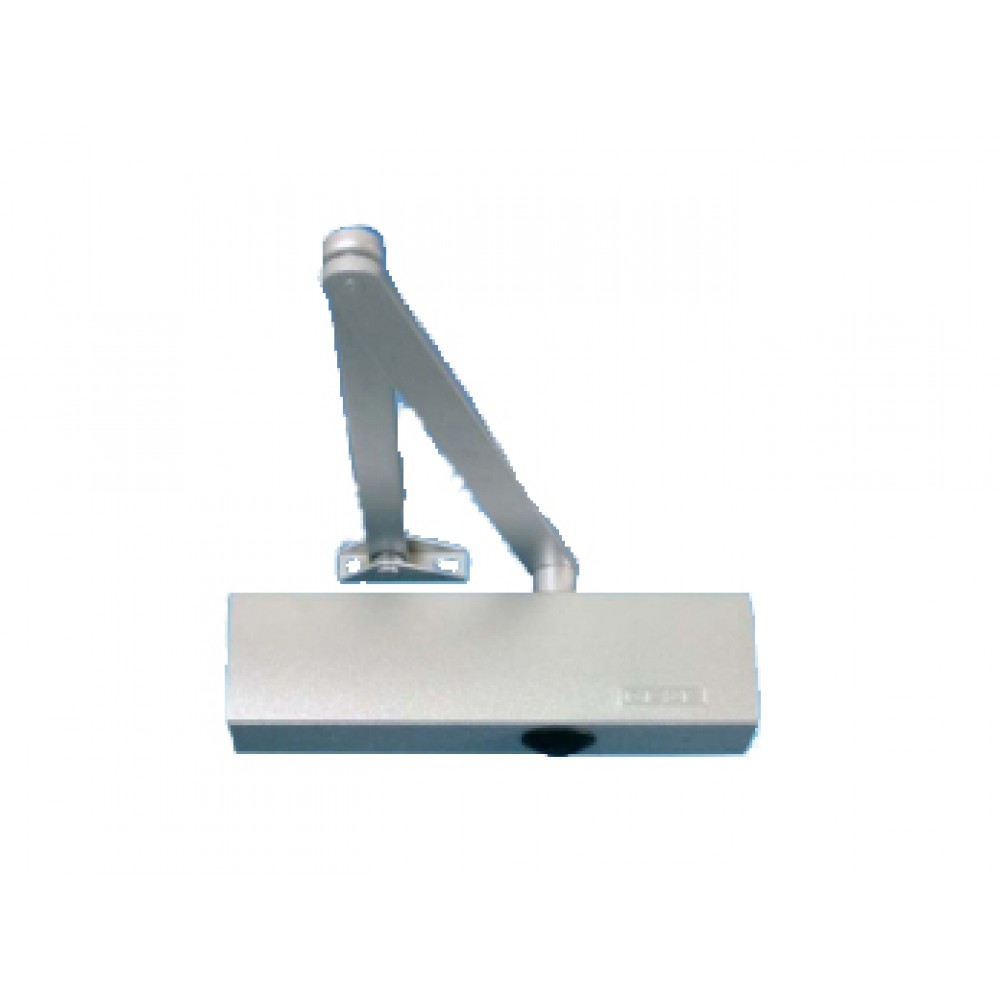

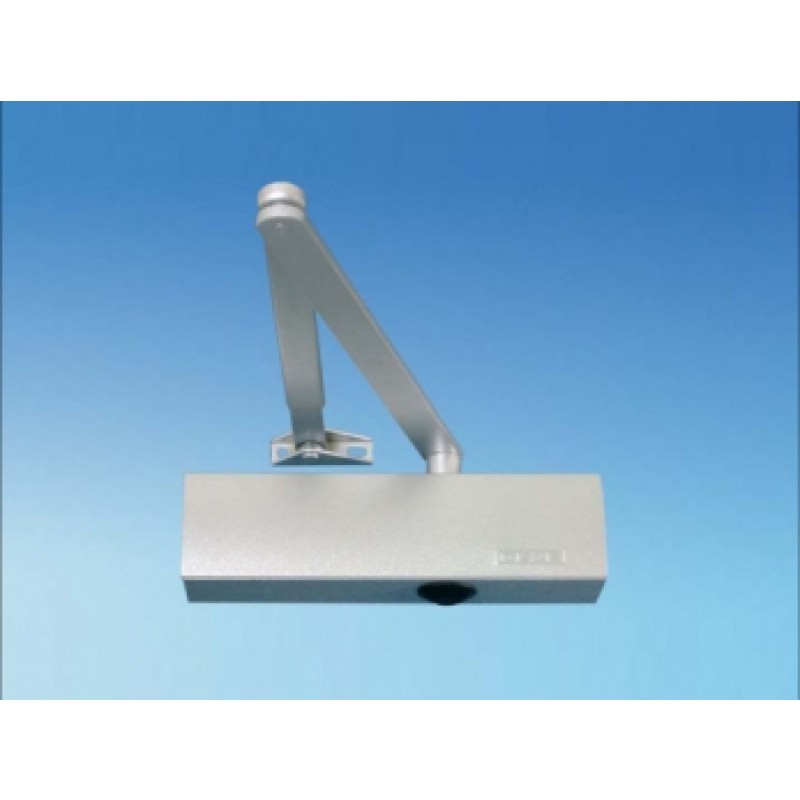

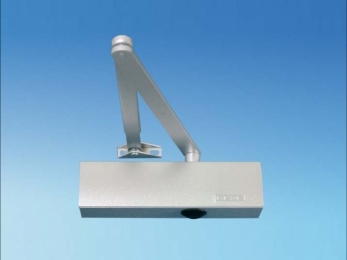

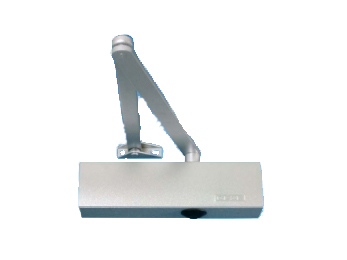

Plane closers Geze TS 2000 V V Without Without Arm Force Quit 2/4/5

Geze
Brands: Geze
Code: TS 2000 V SENZA FERMO
£ 62,84
Prices excluding VAT
You have chosen:

- +
Geze TS 2000 V; Plane closers with arm V Without Stationary Force Closing 2/4/5 (EN1154)

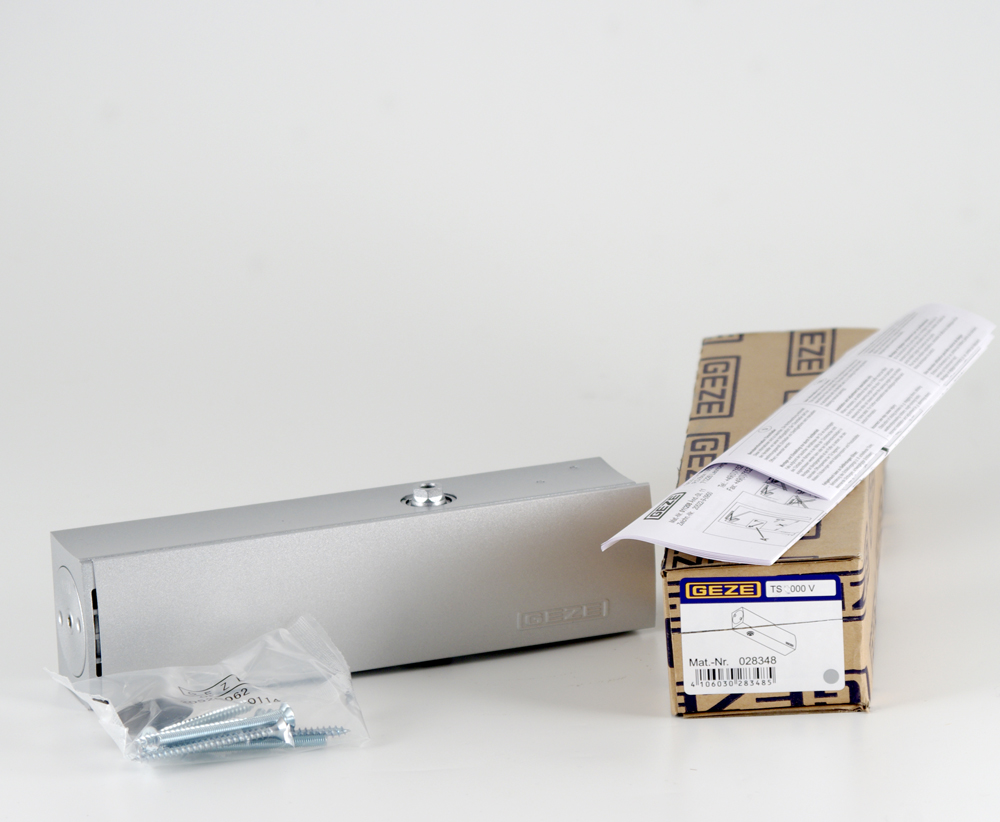

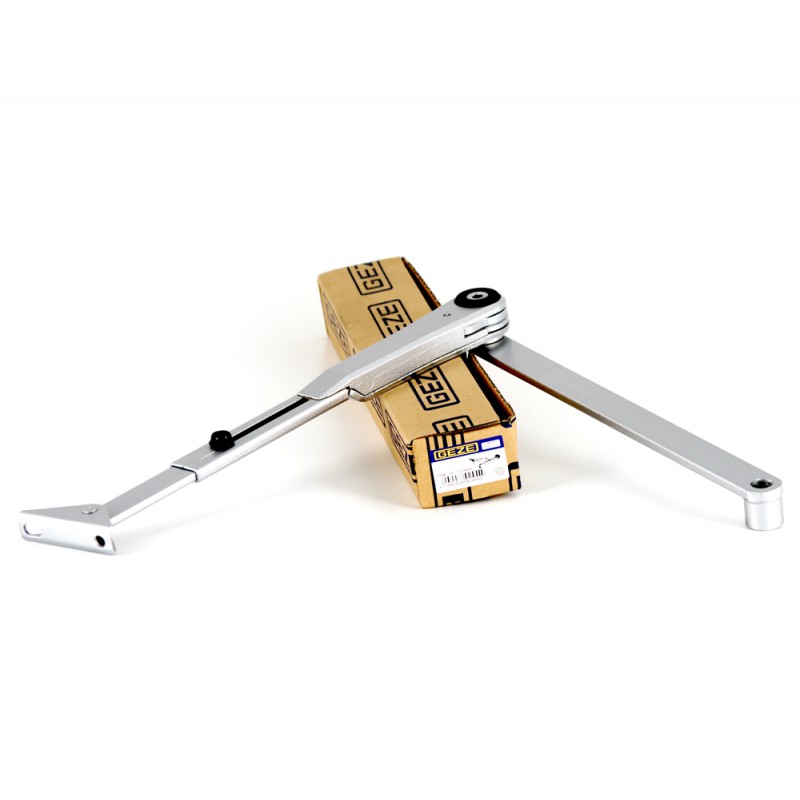

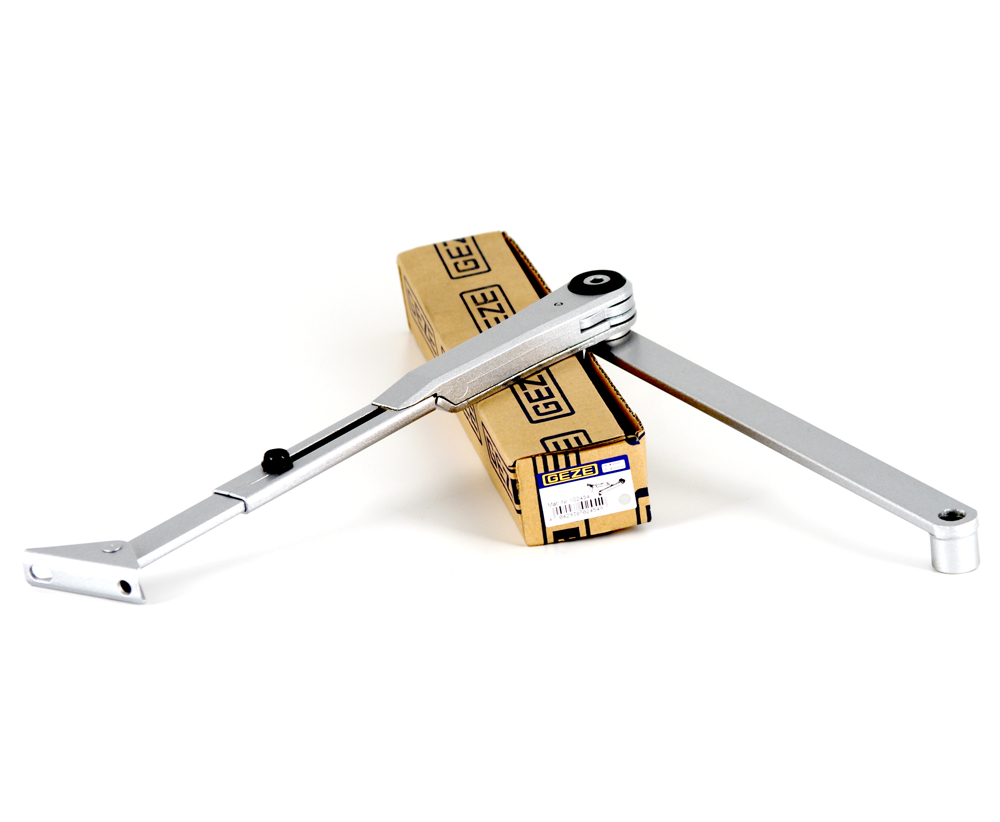

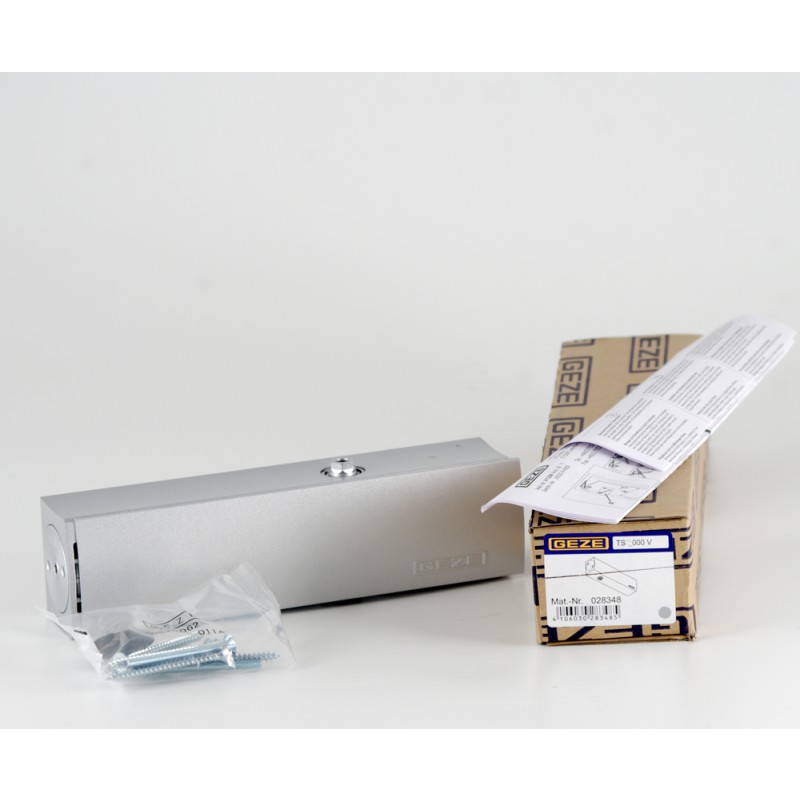

GEZE TS 2000 V, with V-latch arm with adjustable power, complete with hardware and installation template (mounting plate not included).

TECHNICAL DESCRIPTION:
Closing force, force 2/4/5 according to EN 1154.
One measure of clutter.
Closing speed adjustable from the front.
Adjusting the final blow on the arm.
Mounting plate not included.


door closers GEZE 2000

FIELD OF USE:
  • For single leaf door, with widths up to 1250mm;
  • For doors with opening on the right and left without any modification;
  • Possibility of traditional assembly, on the leaf or on the frame.
Product Features Closers Geze TS 2000 V
Closing force to EN 1154 2/4/5
Leaf width max. recommended 1250mm
Same performance DIN-L and DIN-R Yes
Controlled product according Closers controlled according to EN 1154
Length 226mm
Constructive depth 48mm
Height 60mm
Features Closers Geze TS 2000 V
Adjustable closing force Yes, via mounting
Adjustable closing speed Yes
Latching action adjustable Yes, via arm
Resistance in integrated opening No
Position adjustable clamping force Mounting position
Valves termostabilizzate Yes

NOTE: For adjustment of the opening angle between 70 ° and 150 ° we are recommended buying the version with latch disengaged (available in "Closer Aircraft"): "Geze TS 2000 V; Closers Air Arm with Vee No firm Disinserbile, Force Quit 2/4/5 ".

GENERAL INFORMATION ON AIR GEZE DOOR CLOSER WITH ARM (taken from the catalog Geze):
chidiporta GEZE 2000 features
