E-LOCK ULTRAFLEX UCS 24 Vdc - Linear Actuator for Moving Perimeter Hardware Windows

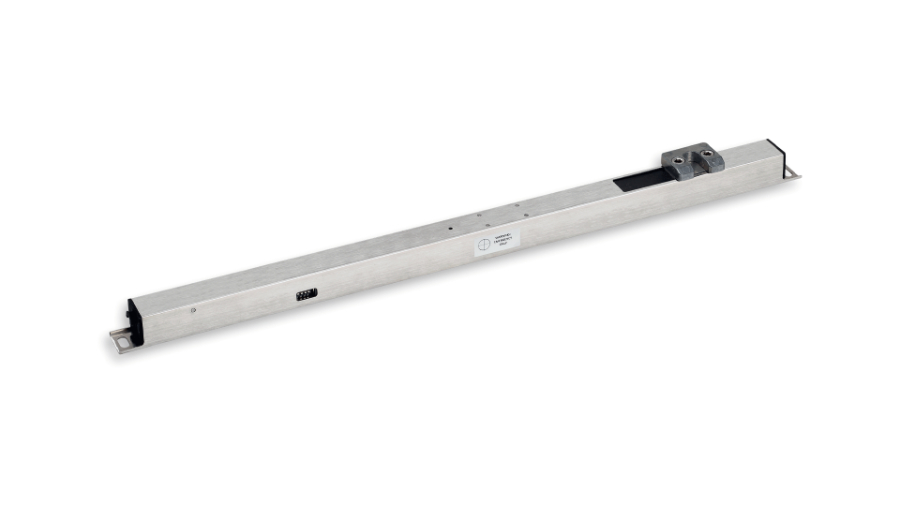

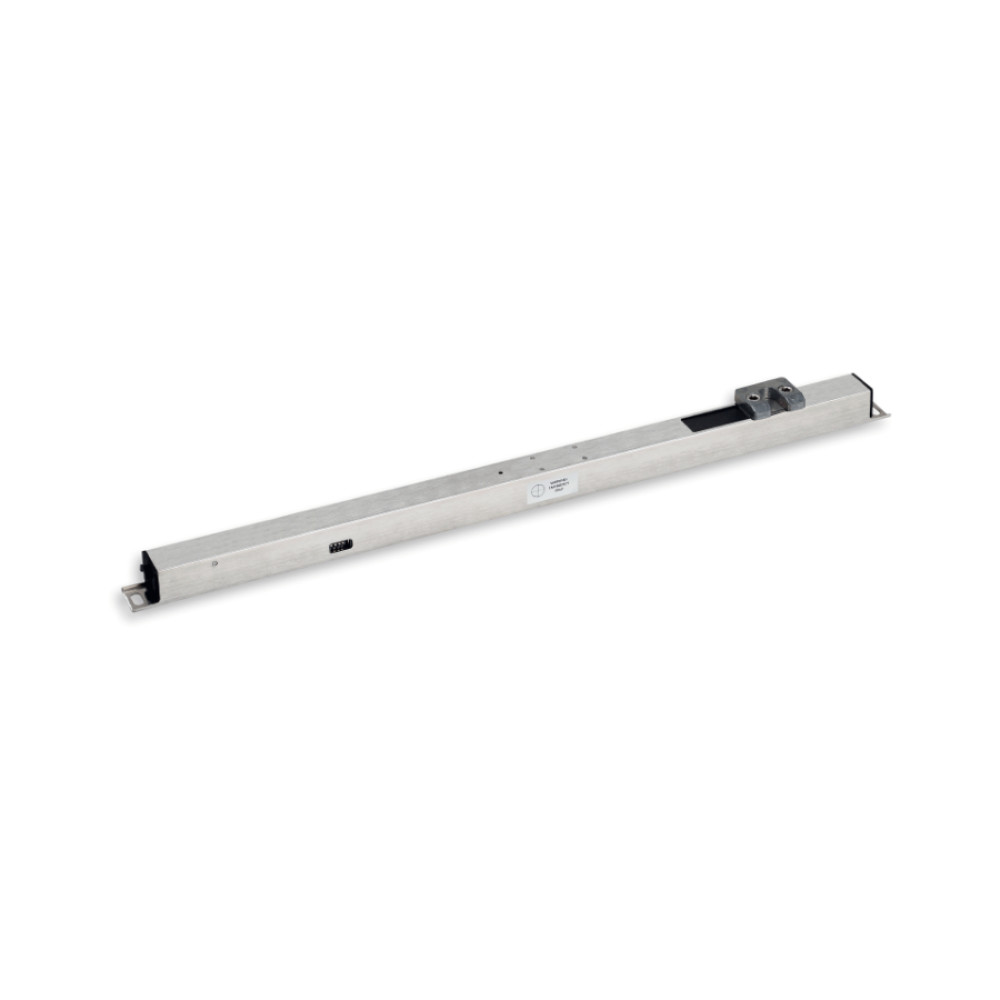

E-LOCK ULTRAFLEX UCS is the linear actuator designed to
automatically lock and unlock the perimeter hardware of windows .

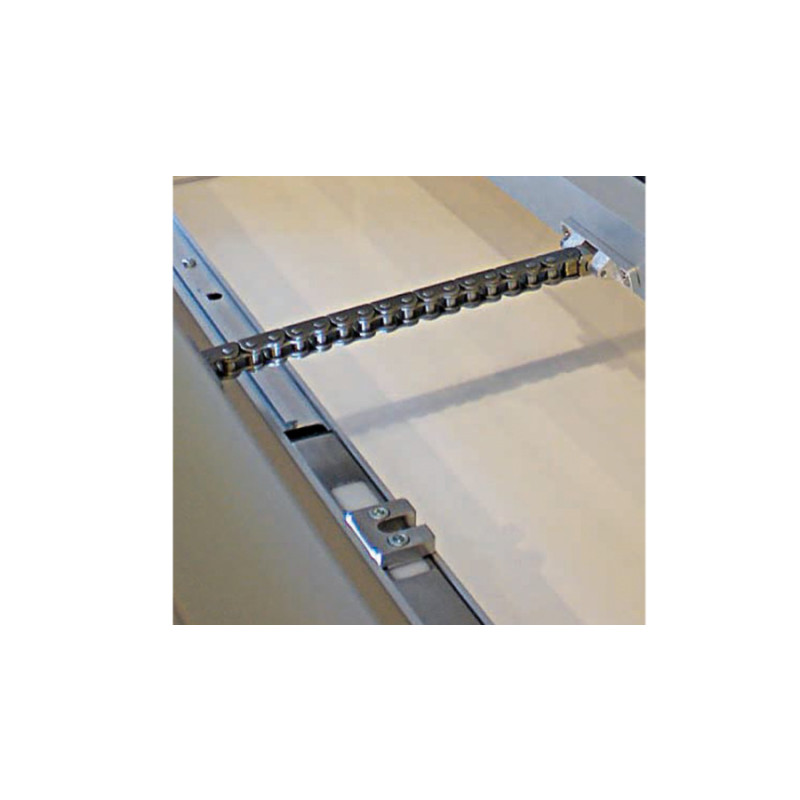

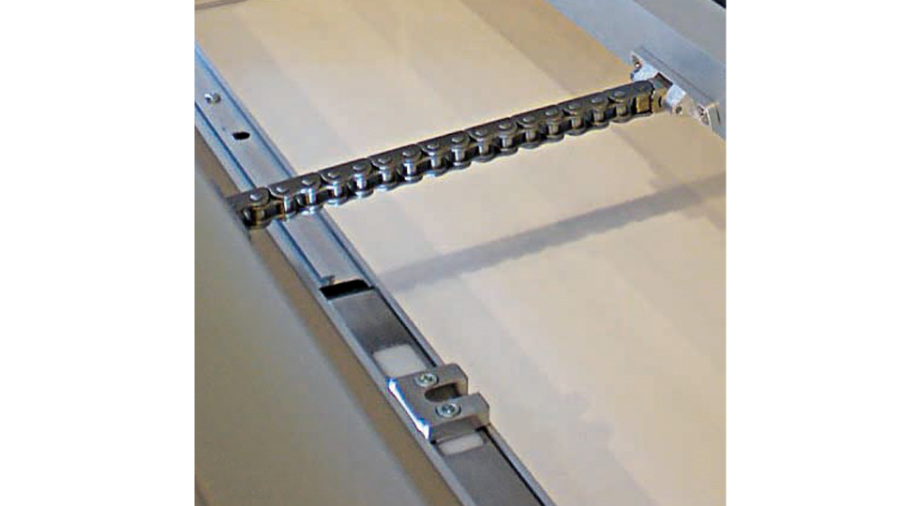

Used in combination with a chain actuator (QUASAR, VEGA, NANO 24 Vdc series), it guarantees
maximum sealing when closing the window , even in the presence of multiple locking points.
Available in the version with brackets (installation inside the profile) or with long fork (installation outside on a milled profile), E-LOCK adapts to different architectural configurations. It is also compatible with SHEV (Smoke and Heat Exhaust Ventilators) systems according to the EN 12101-2 standard.
Main features E-LOCK ULTRAFLEX UCS 24 Vdc
- Linear movement for perimeter hardware operation;
- High locking force (600 N in push and pull);
- Selectable stroke: 19 or 38 mm (via internal dip-switches);
- Stainless steel casing, sturdy and durable;
- Possibility of mounting on both sides thanks to the reversible plate;
- Manual release mechanism for emergencies included;
- Compatible with UCS 24V actuators QUASAR, VEGA and NANO series;
- BMS version available for management via Building Management System;
- Synchronized logic operation with chain actuator (automatic opening/closing sequence).
Technical specifications E-LOCK ULTRAFLEX UCS 24 Vdc
- Power supply: 24 Vdc ±10%;
- Current draw at maximum load: 0.3 A;
- Selectable stroke: 19mm or 38mm;
- Full load speed: ~1.6 mm/s;
- Force: 600N (push and pull);
- End of travel: Hall sensor;
- Protection: Electronic shutdown in case of error;
- Degree of protection: IP32;
- Command: Reverse polarity;
- Parallel connection: supported;
- Assembly: with brackets or long fork (dedicated kit);
- SHEV compatibility: EN 12101-2 compliant;
- Operating temperature: -10°C to +60°C (indoor use);
- Compact size, installation can be integrated into the window profile.
E-LOCK ULTRAFLEX UCS 24 Vdc installation mode

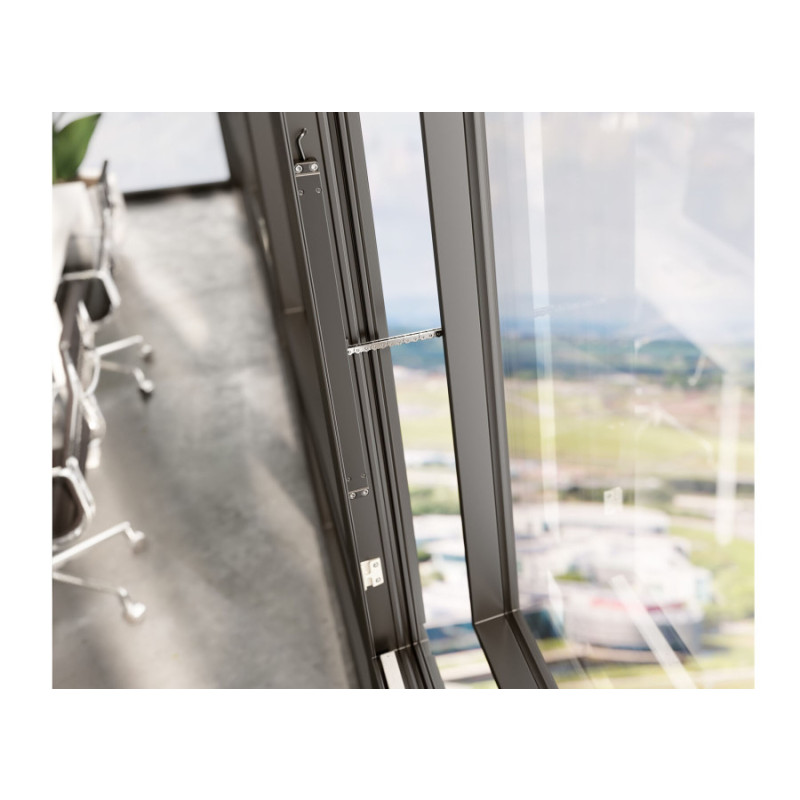

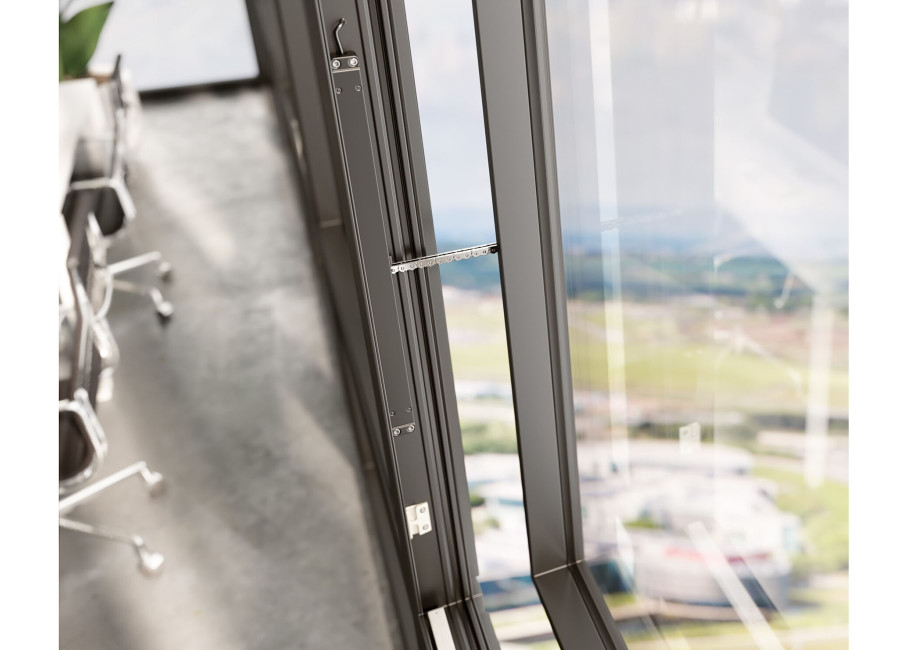

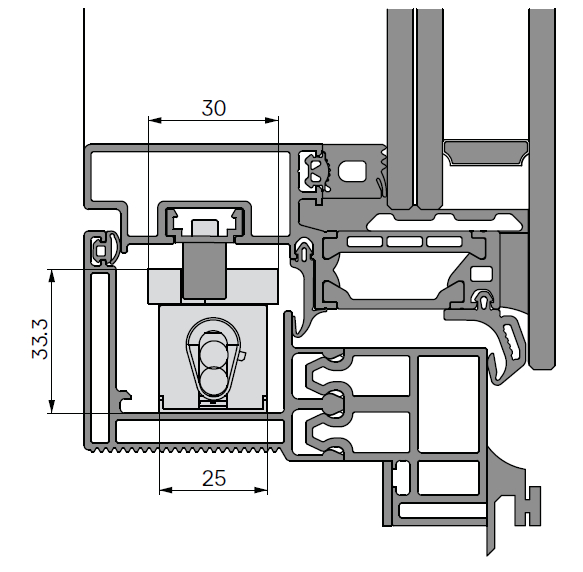

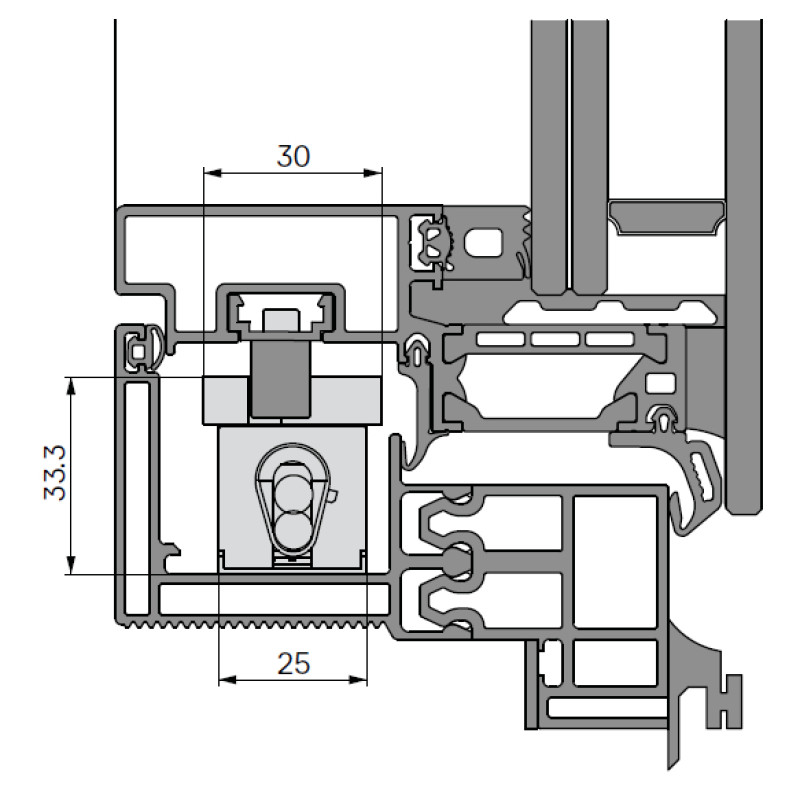

- With brackets : actuator integrated inside the window profile;

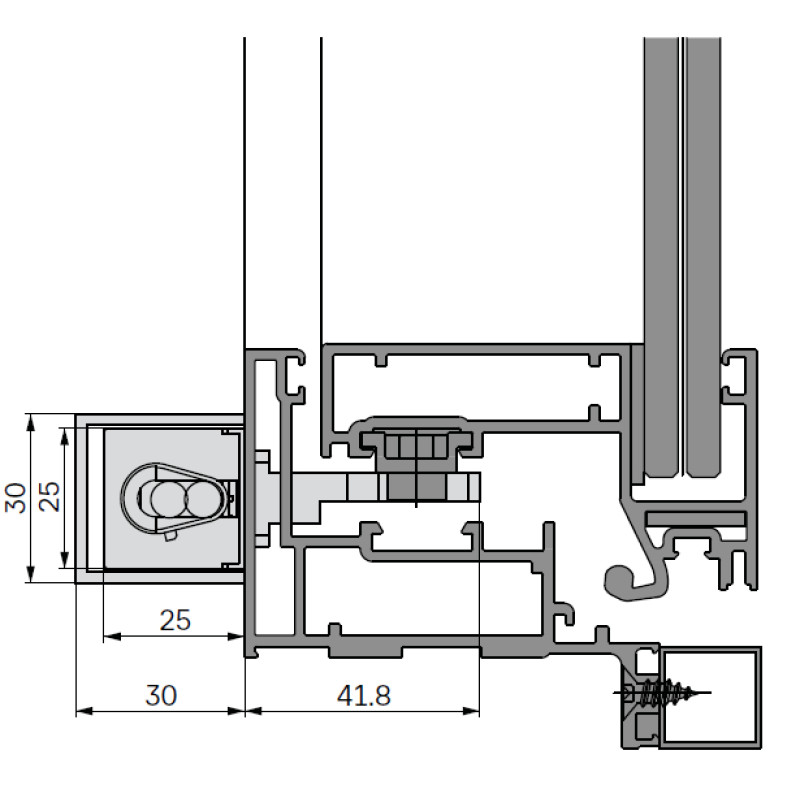

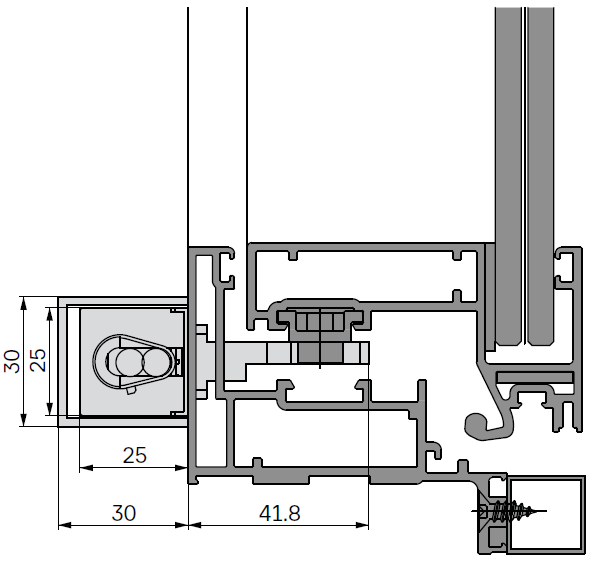

- With long fork : actuator external to the profile, with connection to the hardware via milling;
- The access hole for emergency release must be visible and marked during installation;
- Compatible with automatic opening and closing sequences via E-Lock logic + chain actuator.
Safety and maintenance E-LOCK UCS 24 Vdc
- The emergency mechanism allows manual release in the event of a power failure;
- System protected by return to safety position in case of obstacles or low voltage;
- Installation to be carried out by qualified personnel only.
