D8 Fce Mingardi Rod Actuator Stroke 200-300-400mm

Mingardi
Brands: Mingardi
Code: D8 Fce WAY
£ 53,70
Prices excluding VAT
Are you looking for an actuator from the Mingardi catalog that is not on our site? Contact us and ask for a quote.

- +

D8 Fce Mingardi - Rod Actuator - Stroke 200-300-400mm (optional)

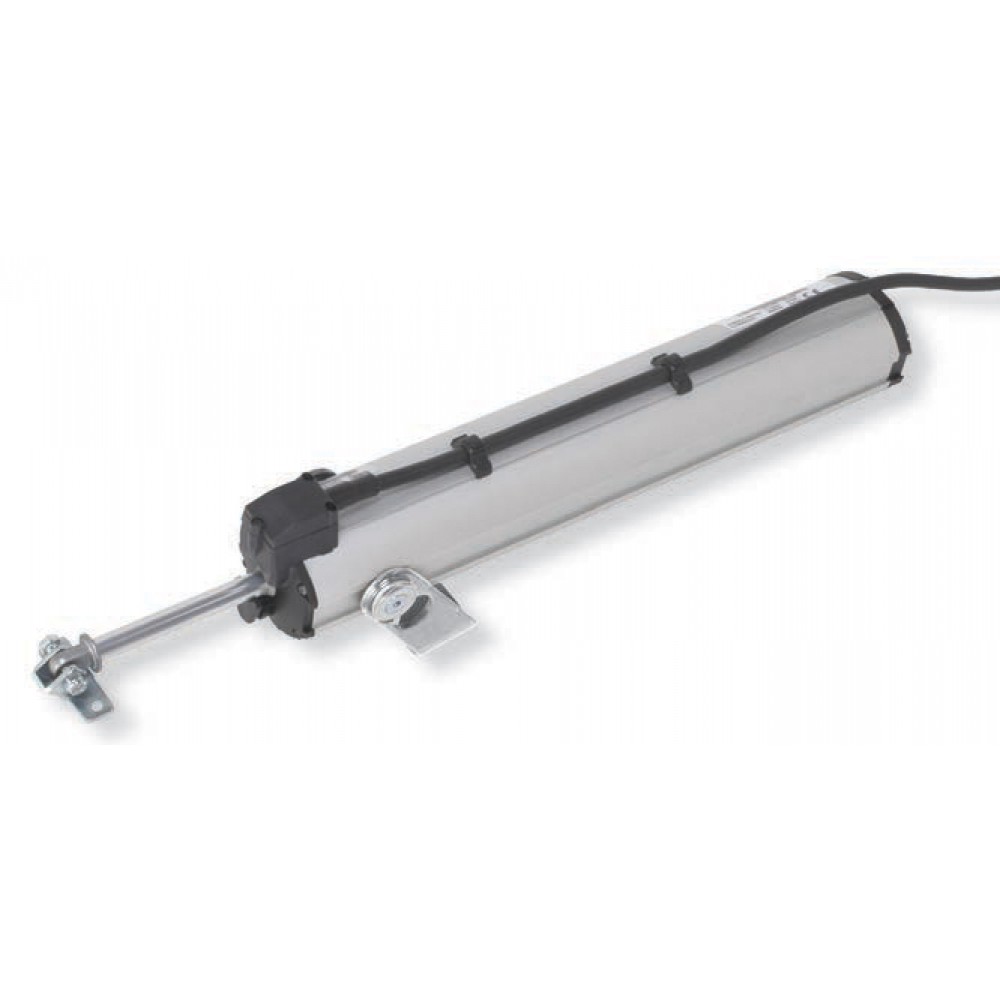

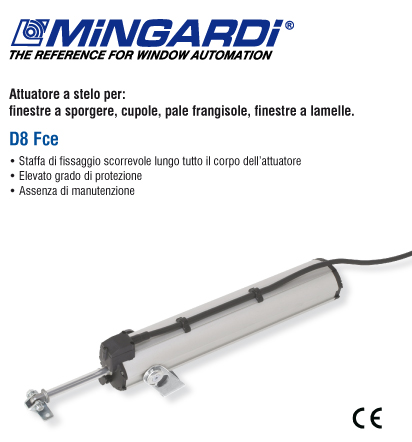

D8 Fce Mingardi, rod actuator for top hinged windows, domes, sunshade blades, louvred windows.

D8 Fce Mingardi Mingardi linear electric actuator with rigid rod movement with high resistance to peak loads.

  • Operation with 230V~ / 50Hz power supply voltage.
  • Compliant with Directives 2006/95 LVD - 2004/108 EMC.
  • Equipped with limit switch microswitches and relays for parallel connection.
  • Built-in thermal protection.

D8 Fce Mingardi rod actuator colour: silver anodized. Complete with fixing accessories.

D8 Fce Mingardi Rod Actuator for Window - Stroke 200-300-400mm

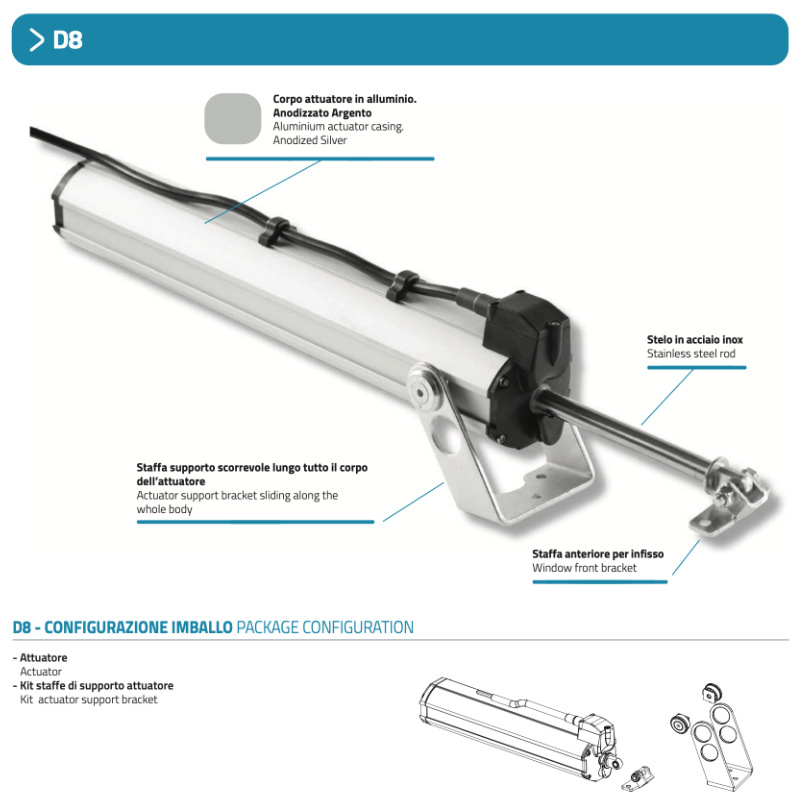

Features Mingardi D8 Fce 230V Rod Actuator

  • Fixing bracket sliding along the whole body of the actuator;
  • Absence of maintenance;
  • High degree of protection: IP 55;
  • Closing - opening limit switch: microswitch;
  • Color: anodized silver.

D8 Fce Mingardi Technical Data*
Code Description Voltage Push Traction Race Max absorption Minimum speed A (mm)
2700934 D8 200mm - (A) 230V ~ /50Hz 500N 200mm 175W approx. 12mm/s 318.8
2700933 D8 300mm - (A) 230V ~ /50Hz 500N 300mm 175W approx. 12mm/s 418.8
2713834 D8 400mm - (A) 230V ~ /50Hz 500N 400mm 175W approx. 12mm/s 518.8

*The performance values shown in the table are verified at a temperature of -10°C/+40°C, with a maximum relative humidity of 60%.

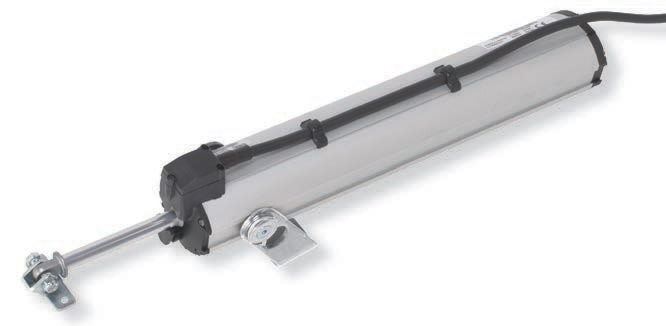

Mingardi D8 Fce rod actuator for window

Rod actuator d8 fce mingardi

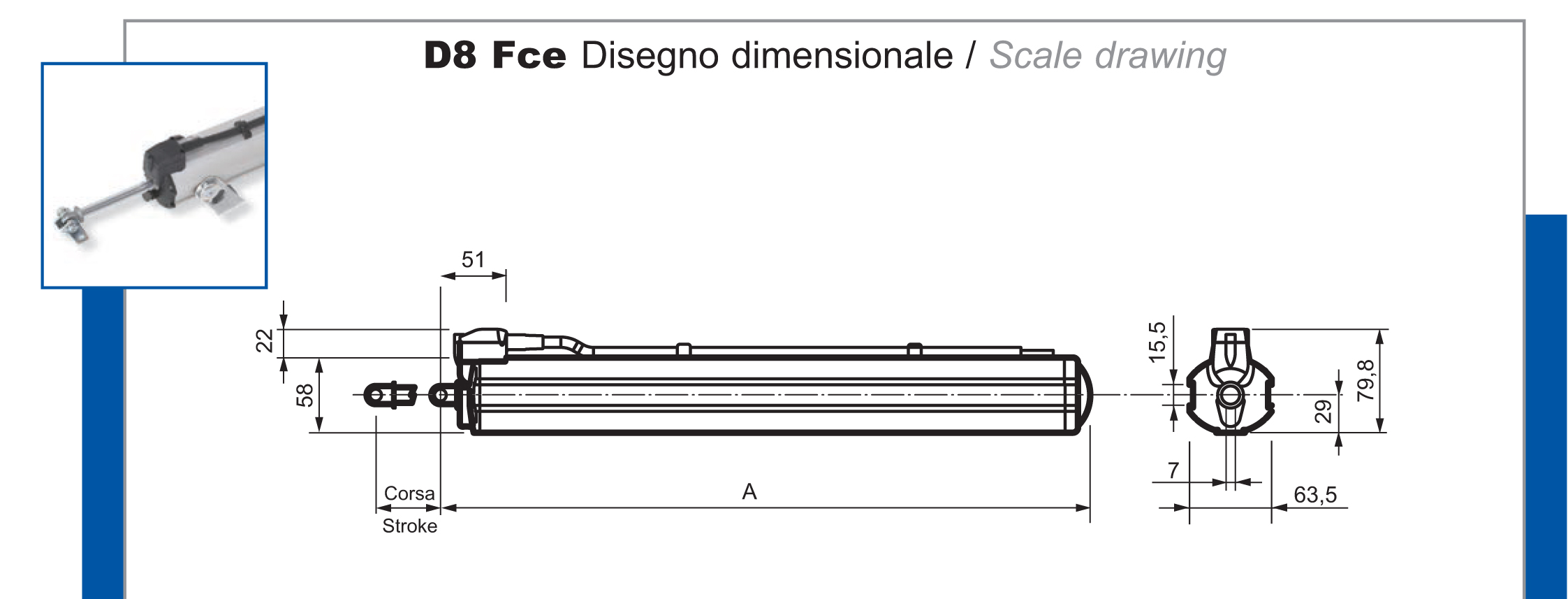

Stroke/Length D8 Fce Mingardi: 200mm (H:318,8mm), 300 (H:418,8mm), 400 (H:518,8mm).


Mingardi actuators and best Made in Italy solutions

Founded in 1968, Mingardi is synonymous with quality motorization for doors and windows, for ventilation and smoke evacuation in the event of a fire.

Mingardi actuators are produced in Italy by the company Window Automation Industry Srl.
