Rod Actuator WAY Mingardi D16 Fce Stroke 300-500mm 230V

Mingardi
Brands: Mingardi
Code: D16 Fce WAY
-30%
£ 165,49 £ 236,41
Prices excluding VAT

Unavailable

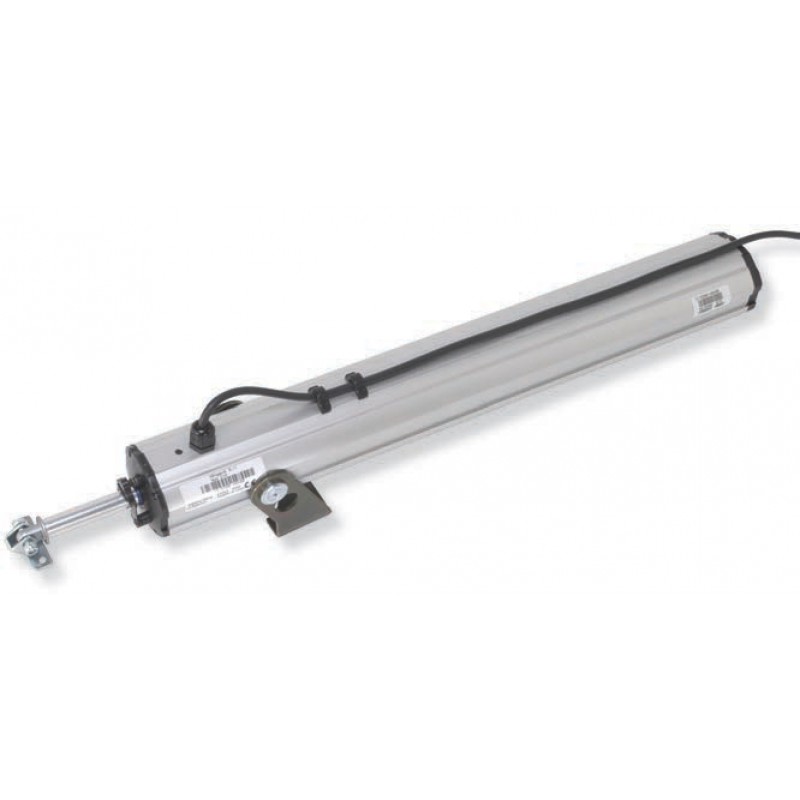

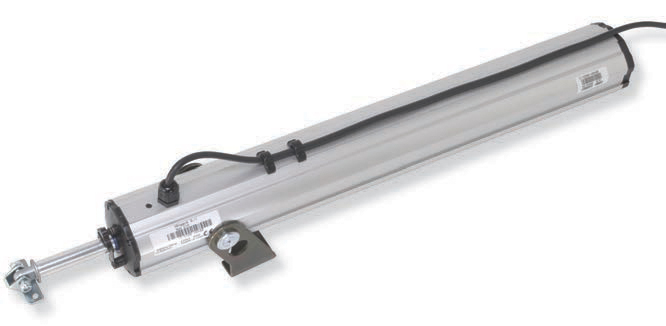

Rod Actuator WAY Mingardi D16 Fce Stroke 300-500mm 230V
Rod actuator for top hinged windows and domes


Rod actuator D16 Mingardi with rigid rod movement, highly resistant to peak loads.
peration 230V~ 50 Hz power supply.
It complies with 2006/95 LVD - 2004/108 EMC directives.
It is equipped with limit switches and relays for the parallel connection.
Incorporated thermal overload protection.
Available colours: anodised silver. Complete with fixing accessories.

Characteristics:
  • High power;
  • Fixing bracket sliding along the whole body;
  • High protection degree;
  • Maintenance free;
  • Protection degree electrical devices: IP 55;
  • Limit switch closing-opening: Microswitch;
  • Colour: Anodised Silver (A);
  • Operating temperature: -10°C +40C°.

Technical Features*
 Code  Description  Voltage  Thrust Tensile  Stroke  Power Consumption  Speed  Min.
 2700298  D16 300 mm - (A)  230 V~ / 50 Hz  1000N  300mm  270W  ca. 21 mm/s
 2700301  D16 500 mm - (A)  230 V~ / 50 Hz  1000N  500mm   270W  ca. 21 mm/s

*The values indicated on the table are average values were recorded in condition of normal use.

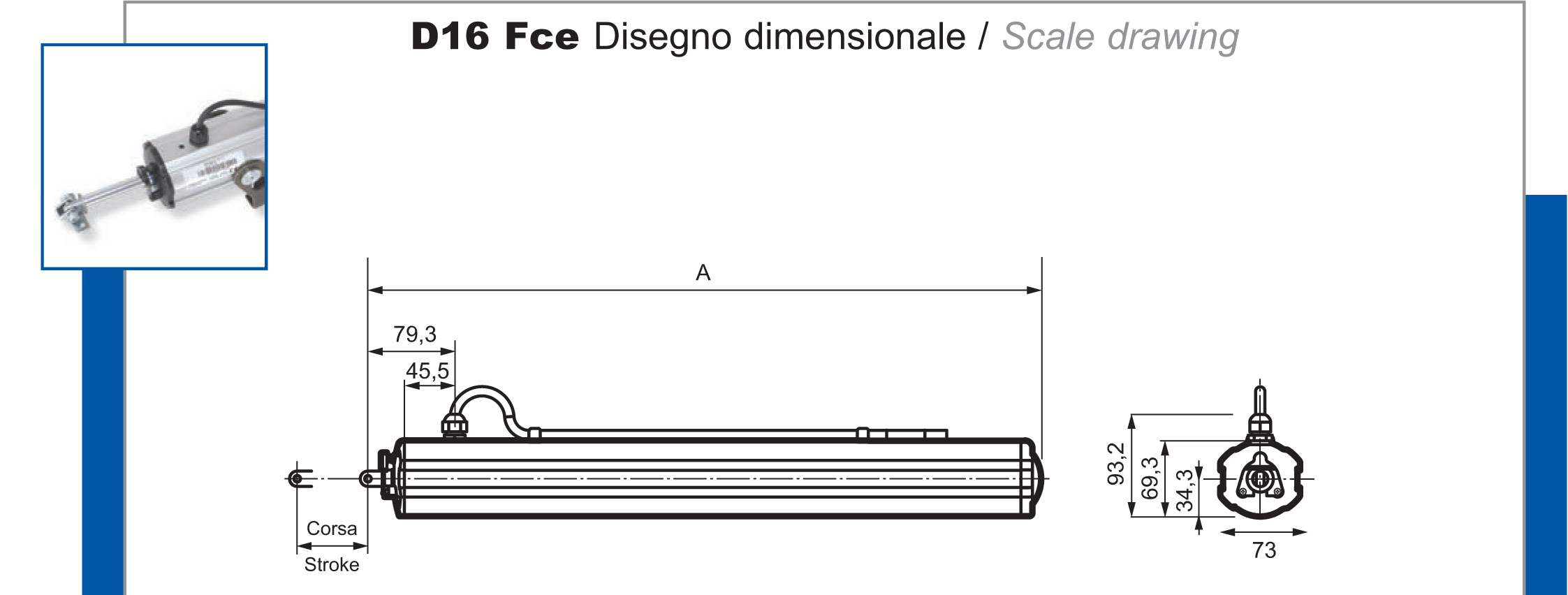

Stroke/A: 300mm (A:415,5mm), 500mm (A: 615,5mm).
D. mi servirebbe un motore Mingardi D 16 corsa 500 mm. in quanto tempo si puo avere. grazie. cordiali saluti. Fabrizio
R. Buongiorno Fabrizio, purtroppo il modello in questione è fuori produzione. Bisogna per forza trovare un modello alternativo. Cordiali saluti, Windowo
