C40 Topp Window Chain Actuator 230V with Adjustable Stroke

Topp
Brands: Topp
Code: C40 230V
-20%
£ 113,04 £ 141,30
Prices excluding VAT

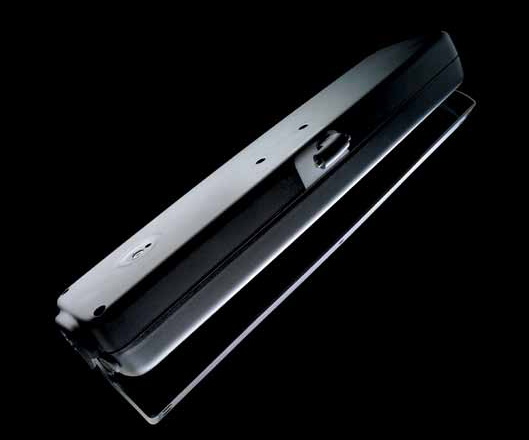

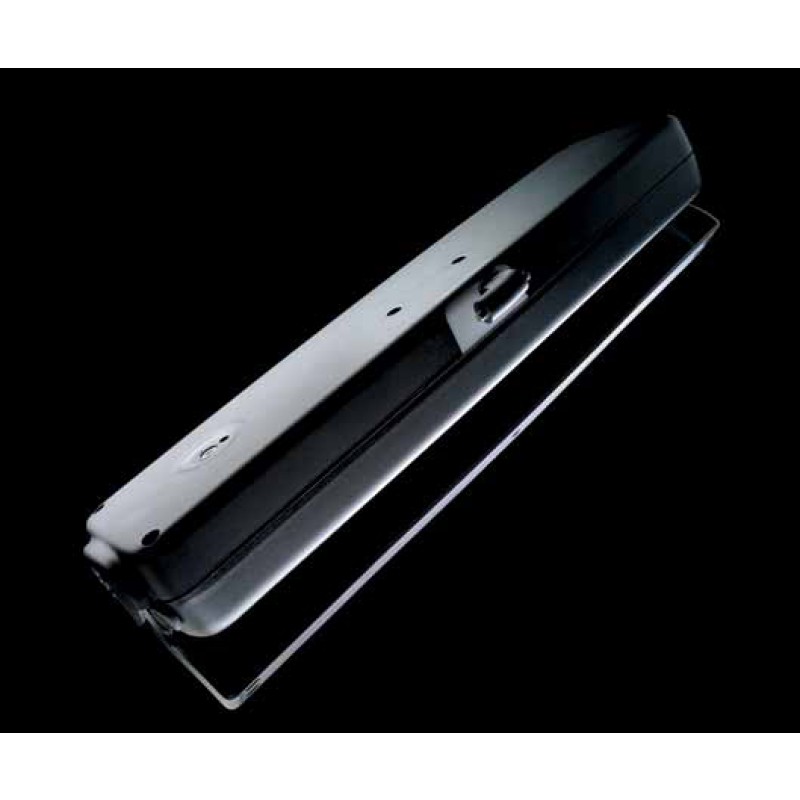

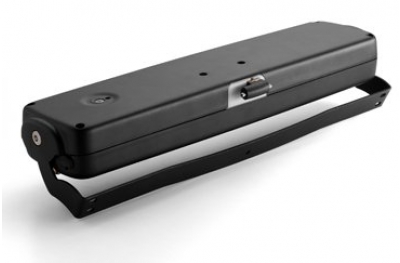

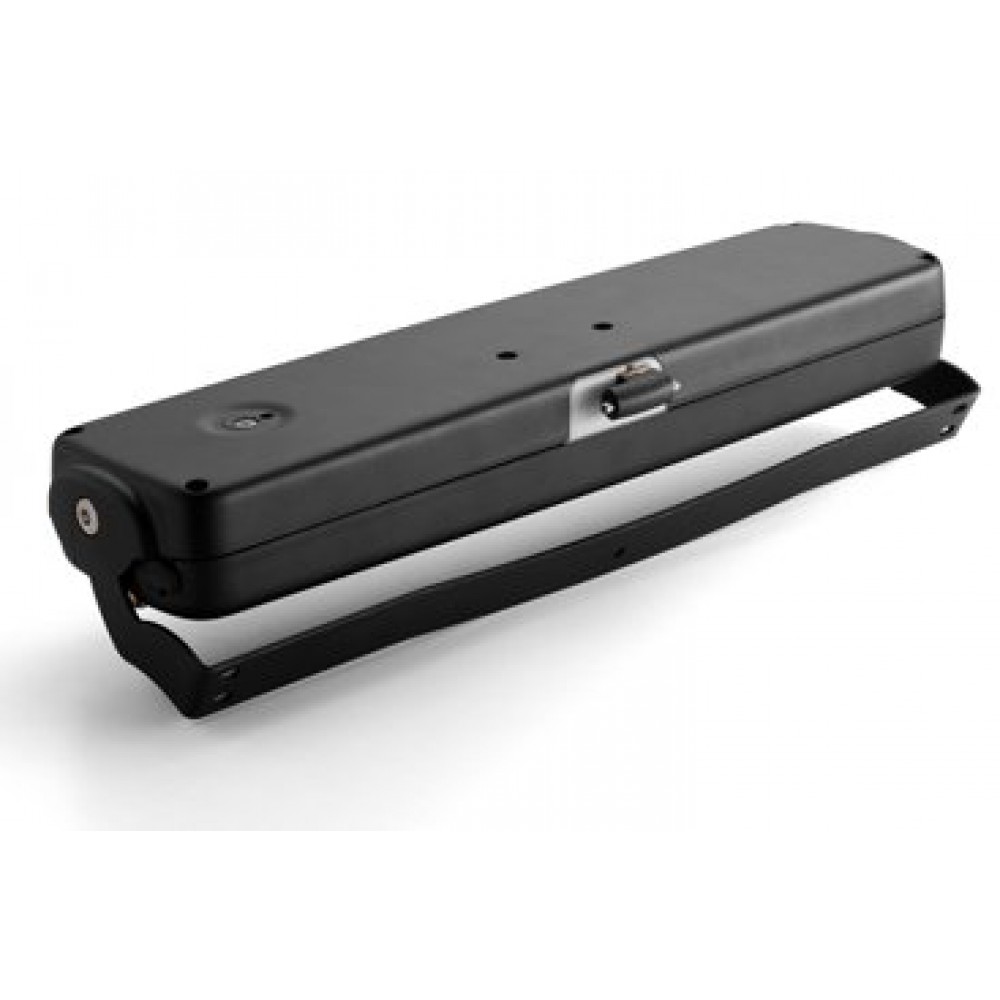

Topp C40 230V actuator with double link articulated chain, contained in a special casing, complete with support and accessories.
You have chosen:
Are you looking for an actuator from the Topp catalog that is not on our site? Contact us and ask for a quote.

- +

Chain Actuator - Topp C40 230V 50Hz - 1 Push Point - Black Gray or White

C40 230V Topp actuator with 400 N thrust force - Max adjustable stroke 500 mm

Topp electric actuator model C40 230V with double-link articulated chain, contained in a special casing, complete with support and accessories for top-hung or top-hung opening.

  • Operation 230V 50Hz.
  • Maximum applicable load 400N.
  • Quick coupling attachment to the frame.
  • Max stroke of 500mm with stroke adjustment in 7 positions (100, 150, 200, 250, 300, 400, 500mm) by means of a special adjusting knob.
  • Electronic limit switch in closing with current absorption.
  • Safety device for reduction of traction force in the last 10cm of the stroke.
  • Degree of protection for electrical devices IP55.
  • CE marked device.


Technical characteristics of the Topp C40 230V window motor:

  • Supply voltage: 230V 50Hz;
  • Maximum applicable thrust load: 400N;
  • Maximum applicable load in traction: 400N;
  • Strokes: 100, 150, 200, 250, 300, 400, 500mm;
  • Absorption: 0.24A;
  • No-load translation speed: 18.5mm/s;
  • Duration of idle run: 27s;
  • Double electrical insulation: yes;
  • Type of service: S2 of 5min;
  • Operating temperature: - 5 / + 50 °C;
  • Degree of protection for electrical devices: IP55;
  • Adjustment of the attachment to the frame: not necessary;
  • Chain position control: yes;
  • Limit switch: electronic in opening, absorption in closing;
  • Electronics with buzzer for user signal incorrect assembly: yes;
  • Dimensions: 387.6x95x50mm;
  • Weight: 1.9Kg.

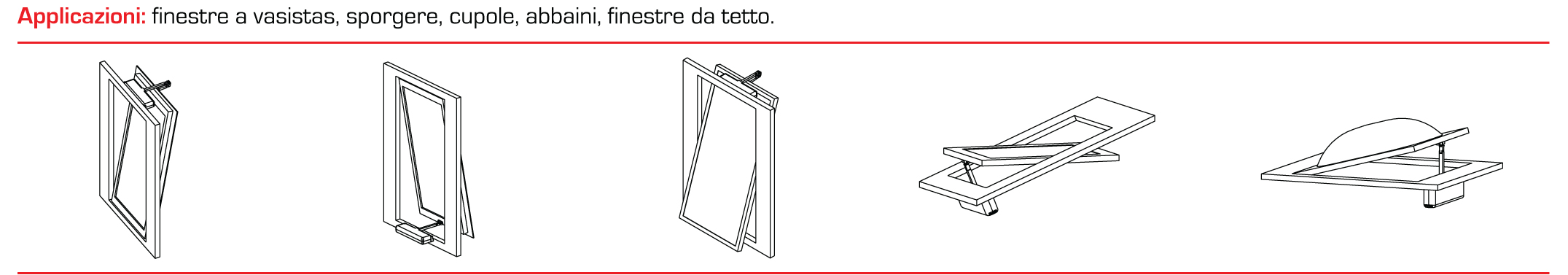

Applications C40 230V Topp: bottom-hung windows, projecting windows, cupolas, dormer windows, roof windows.

Applicazioni C40 230V Topp

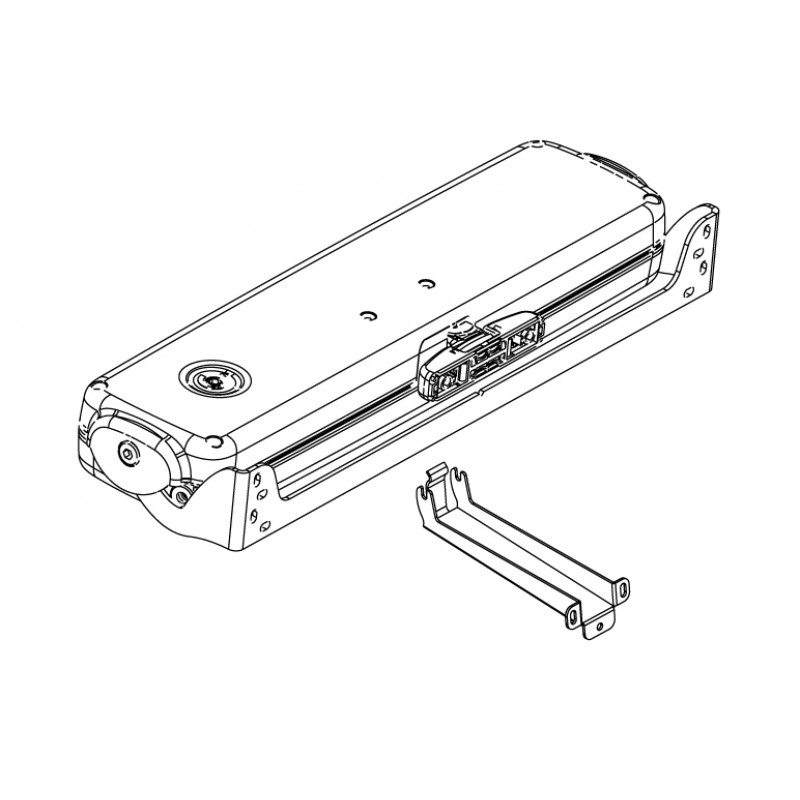

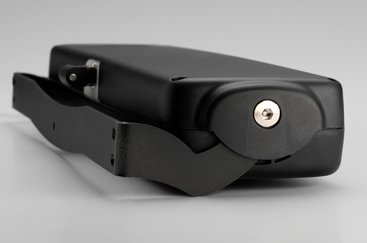

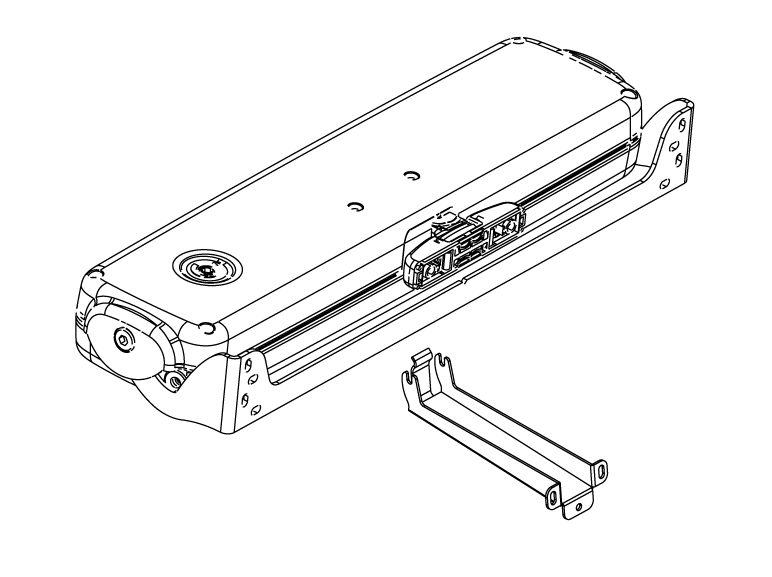

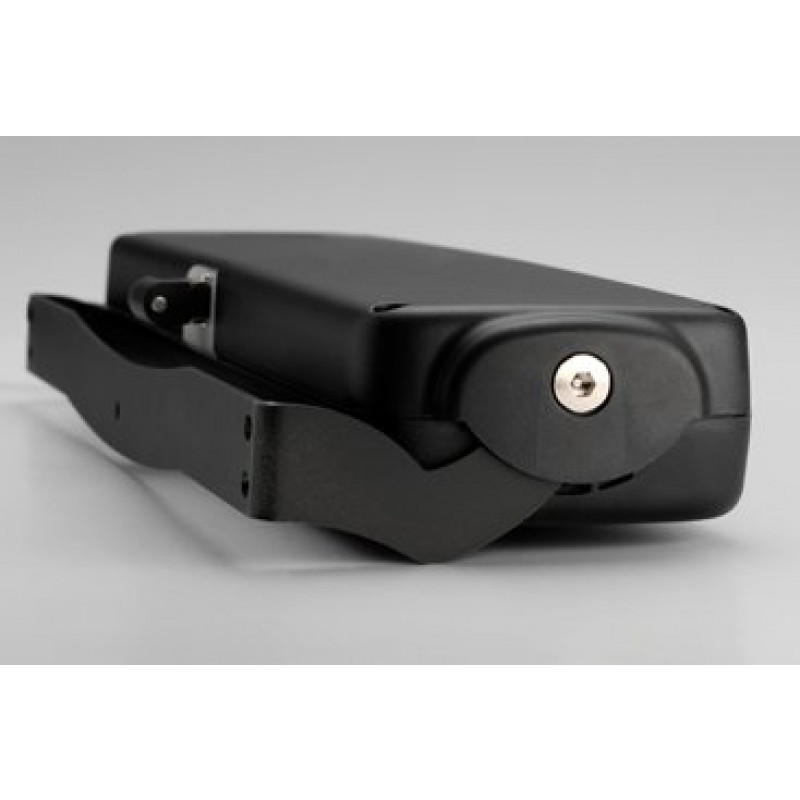

Included in the package: chain actuator (small parts included), tilting front mounting bracket, bottom hung bracket, ARS quick connection to the window.
Actuator and brackets are black, gray or white (depending on the color chosen).


Why choose the C40 Topp engine?

  1. Double link chain with very high resistance to peak loads;
  2. Possibility of adjusting the stroke in 7 positions of 100 or 500 mm;
  3. Quick hooking and unhooking system of the chain to the window (international patent);
  4. Limit switch in closing with current absorption to avoid adjustments in closing and remedy any positioning errors of the actuator;
  5. High degree of protection IP55.

C40 230V standard 1 push point
Code Description
3A2#000000175 C40 230V Chain Actuator - Black
3A2#000000170 Chain Actuator C40 230V - Grey
3A2#000000167 Chain actuator C40 230V - White

C40 230V Topp Attuatore a Catena per Finestra con Corsa Regolabile


Topp: Made in Italy automations for windows

The Italian company Topp offers a wide range of systems for the automation of doors and windows, designed to improve our daily well-being. Quality of materials and innovative solutions, combined with technical reliability and modern design have led Topp, in just a few years, to assume a position of great international importance in the automation sector for doors and windows.

Topp uses the most modern and updated 3D design technologies. The aid of laser sintering machines for rapid prototyping accelerates the study and industrialization process of the products and confirms the high level of production techniques. Topp's success is the conquest of an increasingly varied and demanding market that exalts, involves and stimulates the search for rational and innovative solutions.
