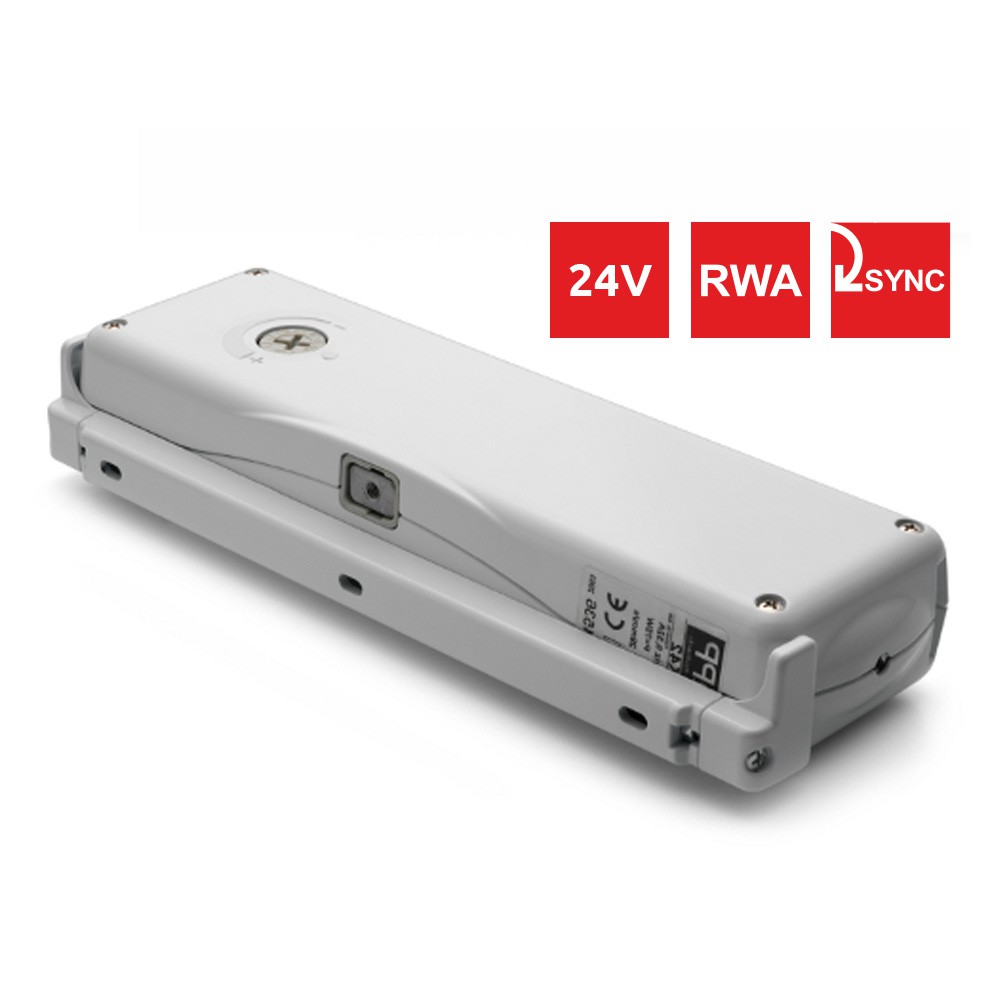

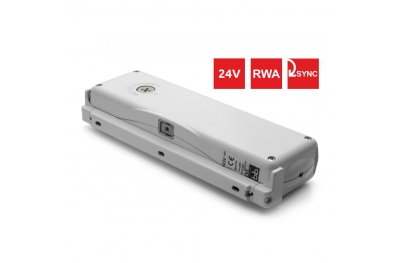

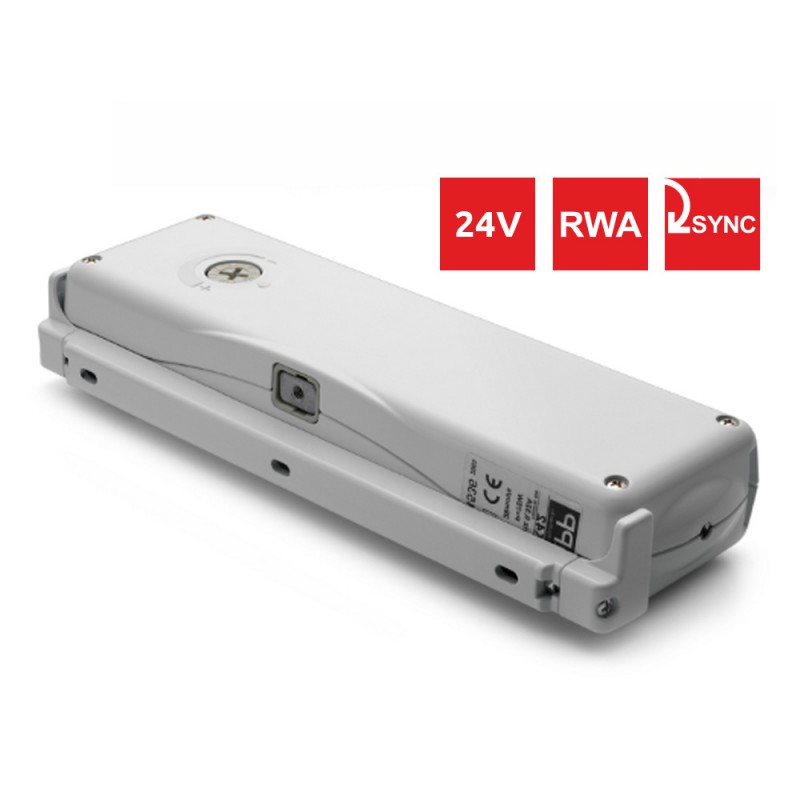

Chain actuator ACK4 RWA Sync 24V 1 for smoke heat ventilation applications synchronous operation of more actuators on same window Topp
ACK4 RWA Sync synchronised for more push points Black Grey White
Electric actuator Topp model ACK4 RWA with a double link articulated stainless steel chain, enclosed in a special diecast aluminum casing, painted with epoxy powders, with different mounting accessories for top and bottom hung windows.
CE marked device, complying with the EN12101-2 standard designed for smoke heat ventilation applications.
Can be used with RWA Control Panel and RWA Detectors (available separately on Windowo).
“S” version for the synchronous operation of more actuators on the same window is available.
The price is for single actuator.
Description of the actuator
- Operation at 24V;
- Max. stroke 40cm, adjustable at 100, 150, 200, 205, 300, 350, 400mm by an external handgrip;
- Electronics with acoustic device that warns of any eventual incorrect installations;
- Protection degree of electric devices IP55;
- CE marked device, complying with the EN12101-2 standard designed for smoke heat ventilation applications.
ACK4 RWA Sync 24V for more push points
Choose the version of your Topp actuator:

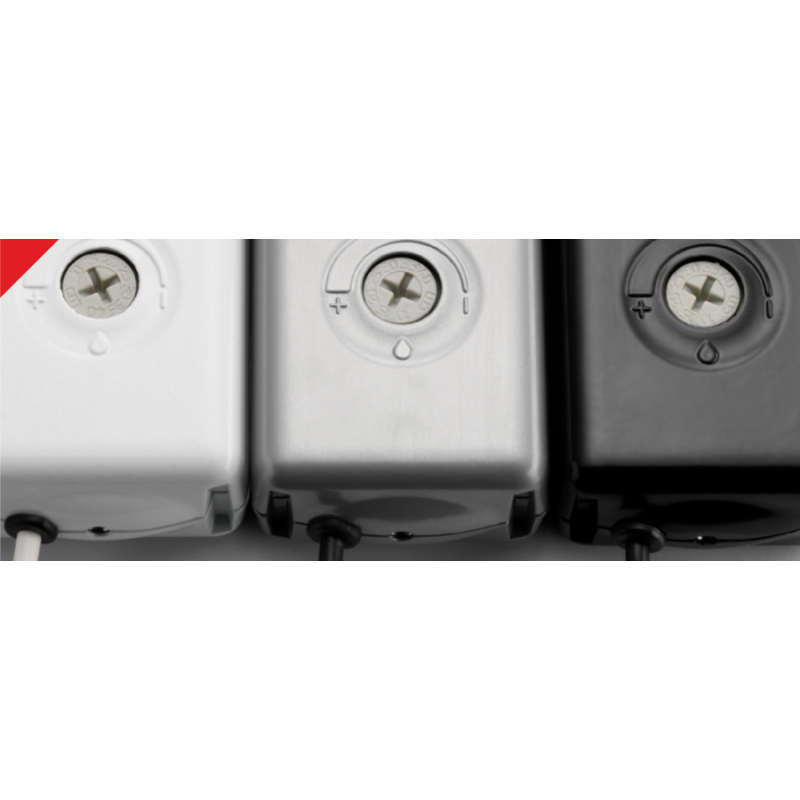

- 3A11#000003993 Sync - Black;
- 3A11#000004017 Sync - Grey;
- 3A11#000003992 Sync - White.
Application of the actuator
Choose the application of your Topp chain actuator:
- Application for Top-hung windows: standard;
- Application for Bottom-hung windows: with upper bracket black color (RWA version).
Why choose ACK4 RWA Sync Topp?
- Complying with the EN12101-2 standard designed for smoke heat ventilation applications;
- ACK4 S Sync is ideal to be synchronised and to function on more push points on the same window frame;
- Easy stroke adjustment;

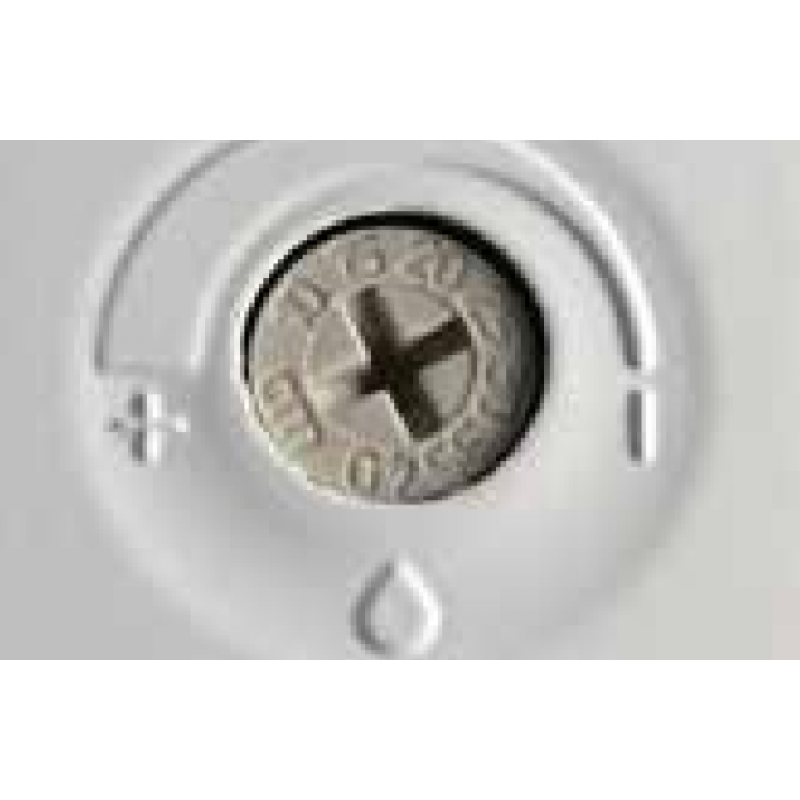

Easy stroke adjustment (7 positions from 100 to 400mm) - International patent.

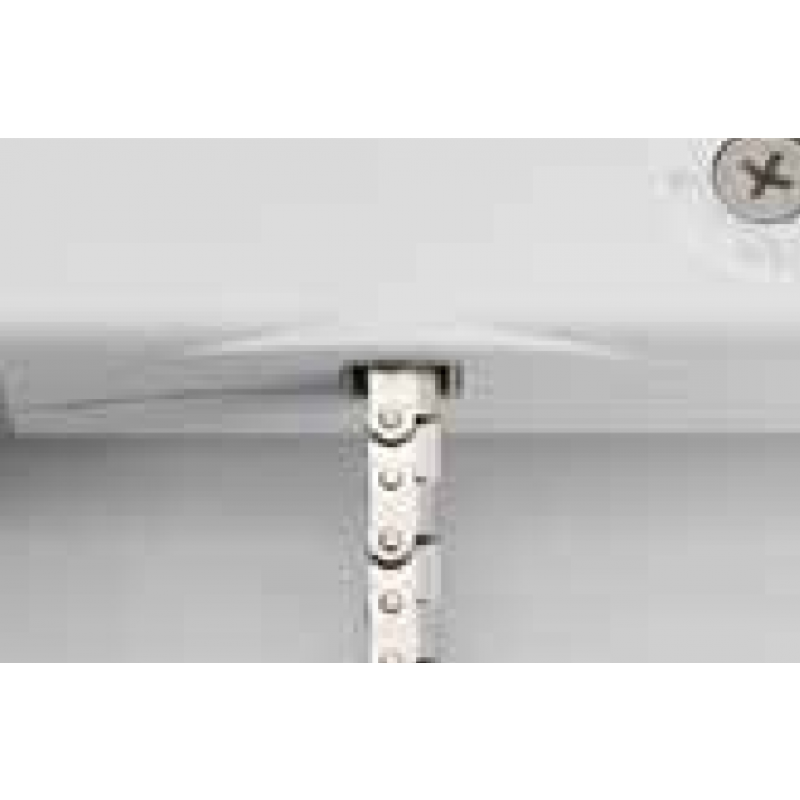

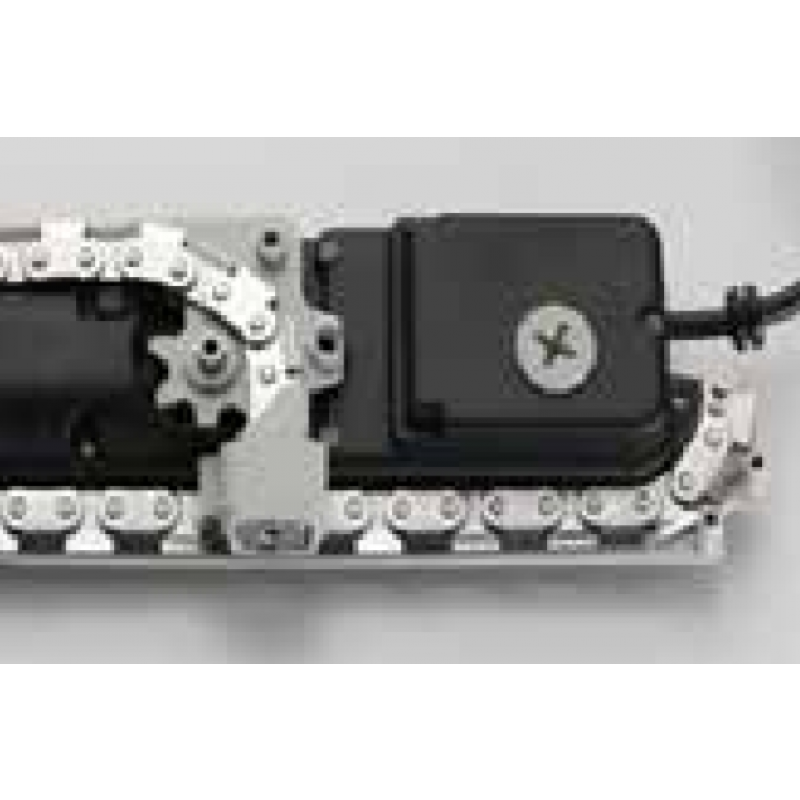

Double link articulated stainless steel chain.
High protection IP 55 rated.
Technical characteristics of the actuator
- Power supply voltage: 24V;
- Maximum applicable load in thrust: 300N;
- Maximum applicable load in traction: 300N;
- Strokes: 100, 150, 200, 250, 300, 350, 400mm;
- Absorbed current: 1,35A;
- Idle translation speed: 17mm/sec;
- Duration of the idle stroke: 23sec:
- Double insulated: yes;
- Service type: S2 of 3min;
- Operating temperature: -5° +50°C;
- Protection degree of electrical devices: IP55;
- Stroke end adjustment to the window frame (in closing): 10mm;
- Parallel connection of two or more ACK4: yes;
- Chain position control: yes;
- Stroke end: encoder;
- Acoustic device that warns of any eventual incorrect installations (buzzer): yes;
- Dimensions: 288,5x83x47,8mm;
- Weight: 1,9kg.
Dimension of the actuator
Dimensions are in millimetres.
Applications of the actuator
Top-hung windows, bottom-hung windows, skylights, roof windows, cupolas.
What is included?
Chain actuator, brackets set for top/bottom hung windows.
