Fischer SX Nylon Anchor with 4 Sector Expansion - Universal Fixings
Fischer SX nylon anchor is among the best universal fasteners for concrete and brick for sale online on Windowo.
- Thanks to the four-sector expansion, the Fischer SX nylon fastening optimally transfers the actions into the support material.
- The high quality nylon used in the production and the typical expansion guarantee a safe and durable installation.
- The collar prevents the fastener from sliding into the hole.
ATTENTION: the number of plugs in the package changes according to the variant you choose.
See the table below to find out more.
Fischer SX with chipboard screw or without: discover all the versions
With Windowo you can have the SX nylon dowel in the
version with screw or without : select the variant you want.

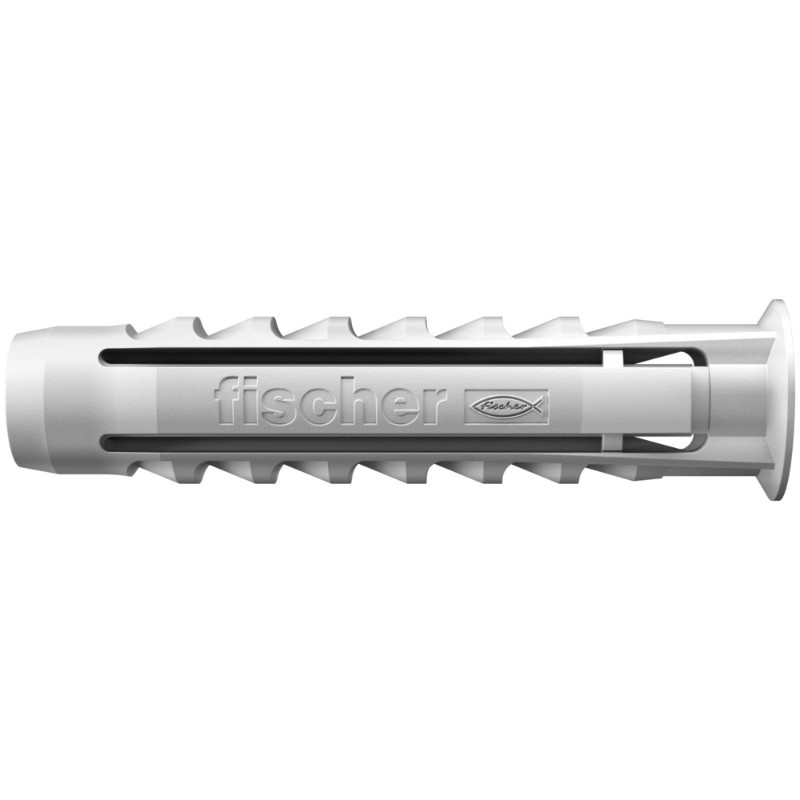

Fischer SX nylon dowel:

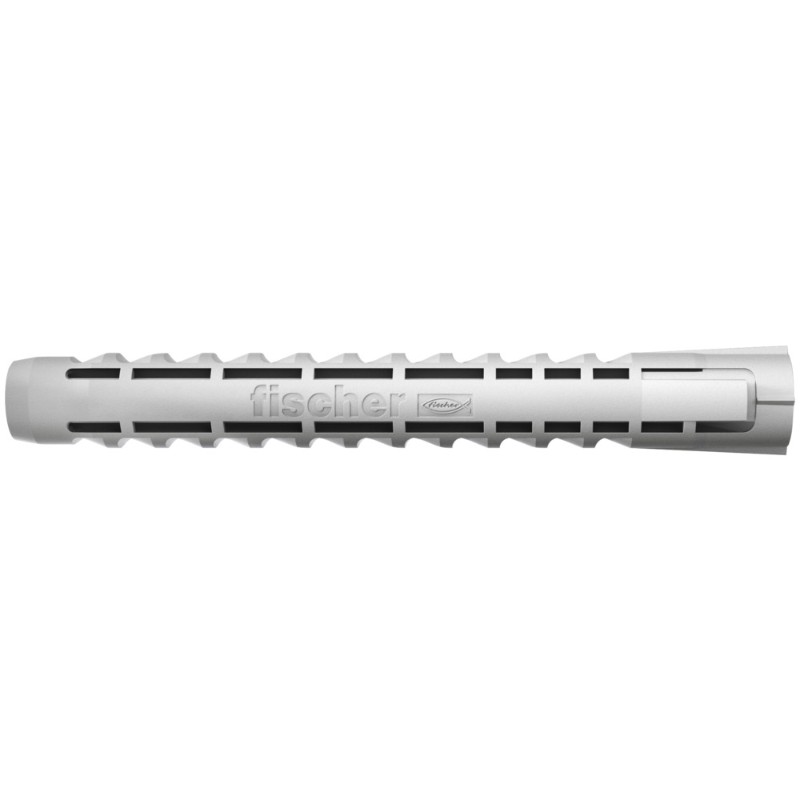

Fischer SX nylon plug with increased length without collar:

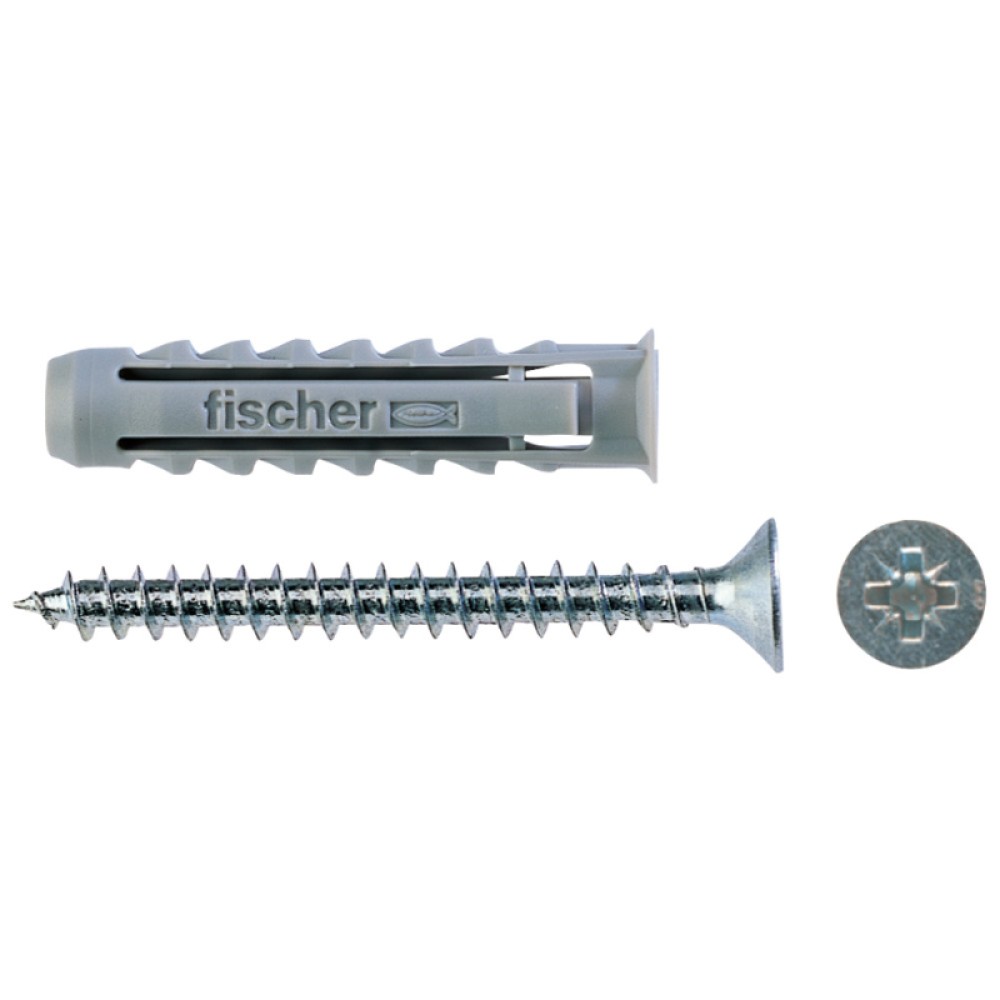

Fischer SX nylon dowel with TSP chipboard screw pozdrive recess:

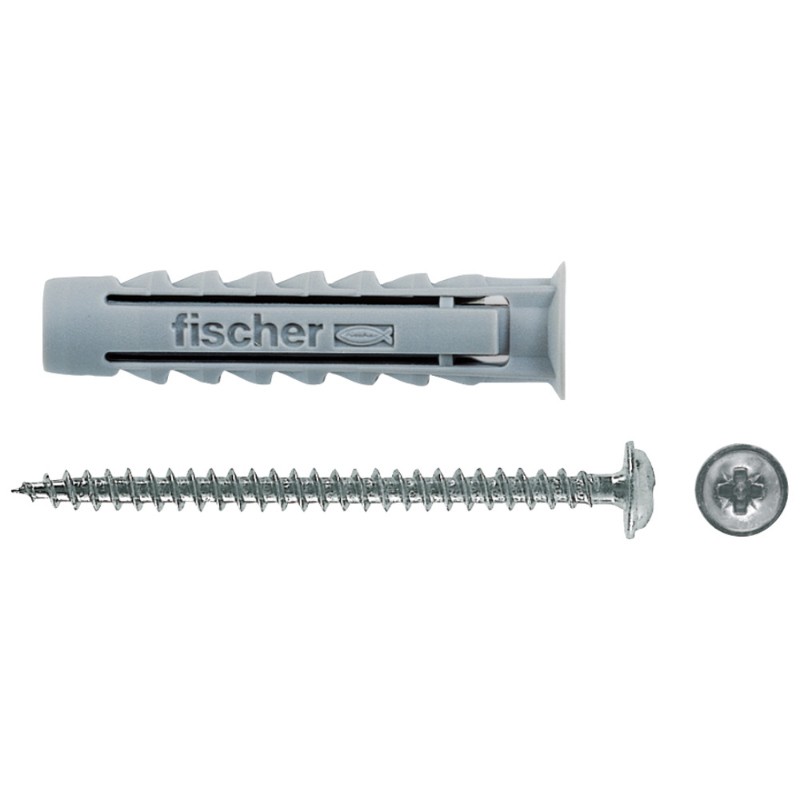

Fischer SX-SP nylon anchor with cross recessed pan head screw:
How many versions of the Fischer SX nylon dowel are there?
In this table you can see the characteristics of the Fischer SX dowels for sale online on Windowo.
| Product |
Art. |
Pieces |
Screw |
Diameter
tip |
Depth
minimum hole |
Length
gusset |
| SX 4 |
70004 |
200 |
No |
4 mm |
30 mm |
20 mm |
| SX 5 |
570005 |
100 |
No |
5 mm |
35 mm |
25 mm |
| SX 6 |
570006 |
100 |
No |
6 mm |
40 mm |
30 mm |
| SX 8 |
570008 |
100 |
No |
8 mm |
50 mm |
40 mm |
| SX 10 |
570010 |
50 |
No |
10 mm |
70 mm |
50 mm |
| SX 12 |
570012 |
25 |
No |
12 mm |
80 mm |
60 mm |
| SX 14 |
570014 |
20 |
No |
14 mm |
90 mm |
70 mm |
| SX 16 |
570016 |
10 |
No |
16 mm |
100 mm |
80 mm |
| SX 6x50 L |
24827 |
100 |
No |
6 mm |
60 mm |
50 mm |
| SX 8x65 L |
24828 |
50 |
No |
8 mm |
75 mm |
65 mm |
| SX 10x80 L |
24829 |
25 |
No |
10 mm |
95 mm |
80 mm |
| SX 5 S |
570020 |
100 |
Yup |
5 mm |
30 mm |
25 mm |
| SX 6 S |
570021 |
100 |
Yup |
6 mm |
40 mm |
30 mm |
| SX 6 S |
71958 |
200 |
Yup |
6 mm |
40 mm |
30 mm |
| SX 8 S |
570022 |
50 |
Yup |
8 mm |
50 mm |
40 mm |
| SX 10 S |
570025 |
25 |
Yup |
10 mm |
70 mm |
50 mm |
| SX 6 SP |
570031 |
100 |
Yup |
6 mm |
40 mm |
30 mm |
| SX 8 SP |
570032 |
50 |
Yup |
8 mm |
50 mm |
40 mm |
What are the advantages of Fischer SX nylon anchors?
- The 4-sector expansion ensures excellent distribution of forces in the material and offers high load-bearing capacities in solid and hollow support materials;
- The smooth part under the head of the fastener does not expand and prevents the formation of expansion forces on the surface of the support material during screwing. This helps prevent damage to tiles and plaster;
- The pronounced collar prevents the fastener from sliding into the hole, facilitating installation;
- With the increased anchoring depths of SX 6x50, 8x65 and 10x80 the fixing is particularly suitable for fixing in hollow materials, cellular concrete and for crossing plaster.
Discover the applications of Fischer SX dowels on building materials
Where can you install the dowel a Fischer SX nylon?
Being a
universal fixing you can use it on the main building materials:
- Concrete;
- Solid brick in brick;
- Solid calcium silicate brick;
- Solid block in lightened concrete;
- Semi-solid brick (vertically perforated) in clay;
- Semi-solid brick (vertically perforated) in calcium silicate;
- Lightweight concrete hollow block;
- Autoclaved aerated concrete (cellular concrete);
- Concrete floors with lightening in brick or similar;
- Natural stone with dense structure;
- Full plasterboard;
- Lamps;
- Wardrobes;
- Motion detectors;
- Baseboard;
- Lightweight shelves;
- Bathroom cabinets;
- Letterboxes;
- TV consoles;
- Grated;
- Folding shutters;
- Bathroom accessories.

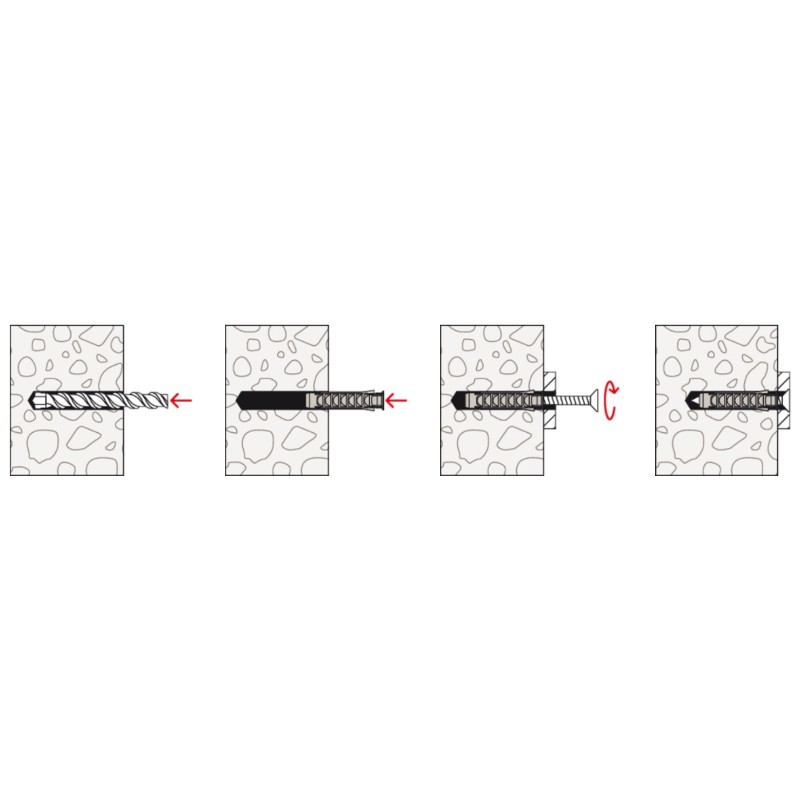

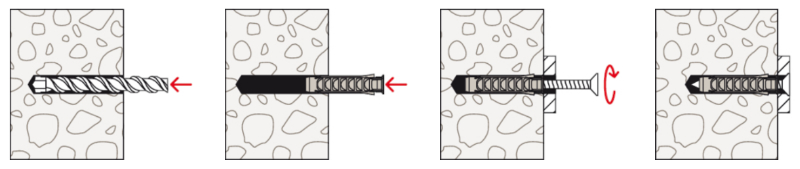

Information on mounting Fischer UX fixings
- The SX Fischer dowel is suitable for through and not through installation;
- When screwing in the screw, the SX fastener expands in four directions, attaching itself firmly to the support material;
- The required length of the screw is given by: length of the anchor + thickness of the object to be fixed;
- Suitable for wood screws and chipboard screws;
- On semi-solid brick supports, drill only in rotation.
Fischer universal fixings at the best prices on Windowo
Fischer manufactures various universal and specific fixing systems for certain uses. The most famous products are certainly the so-called light fasteners such as nylon dowels.
With Windowo you can buy
Fischer fixings online at the best online prices.
