Frame Anchor Screws Cylinder Head 500 Pieces Heicko

Heicko Segatori
Code: Viti Heicko Testa Ridotta
-20%
£ 38,23 £ 47,79
Prices excluding VAT
Delivery time: about 10 working days.
- +

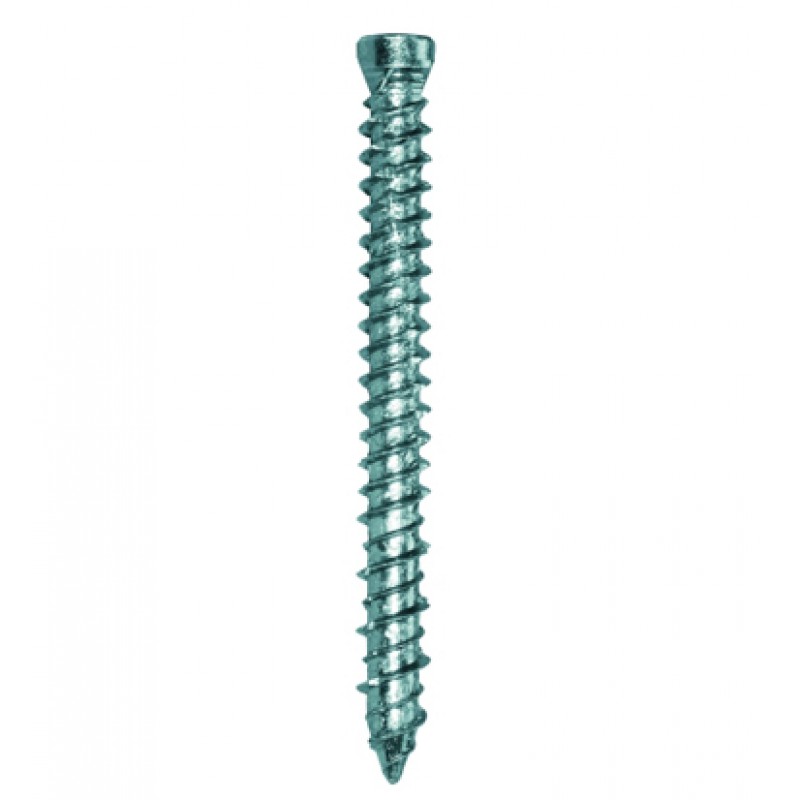

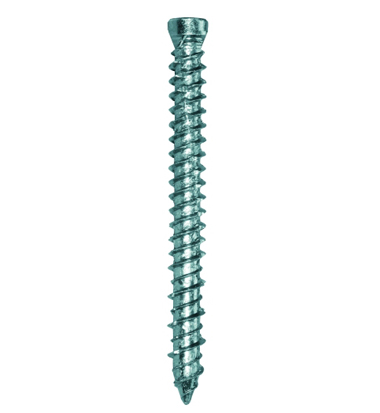

Frame Anchor Screws Cylinder Head 500 Pieces Heicko

Package: 500 pieces.

Characteristics of the product:

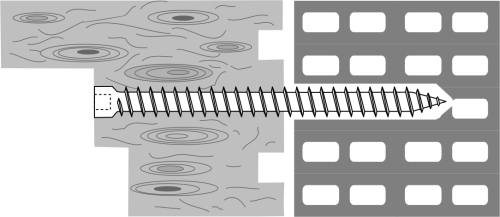

  • Universal use, also for assembly on wood or metal constructions;
  • 8mm cylinder head with ribs;
  • TX30-drive;
  • Double thread;
  • Thread tip with reduced diameter;
  • V-flute;
  • Assembly in concrete with a percussion drill;
  • Pre-drilling Ø 6,0mm.

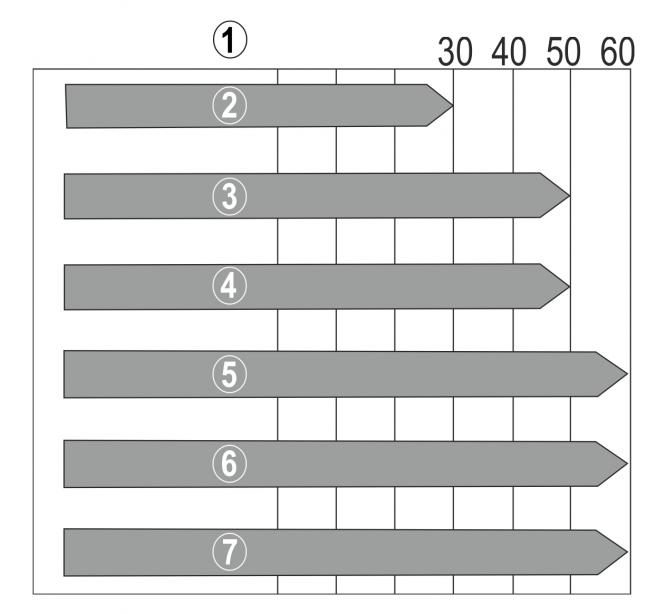

1 - minimum screwing depth / mm
2 - concrete
3 - solid bricks
4 - lime-sand brick
5 - gas concrete
6 - hollow block
7 - pumiced concrete

 Article  Description  Measures (mm)
 1036-7.5-60  Frame anchor screw, cylinder head,
 TX30, blue zinc plated
 7,5x60
 1036-7.5-72  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x72
 1036-7.5-92  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x92
 1036-7.5-112  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x112
 1036-7.5-132  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x132
 1036-7.5-152  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x152
 1036-7.5-182  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x182
 1036-7.5-212  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x212
 1036-7.5-252  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x252
 1036-7.5-302  Frame anchor screw, cylinder head,
​ TX30, blue zinc plated
 7,5x302
