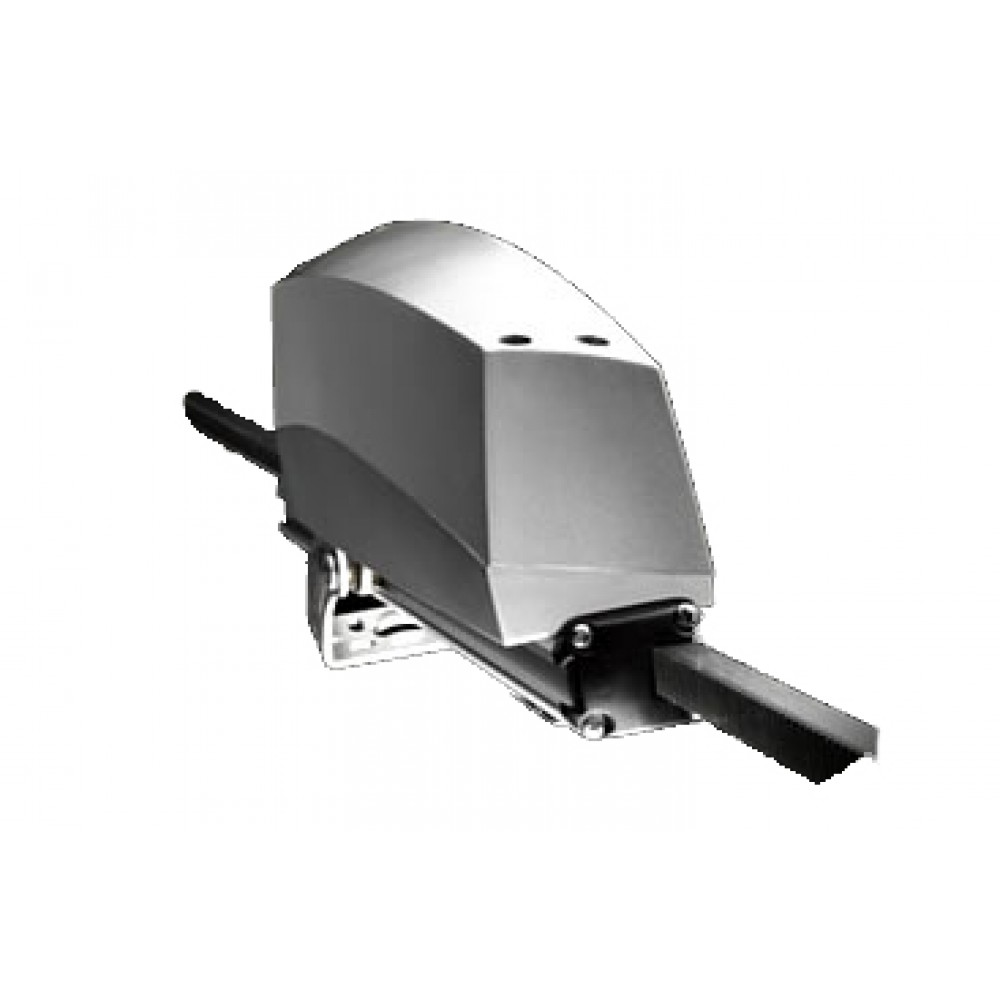

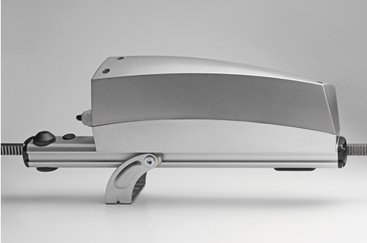

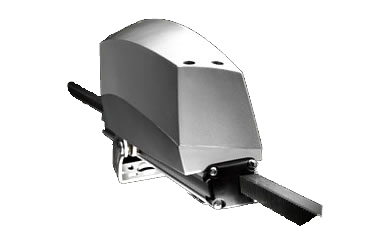

Rack Actuator T80 230V 50Hz Topp 1 Push Point Stroke 18-100cm

Topp
Brands: Topp
Code: T80 230V
-15%
£ 214,99 £ 252,93
Prices excluding VAT
Are you looking for an actuator from the Topp catalog that is not on our site? Contact us and ask for a quote.

Unavailable

Rack Actuator T80 230V 50Hz Topp 1 Push Point Stroke 18-100cm


ATTENTION: This product is no longer available and has been replaced by the S80 230V Topp actuator.
Go to the page of the new actuator that can be purchased on Windowo.

Electrical linear actuator Topp model, with tilting self-aligning movement, with rack, with brackets and accessories for top hung windows


Operation at 230V 50Hz.
Max traction and thrust force 800N.
Limit switch by Diodo hall.
CE marked device.

Technical characteristics:
Power supply voltage: 230V 50Hz;
Max recommended load: 800N;
Strokes: 180 - 230 - 350 - 550 - 750 - 1000mm;
Absorbed current: 0,30A;
Idle translation speed: 12mm/s;
Double electrical insulation: yes;
Service type: S2 of 4min;
Operating temperature: -5° +55°C;
Protection degree of electric devices: IP55;
Parallel connection of two or more actuators: yes;
End of stroke: electronic;
Dimensions: from 571,6 up to 1391,6x68,7x137,4mm.

Applications: top hung windows, domes, louvers.
t80 Topp

What is included?
T80 rack actuator, brackets set for 1 single push point, spare parts for 1 single push point.

Why choose T80 Topp?
  1. Fast installation also without power assured by the steel bracket easily adjustable along the dovetail guides.
  2. High protection degree IP55.
  3. Special rack with very high resistance on top loads.
  4. Innovative design.

T80
