pba Combination Knob-Handle in Stainless Steel AISI 316L

pba
Brands: pba
Code: POMOLO - MANIGLIA
-25%
£ 63,85 £ 85,13
Prices excluding VAT
Are you looking for a handle or a pull handle of the pba catalog not available online? Contact us and ask for a quote.

Right of withdrawal not applicable (Article 59 of the Consumer Code).

- +
pba Combination Knob-Handle in Stainless Steel AISI 316L

Customize your fixed pba knob with variants.
You can choose finish, shape and modality between single and pair of knobs.

Standard finish: satin
On request finish: bright (contact us if you are interested)

Variants lever handle::
Lever handle “L”
Lever handle “U”
Lever handle “T”

Variants knob:
Cylindrical
Spherical angled

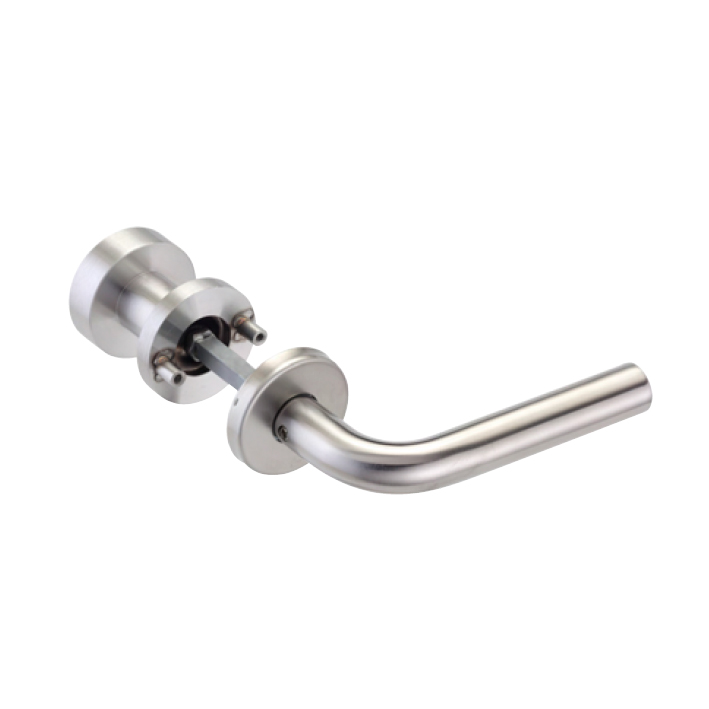

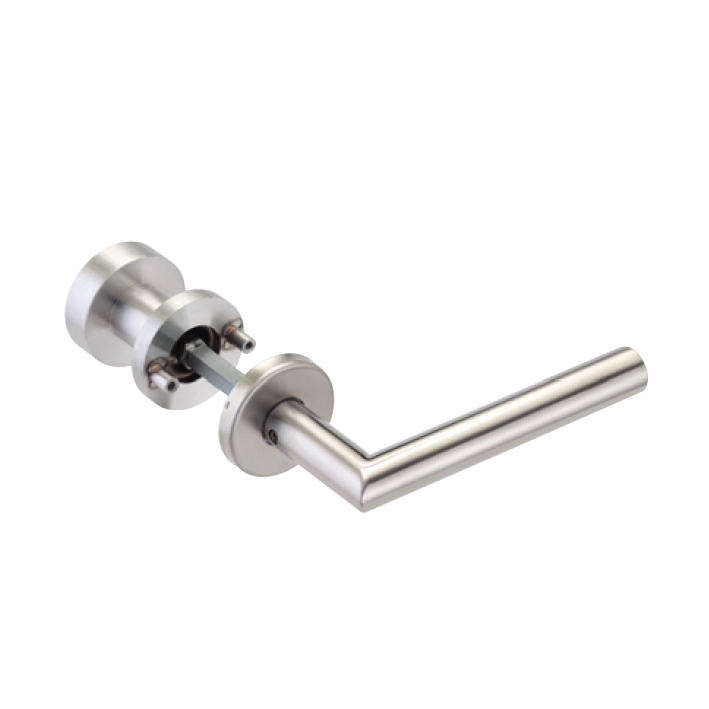

2MM.510.000F Lever handle “L” - Cylindrical
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “L”, length 130 mm.
Lever diameter 20 mm.
Round rose diameter 50 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed cylindrical lever diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

pba Combination Knob-Handle in Stainless Steel AISI 316L

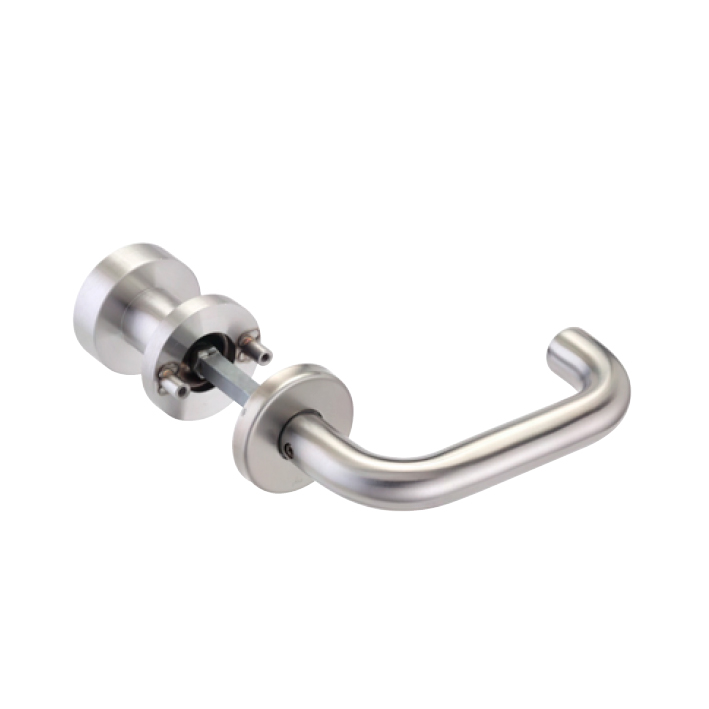

2MM.511.000F Lever handle “U” - Cylindrical
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “U”, length 136 mm.
Lever diameter 20 mm.
Round rose diameter 50 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed cylindrical lever diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

pba Combination Knob-Handle in Stainless Steel AISI 316L

2MM.513.000F Lever handle “T” - Cylindrical
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “T”, length 135 mm.
Lever diameter 20 mm.
Round rose diameter 50 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed cylindrical lever diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

pba Combination Knob-Handle in Stainless Steel AISI 316L

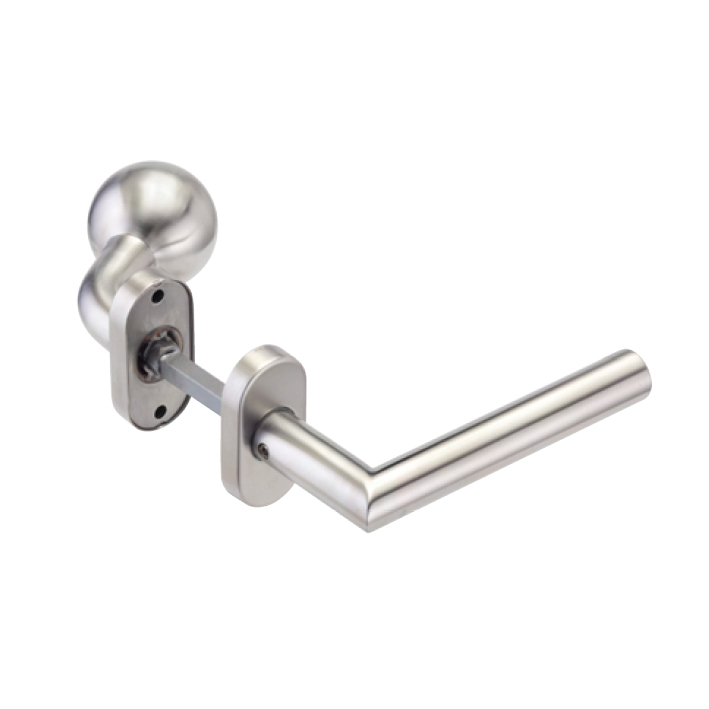

2MM.530.000F Lever handle “L” - Spherical angled
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “L”, length 130 mm.
Lever diameter 20 mm.
Oval rose diameter 32 mm x 62 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed spherical lever with angled support diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

pba Combination Knob-Handle in Stainless Steel AISI 316L

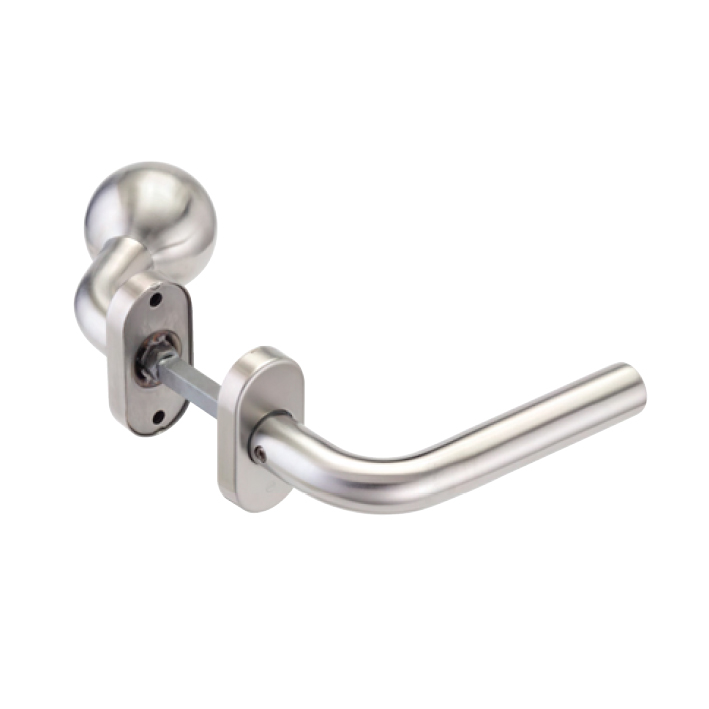

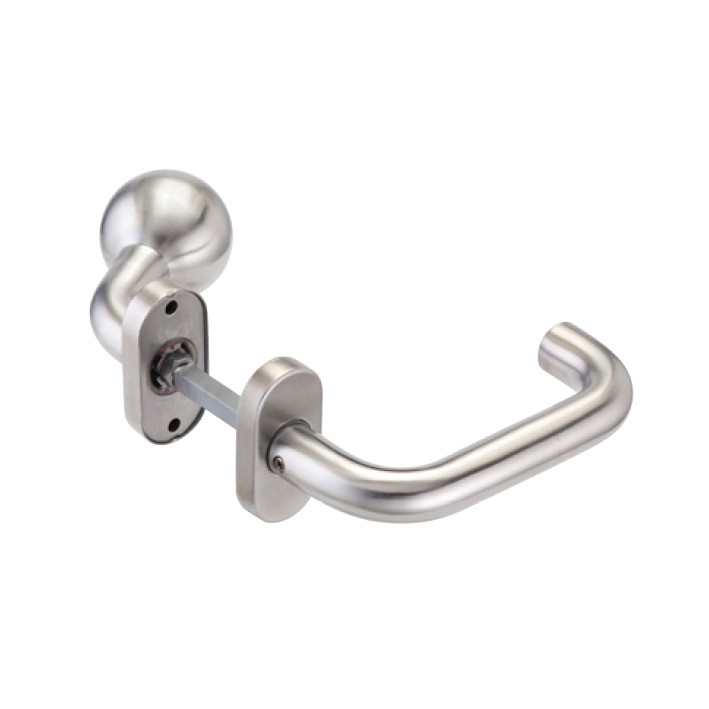

2MM.531.000F Lever handle “U” - Spherical angled
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “U”, length 136 mm.
Lever diameter 20 mm.
Oval rose diameter 32 mm x 62 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed spherical lever with angled support diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

pba Combination Knob-Handle in Stainless Steel AISI 316L

2MM.533.000F Lever handle “T” - Spherical angled
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “T”, length 135 mm.
Lever diameter 20 mm.
Oval rose diameter 32 mm x 62 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed spherical lever with angled support diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

pba Combination Knob-Handle in Stainless Steel AISI 316L

pba: the italian company for inox handles.
If you’ve opened a door, you’re bound to have seen a spectacular empty urban setting, or you may have strolled through environments free of annoying architectural barriers that block your way, and if you’ve done so – you’ve grasped our idea. We’ve made our name in AISI 316L stainless steel, the hardest, most resistant and elastic of steels, and in polyamide 6 thermoplastic resin, the noblest of plastics. We develop our themes: handles for doors and windows, pull handles, pull handles with lock, balustrades, ischial support benches and supports for “living without barriers”, convinced that objects create an environment, its temperament, illusions, and possibilities. Forms “inform” and have logical effects, changing the world and establishing priorities. For us the priority is that – here and now – beauty is only real if it is accessible to all.

Exclusively manufactured in Italy.
